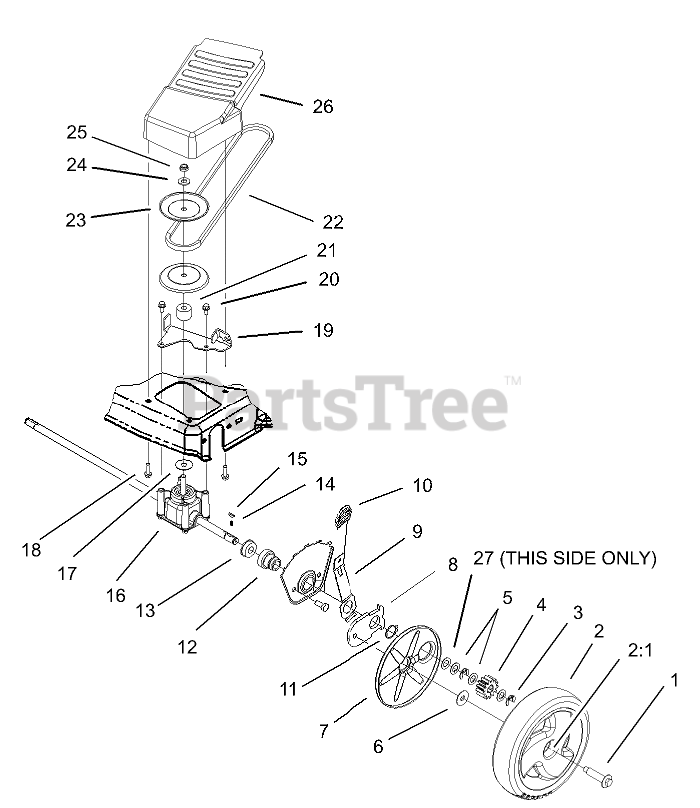

20016 - Toro 22" Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) FRONT AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

FRONT AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 105-1815

Wheel Gear ASM

$56.99

$

In Stock, Qty 11

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-8670

Gear-Pinion, 13t

$24.99

$

In Stock, only 4 left!

0

5

Toro 105-6840

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

6

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

7

Toro 105-1838

COVER
(Superseded to 127-6840)

$5.99

$

In Stock, Qty 20+

0

8

Toro 105-1807

ARM-PIVOT, FRONT
(Superseded to 137-9128)

$7.49

$

In Stock, Qty 20+

0

9

Toro 105-1809

Arm-Spring

$11.99

$

In Stock, Qty 13

0

10

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

12

Toro 104-8698

RETAINER-BEARING, HOC

$11.99

$

In Stock, Qty 20+

0

13

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

14

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

15

$2.49

$

In Stock, Qty 20+

0

16

Toro 106-3955

TRANSMISSION ASM

$128.99

$

In Stock, only 3 left!

0

17

Toro 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 20+

0

18

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

19

Toro 105-1833-03

BRACKET-PIVOT, FWD

$18.99

$

In Stock, only 3 left!

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 92-5791

SPACER

$10.99

$

In Stock, Qty 17

0

22

Toro 91-2258

BELT-V

$18.99

$

In Stock, Qty 20+

0

23

Toro 104-8691

Pulley-Half, Front

$16.99

$

In Stock, only 2 left!

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

26

Toro 105-1839

Cover-Belt, Front

$20.99

$

Usually ships in 3-6 days

0

27

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0
