20014 - Toro 22" Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) ENGINE ASSEMBLY LEV120-362004A Parts Diagram

22" Recycler Walk-Behind Mower

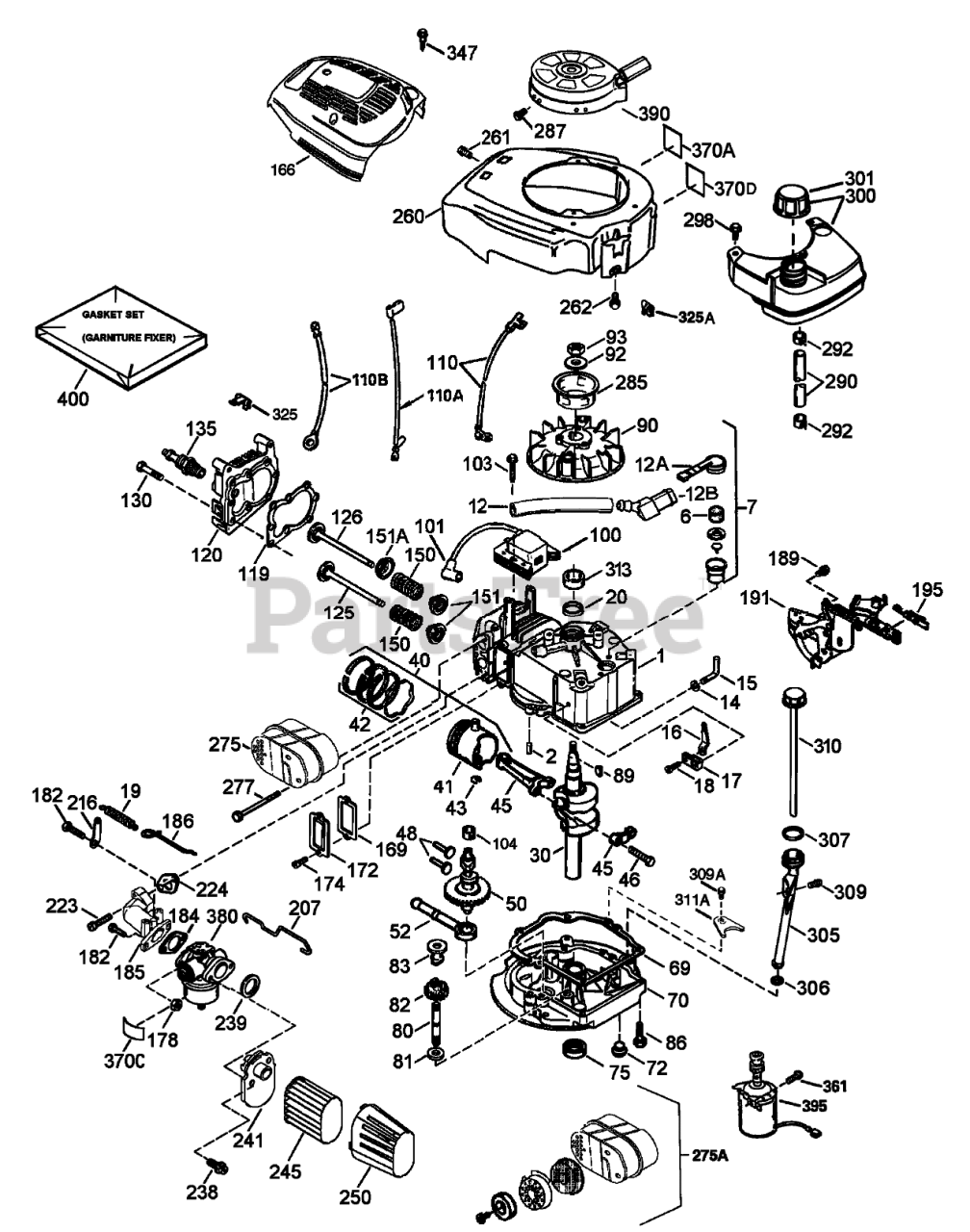

ENGINE ASSEMBLY LEV120-362004A Parts Diagram

  • Title

1

Tecumseh 37465

Cylinder ASM (Incl. Ref. #2, 20 and 150)

Note: Original Tecumseh Part

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

6

Tecumseh 33734

Element-Breather

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 11

0

7

Tecumseh 36557

Breather ASM (Incl. Ref. #6 and 12A)

Note: Original Tecumseh Part

$

$

Not available

12

Tecumseh 36775

Tube-Breather
(Superseded to 37944)

Note: Original Tecumseh Part

$2.99

$

In Stock, Qty 8

0

12A

Tecumseh 36558

Breather Cover and Tube (Incl. Ref. #12B)

Note: Original Tecumseh Part

$10.99

$

In Stock, only 1 left!

0

12B

Tecumseh 36694

Elbow-Tube, Breather

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 14

0

14

Tecumseh 28277

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 30589

Governor Rod (Incl. Ref. #14)

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 34839A

Lever-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

17

Tecumseh 31335

Clamp-Lever, Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 651018

Screw (T-15, 8-32 x 19/64)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

19

Tecumseh 36281

Spring-Extension

Note: Original Tecumseh Part

$1.49

$

In Stock, only 2 left!

0

20

Tecumseh 32600

Seal-Oil

Note: Original Tecumseh Part

$

$

Not available

30

Tecumseh 37692

Crankshaft

Note: Original Tecumseh Part

$125.99

$

Usually ships in 3-12 days

0

40

Tecumseh 40027

Piston, Pin and Ring Set (Std.)
(Superseded to 40044)

Note: Original Tecumseh Part

$77.99

$

In Stock, only 1 left!

0

41

Tecumseh 40042

Piston and Pin ASM (Std.) (Incl. Ref. #43)
(Superseded to 40044)

Note: Original Tecumseh Part

$77.99

$

In Stock, only 1 left!

0

42

Tecumseh 40006

Ring Set (STD)

Note: Original Tecumseh Part

$42.99

$

In Stock, only 1 left!

0

43

Tecumseh 20381

Ring-Retaining, Piston Pin

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 36777

Connecting Rod ASM (Incl. Ref. #46)
(Superseded to 36777A)

Note: Original Tecumseh Part

$41.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610A

Bolt-Rod, Connecting

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Lifter-Valve

Note: Original Tecumseh Part

$5.49

$

In Stock, only 2 left!

0

50

Tecumseh 37460

Camshaft (Exhaust MCR) (Incl. Ref. #104)

Note: Original Tecumseh Part

$83.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29914

Oil Pump ASM

Note: Original Tecumseh Part

$9.49

$

Usually ships in 3-12 days

0

69

Tecumseh 37609

Gasket-Flange, Mounting

Note: Original Tecumseh Part

$2.99

$

Usually ships in 3-12 days

0

69

Tecumseh 37609

Gasket-Flange, Mounting

Note: Included in Repair Kit No. 632809

$2.99

$

Usually ships in 3-12 days

0

70

Tecumseh 37608

Flange-Mounting (Incl. Ref. #72-83, 306, 309A and 311A)
(Superseded to 37608A)

Note: Original Tecumseh Part

$77.99

$

Usually ships in 3-12 days

0

72

Tecumseh 37614

Plug-Drain, Oil

Note: Original Tecumseh Part

$5.99

$

In Stock, only 2 left!

0

75

Tecumseh 27897

Seal-Oil

Note: Original Tecumseh Part

$8.49

$

In Stock, Qty 14

0

80

Tecumseh 30574A

Shaft-Governor

Note: Original Tecumseh Part

$7.49

$

In Stock, only 2 left!

0

81

Tecumseh 30590A

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 30591

Governor Gear ASM (Incl. Ref. #81)

Note: Original Tecumseh Part

$13.99

$

In Stock, only 2 left!

0

83

Tecumseh 30588A

Spool-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611004

Key-Flywheel

Note: Original Tecumseh Part

$1.49

$

In Stock, only 4 left!

0

90

Tecumseh 37787

Flywheel
(Superseded to 611312)

Note: Original Tecumseh Part

$

$

Not available

92

Tecumseh 650815

Washer-Belleville

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443C

Ignition-State, Solid
(Superseded to 34443D)

Note: Original Tecumseh Part

$44.99

$

In Stock, only 2 left!

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Original Tecumseh Part

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

104

Tecumseh 37480

Bushing-Cam

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 37047

Wire-Ground

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

110A

Tecumseh 36953

Wire ASM

Note: Original Tecumseh Part

$

$

Not available

110B

Tecumseh 36954

Wire ASM

Note: Original Tecumseh Part

$5.49

$

Usually ships in 3-12 days

0

119

Tecumseh 36787

Gasket-Cylinder Head
(Superseded to 37796)

Note: Original Tecumseh Part

$9.99

$

In Stock, only 2 left!

0

119

Tecumseh 36787

Gasket-Cylinder Head
(Superseded to 37796)

Note: Included in Repair Kit No. 632809

$9.99

$

In Stock, only 2 left!

0

120

Tecumseh 36825

Head-Cylinder
(Superseded to 37714)

Note: Original Tecumseh Part

$

$

Not available

125

Tecumseh 36780

Exhaust Valve (1/32"" OS) (Incl. Ref. # 151)

Note: Original Tecumseh Part

$

$

Currently unavailable

125

Tecumseh 37288

Exhaust Valve (Std.) (Incl. Ref. #151)

Note: Original Tecumseh Part

$

$

Not available

126

Tecumseh 37289

Intake Valve (Std.) (Incl. Ref. #151 and 151A)

Note: Original Tecumseh Part

$

$

Not available

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

Note: Original Tecumseh Part

$3.99

$

In Stock, Qty 20+

0

150

Tecumseh 31672

Spring-Valve

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap-Valve, Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

151A

Tecumseh 40017

Seal-Valve, Intake

Note: Original Tecumseh Part

$

$

Not available

166

Tecumseh 37694

Shroud-Engine
(Superseded to 38019)

Note: Original Tecumseh Part

$72.99

$

In Stock, only 1 left!

0

169

Tecumseh 36783

Gasket-Cover, Valve

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

169

Tecumseh 36783

Gasket-Cover, Valve

Note: Included in Repair Kit No. 632809

$3.99

$

In Stock, only 1 left!

0

172

Tecumseh 36784

Cover-Valve

Note: Original Tecumseh Part

$5.49

$

In Stock, only 2 left!

0

174

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 10

0

178

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

182

Tecumseh 6201

Screw (1/4-28 x 7/8)

Note: Original Tecumseh Part

$

$

Not available

184

Tecumseh 26756

Gasket

Note: Original Tecumseh Part

$2.99

$

Usually ships in 3-12 days

0

184

Tecumseh 26756

Gasket

Note: Included in Repair Kit No. 632809

$2.99

$

Usually ships in 3-12 days

0

185

Tecumseh 37466

Pipe-Intake

Note: Original Tecumseh Part

$17.99

$

In Stock, only 2 left!

0

186

Tecumseh 32653

Link-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

189

Tecumseh 650839

Screw (1/4-20 x 3/8)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

191

Tecumseh 36559

Bracket-Brake, S.E. (Incl. Ref. #195)
(Superseded to 36559B)

Note: Original Tecumseh Part

$36.99

$

In Stock, only 1 left!

0

195

Tecumseh 610973

Terminal

Note: Original Tecumseh Part

$3.99

$

In Stock, only 4 left!

0

207

Tecumseh 34336A

Link-Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

216

Tecumseh 33086

Lever-Adjusting, R P M

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

223

Tecumseh 650451

Screw (1/4-20 x 1)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

224

Tecumseh 36786

Gasket-Pipe, Intake

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 13

0

224

Tecumseh 36786

Gasket-Pipe, Intake

Note: Included in Repair Kit No. 632809

$1.99

$

In Stock, Qty 13

0

238

Tecumseh 650932

Screw (10-32 x 49/64)

Note: Original Tecumseh Part

$2.99

$

In Stock, Qty 5

0

239

Tecumseh 34338

Gasket-Cleaner, Air

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

239

Tecumseh 34338

Gasket-Cleaner, Air

Note: Included in Repair Kit No. 632809

$1.99

$

In Stock, only 4 left!

0

241

Tecumseh 36919

Collar-Cleaner, Air

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

245

Tecumseh 36905

Filter-Cleaner, Air (Paper)

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 20+

0

250

Tecumseh 37122

Cover-Cleaner, Air

Note: Original Tecumseh Part

$

$

Not available

260

Tecumseh 37693A

Housing-Blower

Note: Original Tecumseh Part

$39.99

$

In Stock, only 1 left!

0

261

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 10

0

262

Tecumseh 650831

Screw (1/4-20 x 1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

275

Tecumseh 37498

Muffler

Note: Original Tecumseh Part

$

$

Not available

275A

Tecumseh 37530

Spark Arrestor Kit

Note: Original Tecumseh Part

$

$

Not available

277

Tecumseh 650988

Screw (1/4-20 x 2-9/32)

Note: Original Tecumseh Part

$4.49

$

In Stock, only 3 left!

0

285

Tecumseh 35000A

Cup-Starter

Note: Original Tecumseh Part

$9.49

$

In Stock, only 1 left!

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

Note: Original Tecumseh Part

$1.49

$

Usually ships in 3-12 days

0

290

Tecumseh 29774

Line-Fuel (8.62)

Note: Original Tecumseh Part

$34.99

$

In Stock, Qty 5

0

292

Tecumseh 26460

Clamp-Line, Fuel

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 14

0

298

Tecumseh 28763

Screw (10-32 x 35/64)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 35586A

Fuel Tank ASM (Incl. Ref. #292 and 301)
(Superseded to 37947)

Note: Original Tecumseh Part

$

$

Not available
