20013 - Toro 22" Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

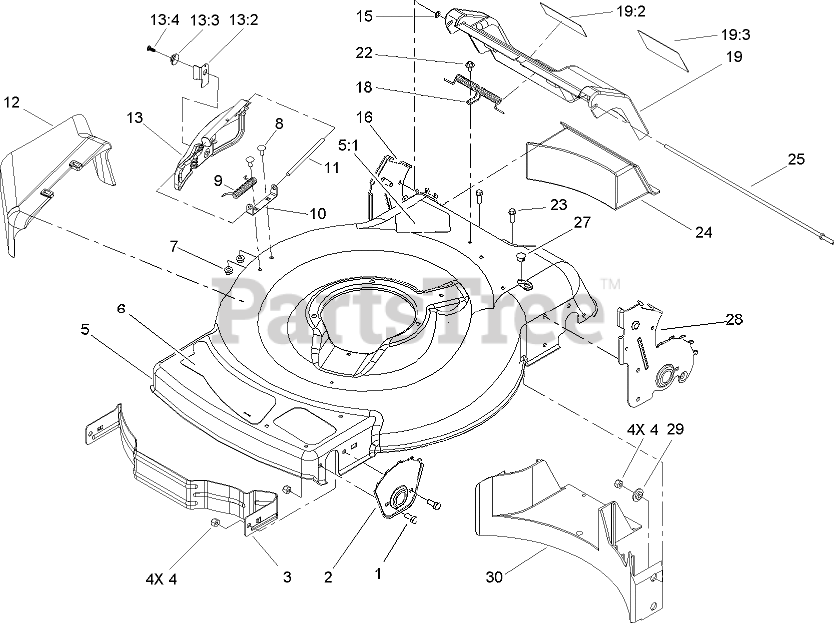

DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

2

Toro 105-1808-03

Plate-HOC, Front

$

$

Not available

3

Toro 104-8694-03

Baffle-Front

$112.99

$

In Stock, only 3 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 104-7916

HOUSING

$

$

Not available

5:1

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

6

Toro 105-1297

Decal-Deck

$

$

Not available

7

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

8

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

10

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$12.99

$

In Stock, only 1 left!

0

11

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 15

0

12

Toro 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 5

0

13

Toro 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, only 1 left!

0

13:2

Toro 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

13:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

13:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

15

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

16

Toro 107-0790

RH REAR HOC PLATE ASM
(Superseded to 112-6441)

$

$

Not available

18

Toro 105-3032

Spring-Door, Rear

$21.99

$

In Stock, only 1 left!

0

19

Toro 105-1324

REAR DOOR ASM

$96.99

$

Usually ships in 3-6 days

0

19:2

Toro 104-7909

DECAL-WARNING

$

$

Not available

19:3

Toro 104-7908

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

22

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Toro 105-1842

Plug-Discharge, Rear

$12.99

$

Usually ships in 3-6 days

0

25

Toro 105-1827

Rod-Pivot, Rear Door

$12.99

$

Usually ships in 3-6 days

0

27

Toro 104-9369

Plug-Dome

$1.49

$

In Stock, only 1 left!

0

28

Toro 107-0783

LH REAR HOC PLATE ASM
(Superseded to 112-6443)

$31.99

$

Usually ships in 3-6 days

0

29

Toro 105-3006

Washer-Stepped

$2.99

$

In Stock, only 1 left!

0

30

Toro 105-1834

Baffle-Rear

$54.99

$

Usually ships in 3-6 days

0
