20012 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) BAIL AND HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

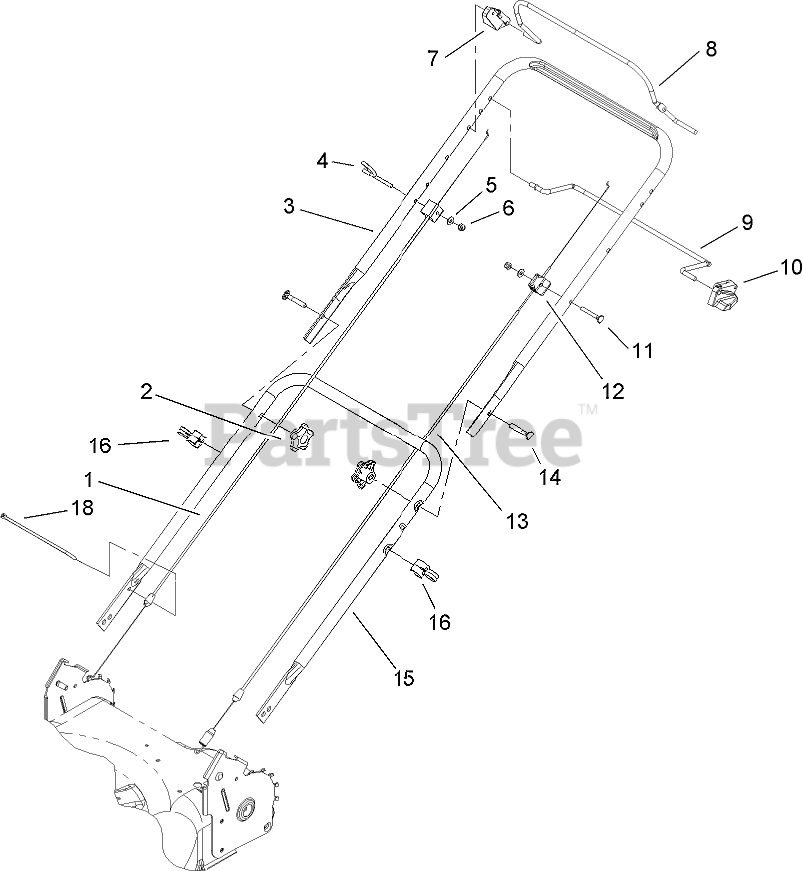

BAIL AND HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8677

Cable-Brake

$20.99

$

In Stock, only 1 left!

0

2

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 14

0

3

Toro 104-8680-05

Handle-Upper

$74.99

$

In Stock, only 1 left!

0

4

Toro 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 107-0757

STOP-PIVOT

$5.49

$

In Stock, only 1 left!

0

8

Toro 105-6800-03

Bail-Brake

$25.99

$

Usually ships in 3-6 days

0

9

Toro 105-1837-03

Bail-Control

$41.99

$

In Stock, only 3 left!

0

10

Toro 104-8682

Stop-Pivot

$19.99

$

In Stock, only 2 left!

0

11

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

12

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

13

Toro 105-1845

Cable-Traction

$27.99

$

In Stock, only 3 left!

0

14

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, only 2 left!

0

15

Toro 107-0784-05

HANDLE-LOWER
(Superseded to 112-6440-05)

$67.99

$

In Stock, only 1 left!

0

16

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
