20012 - Toro 22" Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) 2 BAIL HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

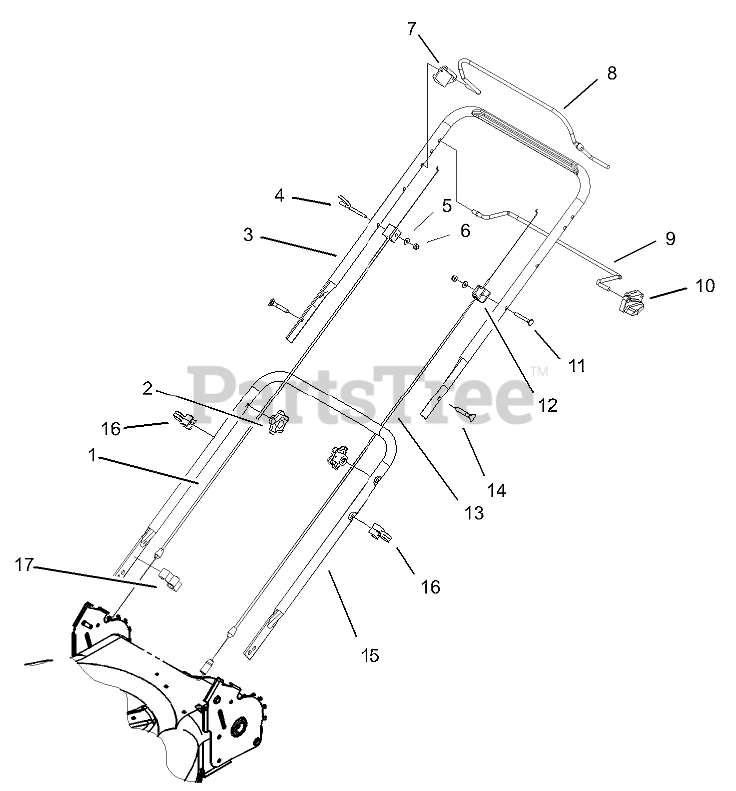

2 BAIL HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8677

Cable-Brake

$18.99

$

In Stock, Qty 18

0

2

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

3

Toro 104-8680-05

Handle-Upper

$74.99

$

In Stock, Qty 7

0

4

Toro 105-3049

GUIDE-ROPE (Serial Range 230600000-230612003)

$

$

Not available

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

7

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

8

Toro 105-6800-03

Bail-Brake (only on: 20012, 20016)

$25.99

$

Usually ships in 3-6 days

0

8

Toro 106-3991

Bail-Brake (only on: 20019)

$56.99

$

Usually ships in 3-6 days

0

9

Toro 106-3990

Bail-Sp Control (only on: 20019)

$

$

Not available

9

Toro 105-1837-03

Bail-Control (only on: 20012, 20016)

$41.99

$

In Stock, only 3 left!

0

10

Toro 104-8682

Stop-Pivot

$19.99

$

In Stock, only 4 left!

0

11

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 8

0

13

Toro 105-1845

Cable-Traction

$23.99

$

In Stock, Qty 20+

0

14

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

15

Toro 106-6822-05

HANDLE-LOWER
(Superseded to 112-6440-05)

$67.99

$

In Stock, only 1 left!

0

16

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 20+

0

17

Toro 105-6830

Guide-Cable

$

$

Not available
