20011 (R-21 OS) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

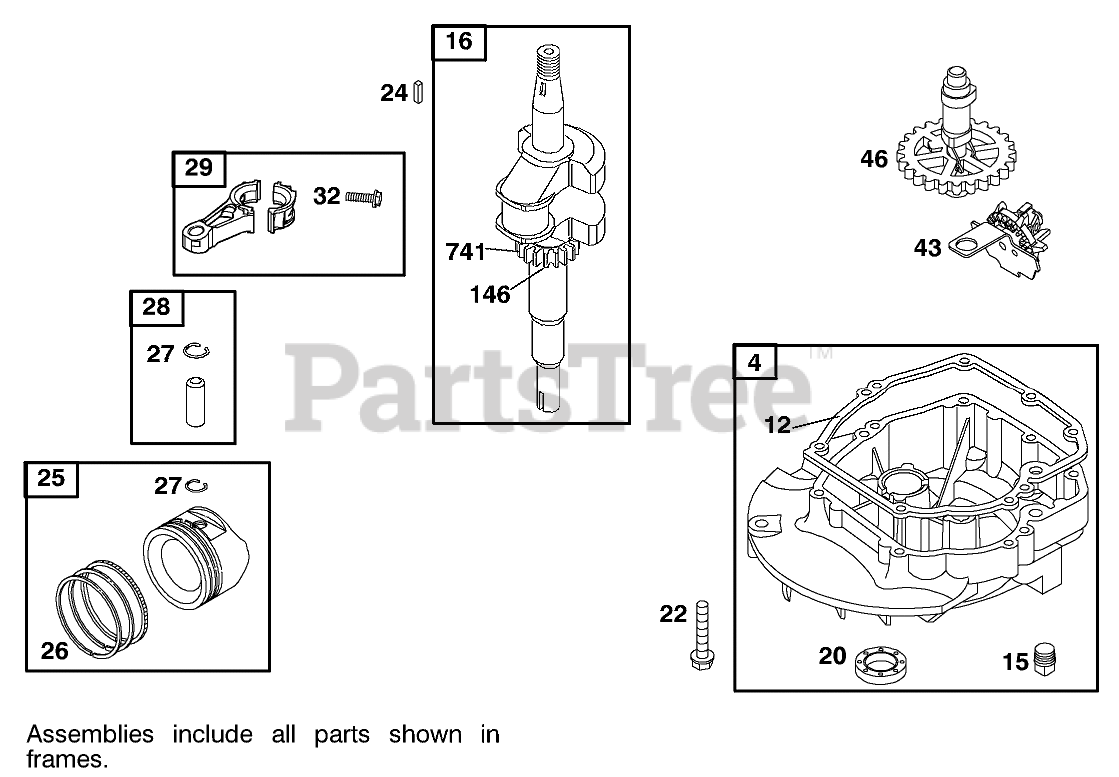

ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

  • Title

4

Briggs & Stratton 499619

Sump?Engine
(Superseded to 493279)

$120.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-See Ref. 358.

$5.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94880

Oil Drain Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 694153

Crankshaft

$64.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$7.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-See Ref. 358.

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94612

Screw Hex. Head
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499627

Piston ASM (Standard)
(Superseded to 799063)

$91.99

$

In Stock, Qty 5

0

Briggs & Stratton 692788

Piston Assembly (.010 Oversize)

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692789

Piston ASM (.020in Oversize)
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692790

Piston Assembly (.030 Oversize)

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

Ring Set (Standard)

$53.99

$

In Stock, only 4 left!

0

Briggs & Stratton 692785

Ring Set (.010in Oversize)

$

$

Not available

Briggs & Stratton 692786

Ring Set (.020in Oversize)

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692787

Ring Set (.030in Oversize)

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263190

Lock-Piston Pin
(Superseded to 691866)

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

Screw-Hex
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

43

Briggs & Stratton 493737

Oil Slinger
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 692453

Camshaft
(Superseded to 694035)

$

$

Not available

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0
