20011 (R-21 OS) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

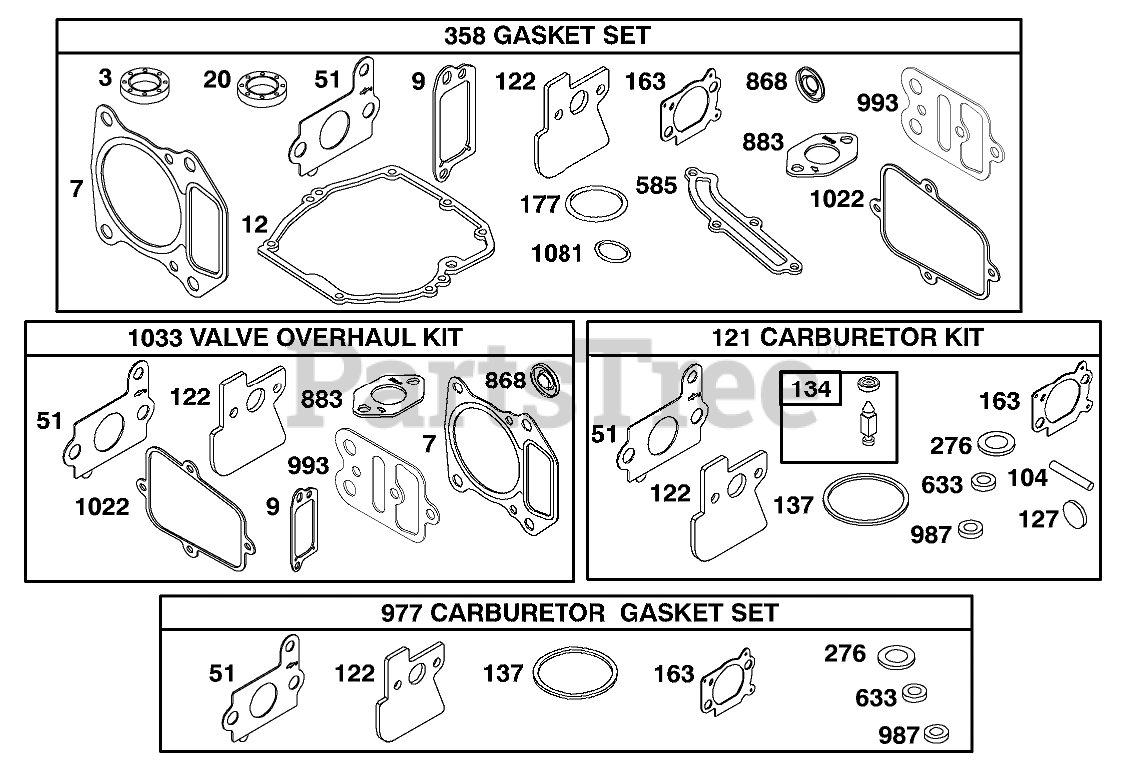

ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, Qty 17

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 273240

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$9.99

$

In Stock, Qty 7

0

7

Briggs & Stratton 273240

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Gasket Set-See Ref. 358.

$9.99

$

In Stock, Qty 7

0

7

Briggs & Stratton 273240

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Carburetor Kit-See Ref. 121.

$9.99

$

In Stock, Qty 7

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Carburetor Kit-See Ref. 121.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$5.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-See Ref. 358.

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-See Ref. 358.

$7.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$7.99

$

In Stock, Qty 20+

0

51

Toro 272248

Intake Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

51

Toro 272248

Intake Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

51

Toro 272248

Intake Gasket

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Kit-See Ref. 121.

$3.99

$

In Stock, Qty 10

0

177

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, Qty 20+

0

177

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$5.49

$

In Stock, Qty 20+

0

121

Briggs & Stratton 692703

Carburetor Overhaul Kit
(Superseded to 792383)

$28.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$14.99

$

In Stock, only 1 left!

0

127

Welch Plug (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Kit-See Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

163

Briggs & Stratton 273364

Air Cleaner Gasket
(Superseded to 691894)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$4.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 273364

Air Cleaner Gasket
(Superseded to 691894)

Note: Included in Carburetor Kit-See Ref. 121.

$4.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 273364

Air Cleaner Gasket
(Superseded to 691894)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$4.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 273364

Air Cleaner Gasket
(Superseded to 691894)

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, Qty 7

0

276

Washer(Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

276

Washer(Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

358

Briggs & Stratton 692702

Gasket Set
(Superseded to 795442)

$90.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Gasket Set-See Ref. 358.

$6.99

$

In Stock, only 1 left!

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$6.99

$

In Stock, only 1 left!

0

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

868

Briggs & Stratton 498592

Valve Seal
(Superseded to 795440)

Note: Included in Carburetor Kit-See Ref. 121.

$13.99

$

In Stock, Qty 9

0

868

Briggs & Stratton 498592

Valve Seal
(Superseded to 795440)

Note: Included in Gasket Set-See Ref. 358.

$13.99

$

In Stock, Qty 9

0

868

Briggs & Stratton 498592

Valve Seal
(Superseded to 795440)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 273348

Exhaust Gasket
(Superseded to 691893)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$4.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 273348

Exhaust Gasket
(Superseded to 691893)

Note: Included in Gasket Set-See Ref. 358.

$4.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 273348

Exhaust Gasket
(Superseded to 691893)

Note: Included in Carburetor Kit-See Ref. 121.

$4.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 692704

Gasket Set?Carburetor
(Superseded to 792383)

$28.99

$

In Stock, only 1 left!

0

987

Throttle Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

987

Throttle Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

993

Briggs & Stratton 273346

Gasket
(Superseded to 694088)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$8.49

$

In Stock, Qty 16

0

993

Briggs & Stratton 273346

Gasket
(Superseded to 694088)

Note: Included in Carburetor Kit-See Ref. 121.

$8.49

$

In Stock, Qty 16

0

993

Briggs & Stratton 273346

Gasket
(Superseded to 694088)

Note: Included in Gasket Set-See Ref. 358.

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 273787

Rocker Cover Gasket
(Superseded to 691890)

Note: Included in Gasket Set-See Ref. 358.

$7.99

$

In Stock, Qty 5

0

1022

Briggs & Stratton 273787

Rocker Cover Gasket
(Superseded to 691890)

Note: Included in Carburetor Kit-See Ref. 121.

$7.99

$

In Stock, Qty 5

0

1022

Briggs & Stratton 273787

Rocker Cover Gasket
(Superseded to 691890)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$7.99

$

In Stock, Qty 5

0

1033

Briggs & Stratton 692705

Valve Overhaul Kit
(Superseded to 795441)

$70.99

$

Usually ships in 2-12 days

0

1081

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, Qty 7

0

1081

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$4.99

$

In Stock, Qty 7

0
