20009 - Toro 22" Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ENGINE ASSEMBLY TECUMSEH LV195EA-362003B Parts Diagram

22" Recycler Walk-Behind Mower

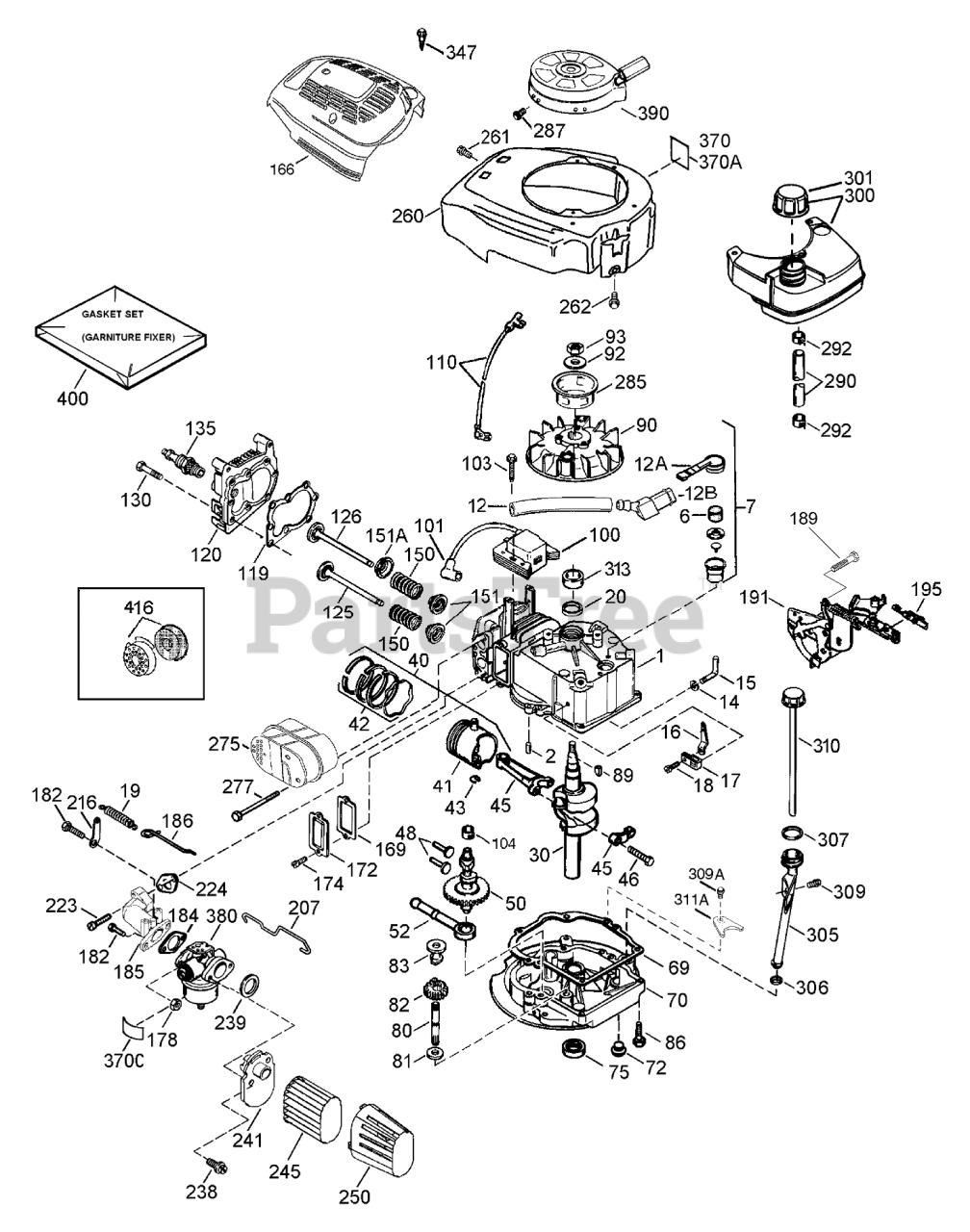

ENGINE ASSEMBLY TECUMSEH LV195EA-362003B Parts Diagram

  • Title
301

Tecumseh 36246

Cap-Fuel
(Superseded to 37844)

Note: Original Tecumseh Part

$5.99

$

In Stock, Qty 6

0

305

Tecumseh 35647

Tube-Fill, Oil
(Superseded to 35647A)

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

306

Tecumseh 37610

O-Ring

Note: Original Tecumseh Part

$2.99

$

In Stock, Qty 10

0

306

Tecumseh 37610

O-Ring

Note: Included in Gasket Kit No. 37613

$2.99

$

In Stock, Qty 10

0

307

Tecumseh 35499

O-Ring

Note: Original Tecumseh Part

$1.49

$

In Stock, only 3 left!

0

309

Tecumseh 650562

Screw (10-32 x 1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 9

0

309A

Tecumseh 650783

Screw (10-24 x 3/4)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

310

Tecumseh 35648

Dipstick

Note: Original Tecumseh Part

$10.99

$

In Stock, only 1 left!

0

311A

Tecumseh 37611

Bracket-Holddown

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

313

Tecumseh 34080

Spacer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

347

Tecumseh 650898A

Screw (10-32 x 27/32)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

370

Tecumseh 35977

Decal-Warning

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 6

0

370A

Tecumseh 36261

Decal-Lubrication

Note: Original Tecumseh Part

$

$

Not available

370C

Tecumseh 37695

Decal-Primer
(Superseded to 37318)

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

380

Tecumseh 640303

Carburetor (Incl. Ref. #184)
(Superseded to 640350)

Note: Original Tecumseh Part

$109.99

$

In Stock, only 1 left!

0

390

Tecumseh 590739

Rewind Starter ASM

Note: Original Tecumseh Part

$62.99

$

Usually ships in 3-12 days

0

400

Tecumseh 37613

Gasket Set
(Superseded to 37613A)

Note: Original Tecumseh Part

$16.99

$

In Stock, Qty 9

0

416

Tecumseh 37530

Spark Arrestor Kit

Note: Original Tecumseh Part

$

$

Not available

Tecumseh 750876

Shortblock-Replacement

Note: Original Tecumseh Part

$270.99

$

Usually ships in 3-12 days

0
