20009 - Toro 22" Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

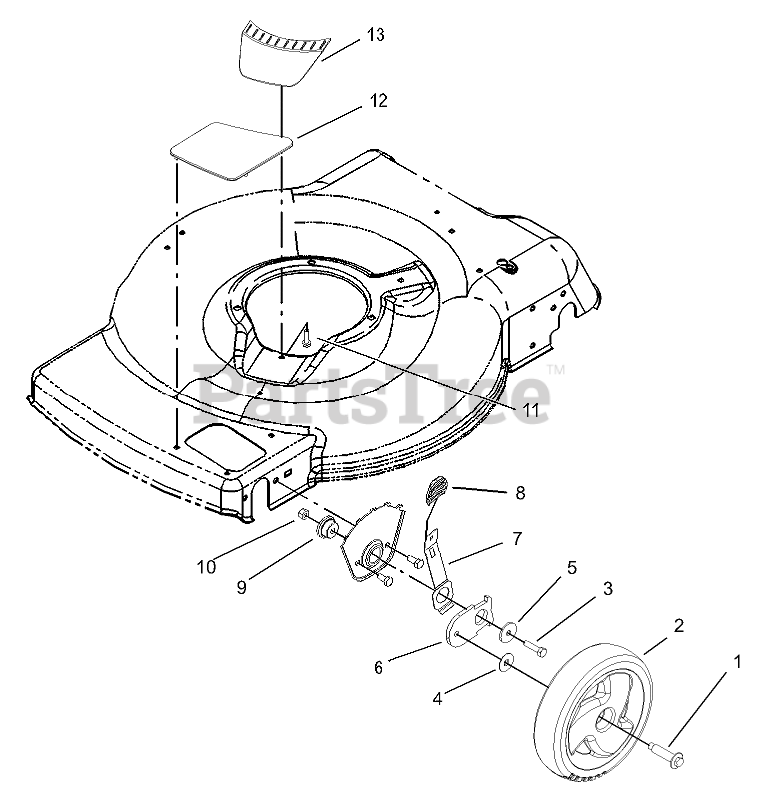

FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 105-1814

WHEEL ASM (59505)

$33.99

$

In Stock, Qty 7

0

3

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

4

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

5

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 20+

0

6

Toro 105-1807

ARM-PIVOT, FRONT
(Superseded to 137-9128)

$7.49

$

In Stock, Qty 20+

0

7

Toro 105-1809

Arm-Spring

$11.99

$

In Stock, Qty 13

0

8

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

9

Toro 105-1818

Bushing-Mount, HOC

$5.49

$

In Stock, Qty 9

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

12

Toro 104-9398

Cover-Cutout

$

$

Not available

13

Toro 105-3005

COVER-BELT OPENING

$7.99

$

Usually ships in 3-6 days

0
