20007 - Toro 22" Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ENGINE ASSEMBLY NO. 2 TECUMSEH LV195EA-362003B Parts Diagram

22" Recycler Walk-Behind Mower

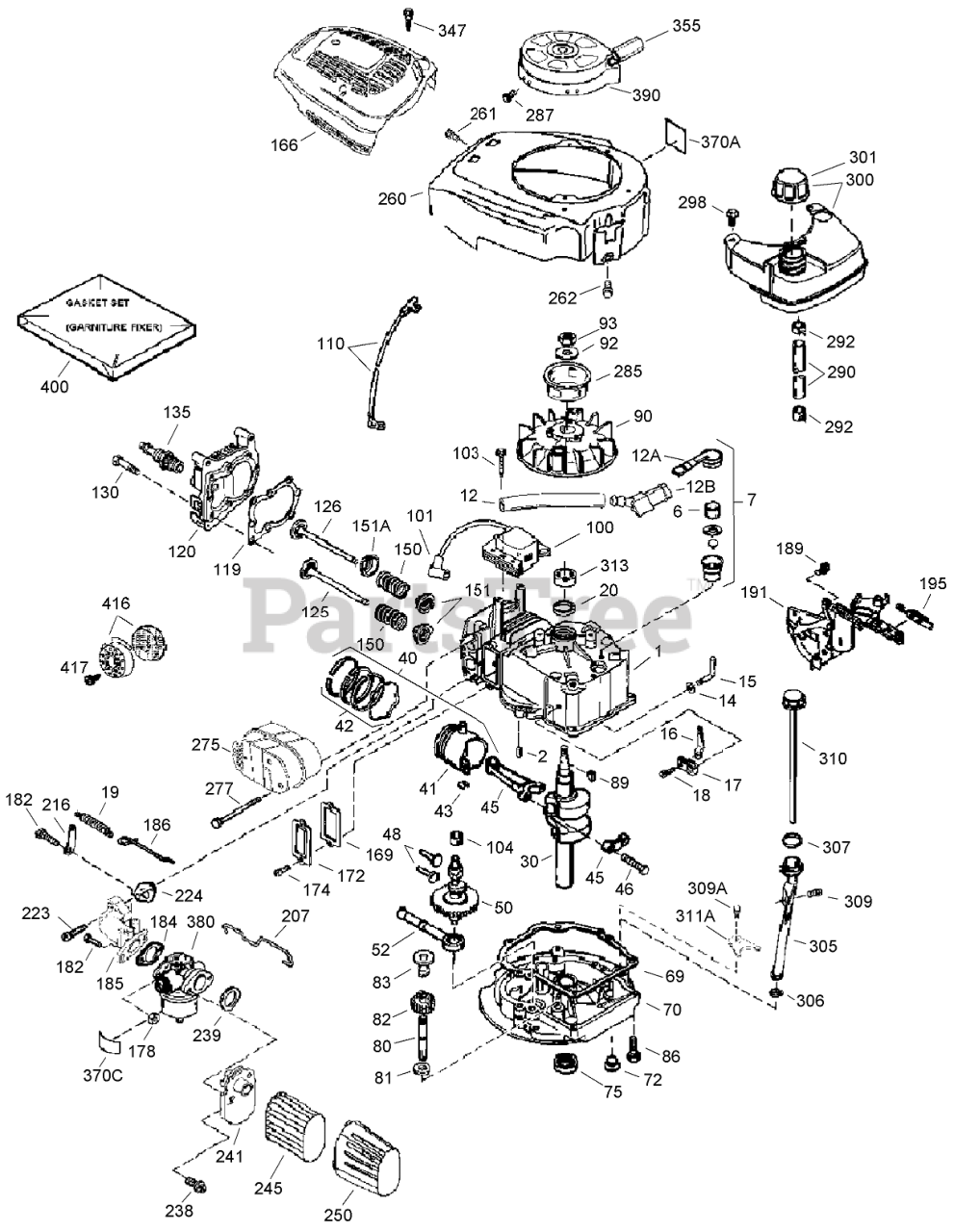

ENGINE ASSEMBLY NO. 2 TECUMSEH LV195EA-362003B Parts Diagram

  • Title

347

Tecumseh 650898A

Screw (10-32 x 27/32)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

370A

Tecumseh 36261

Decal-Lubrication

Note: Original Tecumseh Part

$

$

Not available

370C

Tecumseh 37695

Decal-Primer
(Superseded to 37318)

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

370

Tecumseh 35977

Decal-Warning

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 6

0

380

Tecumseh 640303

Carburetor (Incl. 184)
(Superseded to 640350)

Note: Original Tecumseh Part

$109.99

$

In Stock, only 1 left!

0

390

Tecumseh 590739

Rewind Starter ASM

Note: Original Tecumseh Part

$62.99

$

In Stock, only 1 left!

0

400

Tecumseh 37613A

Gasket Set

Note: Original Tecumseh Part

$16.99

$

In Stock, Qty 8

0

416

Tecumseh 37530

Spark Arrestor Kit

Note: Original Tecumseh Part

$

$

Not available

Tecumseh 806173A

REPLACEMENT ENGINE
(Superseded to 806173B)

Note: Original Tecumseh Part

$

$

Not available

Tecumseh 750876

Shortblock-Replacement

Note: Original Tecumseh Part

$270.99

$

Usually ships in 3-12 days

0
