20007 - Toro 22" Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

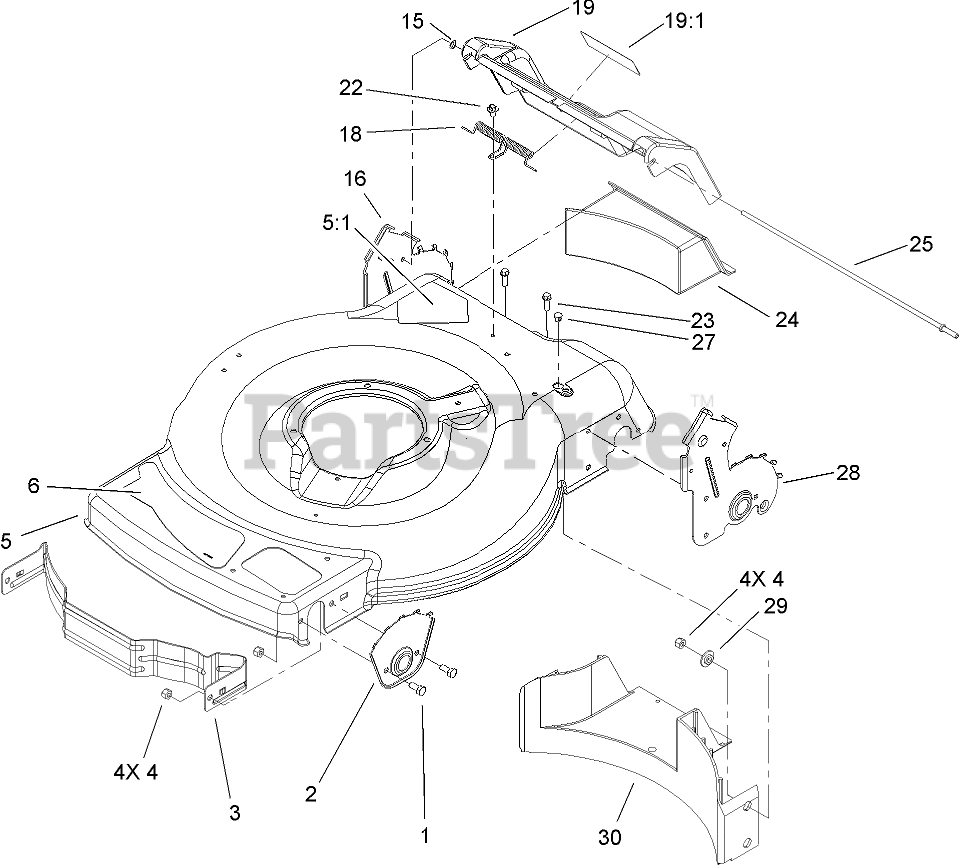

DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

2

Toro 105-1808-03

Plate-HOC, Front

$

$

Not available

3

Toro 104-8694-03

Baffle-Front

$112.99

$

In Stock, only 3 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 106-8383

HOUSING ASM

$535.99

$

Usually ships in 3-6 days

0

5:1

Toro 105-6838

DECAL-DANGER

$6.99

$

In Stock, only 2 left!

0

6

Toro 105-1296

Decal-Deck

$

$

Not available

15

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

16

Toro 107-0790

RH REAR HOC PLATE ASM
(Superseded to 112-6441)

$

$

Not available

18

Toro 105-3032

Spring-Door, Rear

$21.99

$

Usually ships in 3-6 days

0

19

Toro 105-1323

REAR DOOR ASM

$

$

Not available

19:1

Toro 105-1295

DECAL-WARNING

$3.49

$

In Stock, only 2 left!

0

22

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Toro 105-1842

Plug-Discharge, Rear

$12.99

$

Usually ships in 3-6 days

0

25

Toro 105-1827

Rod-Pivot, Rear Door

$12.99

$

Usually ships in 3-6 days

0

27

Toro 104-9369

Plug-Dome

$1.49

$

In Stock, only 1 left!

0

28

Toro 107-0783

LH REAR HOC PLATE ASM
(Superseded to 112-6443)

$31.99

$

Usually ships in 3-6 days

0

29

Toro 105-3006

Washer-Stepped

$2.99

$

In Stock, only 1 left!

0

30

Toro 105-3047

Baffle-Rear

$

$

Not available
