20005 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) FRONT AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

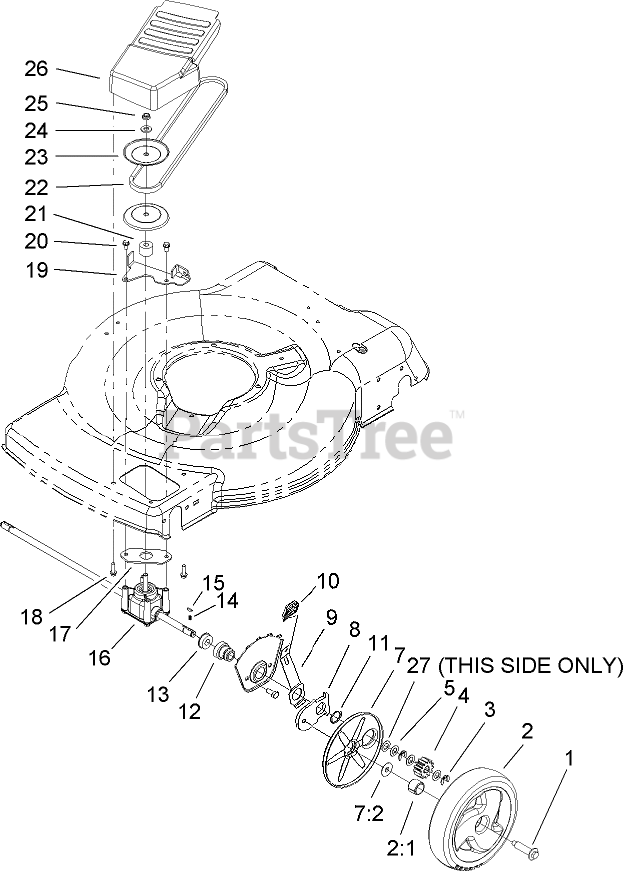

FRONT AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Toro 105-1815

Wheel Gear ASM

$37.99

$

In Stock, only 4 left!

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

Usually ships in 3-6 days

0

4

Toro 104-8670

Gear-Pinion, 13t

$21.99

$

In Stock, only 2 left!

0

5

Toro 105-6840

Washer-Thrust

$1.99

$

In Stock, Qty 8

0

7

Toro 108-3794

COVER-WHEEL
(Superseded to 127-6840)

$5.99

$

In Stock, Qty 20+

0

7:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 10

0

7:1

COVER

Note: Not serviced separately

$

$

Not available

8

Toro 105-1807

ARM-PIVOT, FRONT
(Superseded to 137-9128)

$6.99

$

In Stock, Qty 5

0

9

Toro 105-1809

Arm-Spring

$11.99

$

In Stock, only 1 left!

0

10

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, only 3 left!

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 10

0

12

Toro 104-8698

RETAINER-BEARING, HOC

$10.99

$

In Stock, only 2 left!

0

13

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

14

Toro 39-9650

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

15

$2.49

$

In Stock, Qty 20+

0

16

Toro 106-3955

TRANSMISSION ASM

$108.99

$

In Stock, Qty 5

0

17

Toro 108-9756

GASKET-GEARBOX

$1.49

$

In Stock, Qty 12

0

18

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

19

Toro 105-1833-03

BRACKET-PIVOT, FWD

$17.99

$

In Stock, only 3 left!

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 92-5791

SPACER

$5.49

$

In Stock, Qty 17

0

22

Toro 91-2258

BELT-V

$22.99

$

In Stock, Qty 13

0

23

Toro 104-8691

Pulley-Half, Front

$14.99

$

In Stock, only 2 left!

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

26

Toro 105-1839

Cover-Belt, Front

$17.99

$

Usually ships in 3-6 days

0

27

Toro 36-4780

WASHER-PLAIN

$7.99

$

Usually ships in 3-6 days

0
