20001 - Toro 22" Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) DECK ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

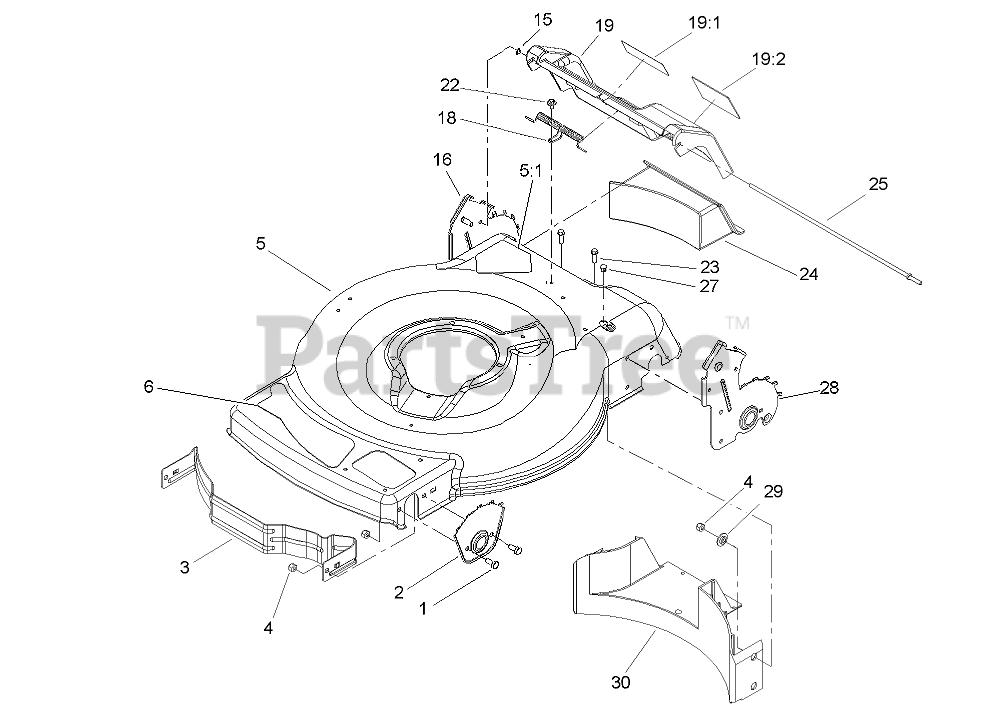

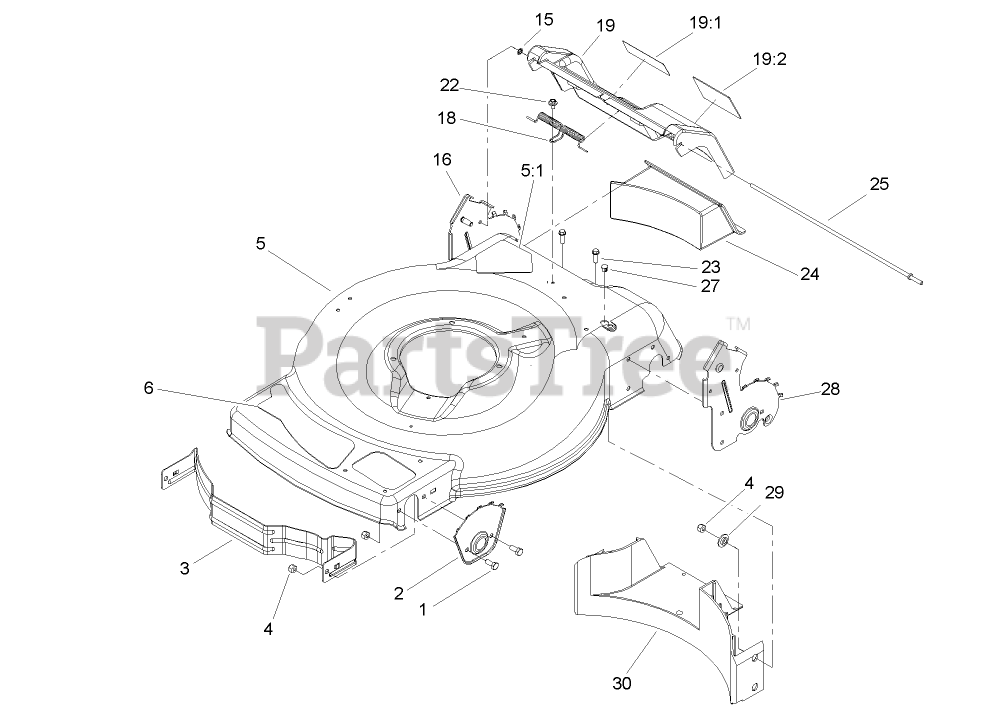

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 105-1808-03

Plate-HOC, Front

$

$

Not available

3

Toro 104-8694-03

Baffle-Front

$64.99

$

In Stock, only 3 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

5

Toro 106-8384

HOUSING ASM

$495.99

$

Usually ships in 3-6 days

0

5:1

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

6

Toro 105-1296

Decal-Deck

$

$

Not available

15

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

16

Toro 107-0790

RH REAR HOC PLATE ASM
(Superseded to 112-6441)

$

$

Not available

18

Toro 105-3032

Spring-Door, Rear

$18.99

$

In Stock, only 1 left!

0

19

Toro 105-1324

REAR DOOR ASM

$83.99

$

Usually ships in 3-6 days

0

19:1

Toro 104-7909

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

19:2

Toro 104-7908

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

22

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Toro 105-1842

Plug-Discharge, Rear

$11.99

$

Usually ships in 3-6 days

0

25

Toro 105-1827

Rod-Pivot, Rear Door

$11.99

$

Usually ships in 3-6 days

0

27

Toro 104-9369

Plug-Dome

$0.99

$

In Stock, only 1 left!

0

28

Toro 107-0783

LH REAR HOC PLATE ASM
(Superseded to 112-6443)

$26.99

$

Usually ships in 3-6 days

0

29

Toro 105-3006

Washer-Stepped

$2.99

$

In Stock, only 1 left!

0

30

Toro 105-3047

Baffle-Rear

$

$

Not available
