2000 (UT-26026) - Green Machine String Trimmer Starter - Ignition Parts Diagram

String Trimmer

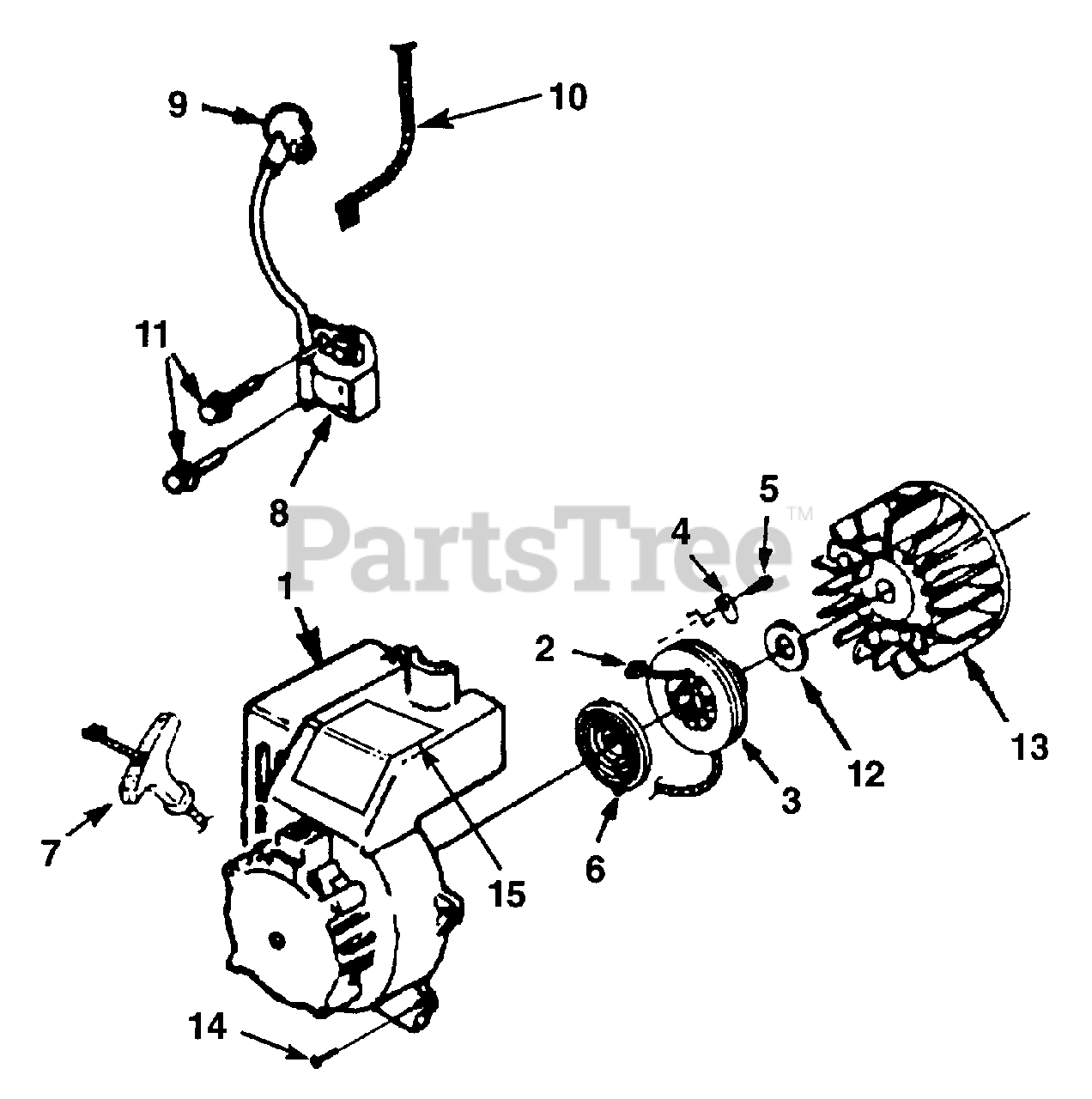

Starter - Ignition Parts Diagram

  • Title

1

Homelite A08987

Starter/Engine Housing

$

$

Not available

2

Homelite 9789902

Starter Rope (42")
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

3

Homelite 98770A

Starter Pulley

$3.99

$

Usually ships in 3-7 days

0

4

Homelite 98791

Retaining Bracket

$

$

Not available

5

Homelite 82541

Screw-Plastite (10 X 1/2")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$1.99

$

In Stock, only 3 left!

0

6

Homelite A98773A

Spring & Container
(Superseded to 638033001)

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 02264

Starter Grip
(Superseded to UP03832)

$

$

Not available

8

Homelite 94711CS

Ignition Module

$

$

Not available

9

Homelite A33055

Terminal & Cover

$

$

Not available

10

Homelite A00681

Electrical Lead

$

$

Not available

11

Homelite 82540

Screw-Thread Forming (8-32 X 1")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 95479A

Flat Washer

$

$

Not available

13

Homelite A04158S

Rotor & Starter Pawls
(Superseded to UP03856A)

$

$

Not available

14

Homelite 82538

Screw-Thread Forming (10-24 X 3/4")

Note: Torque Specs: 25-35 In/Lbs; 2.8-3.9 Nm

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 0798802

Model Decal

$

$

Currently unavailable
