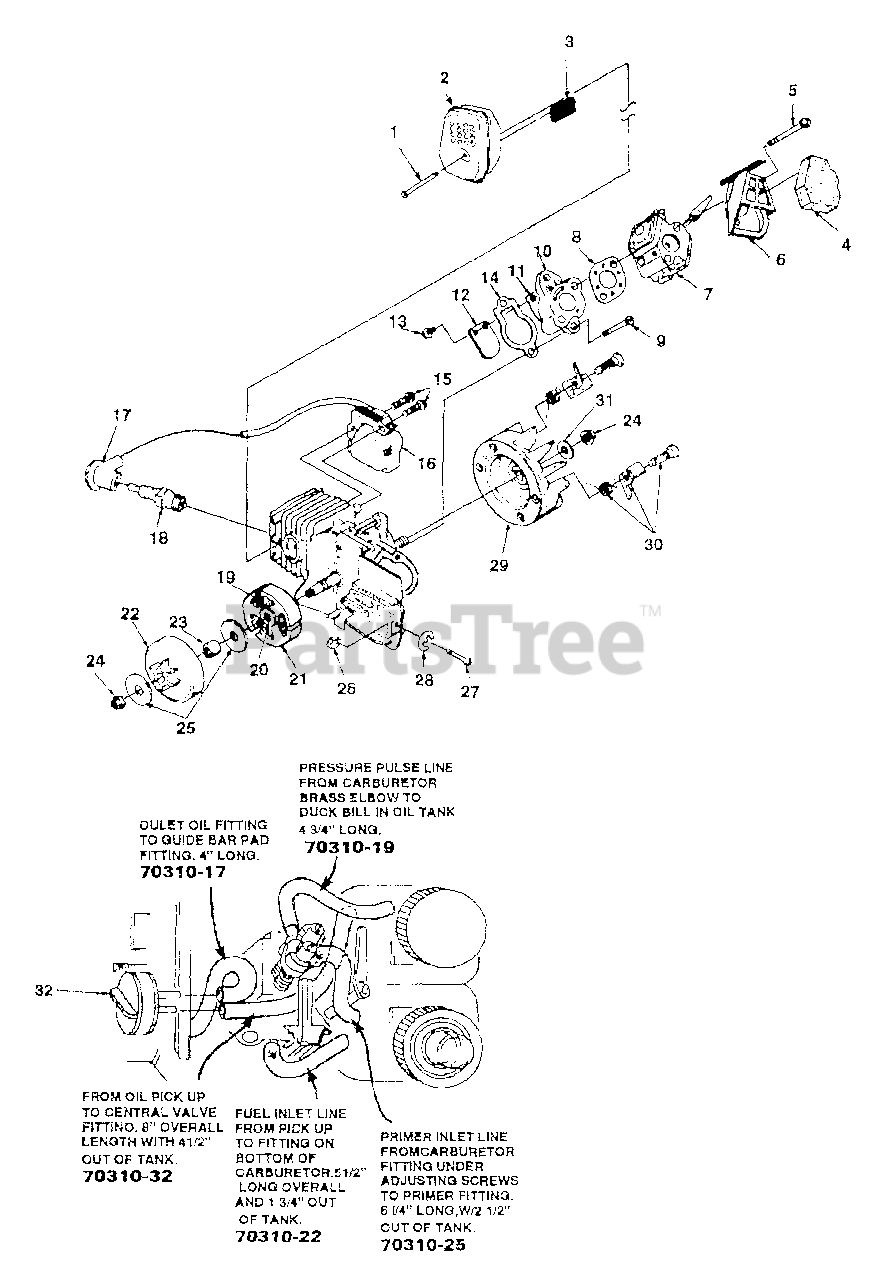

200 (UT-10699-A) - Homelite Chainsaw Intake, Ignition, Muffler & Clutch Parts Diagram

Chainsaw

Intake, Ignition, Muffler & Clutch Parts Diagram

  • Title
1

Homelite 93460

SCREW-Machine Hex Sems (#8 -32 X 3/4")

$

$

Not available

2

Homelite A02459

MUFFLER

$

$

Currently unavailable

3

Homelite 02458

SCREEN-Spark Arrestor

$

$

Not available

4

Homelite 02500

FILTER-Air
(Superseded to UP07386)

$

$

Not available

5

Homelite 00167

SCREW-Thread Forming

$

$

Not available

6

Homelite 02491A

BOX-Air Filter

$

$

Not available

7

Homelite A01373

CARBURETOR (Zama)

$

$

Currently unavailable

8

Homelite 02488

GASKET-Carburetor
(Superseded to UP05880)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 82589

SCREW-Plastite, (10-14 X 1")

$2.99

$

In Stock, Qty 7

0

10

Homelite A02499

HEAT DAM

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 95983

REED
(Superseded to UP07391)

$8.99

$

Usually ships in 3-7 days

0

12

Homelite 03205

STOP-Reed

$

$

Not available

13

Homelite 82498

SCREW-Hex Taptite (4-40 X 3/8")

$

$

Not available

14

Homelite 02453

GASKET-Intake Manifold

$5.49

$

Usually ships in 3-7 days

0

15

Homelite 82540

SCREW-Thread Forming (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 94711CS

MODULE-Ignition

$

$

Not available

17

Homelite A33055

TERMINAL

$

$

Not available

18

Homelite 96169S

SPARK PLUG (Champion DJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

Homelite 79252

SPARK PLUG (Champion RDJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

19

Homelite 03961

SPRING-Clutch

$

$

Not available

20

Homelite 79221

SPIDER-Clutch

$30.99

$

Usually ships in 3-7 days

0

21

Homelite 79222A

SHOE-Clutch

$

$

Currently unavailable

22

Homelite A95653C

SPROCKET & DRUM
(Superseded to A95653E)

$

$

Not available

23

Homelite 70277

BEARING
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

24

Homelite 81229

NUT-Rotor (5/16-24)
(Superseded to 81229A)

$4.99

$

Usually ships in 3-7 days

0

25

Homelite 95299

WASHER-Thrust

$

$

Not available

26

Homelite 692542

PIN-Adjusting

$26.99

$

In Stock, only 1 left!

0

27

Homelite A00440

SCREW & E-RING KIT

$

$

Not available

28

Homelite 93574

E-RING
(Superseded to A00440)

$

$

Not available

29

Homelite A04158

ROTOR & STARTER PAWL
(Superseded to UP03856)

$

$

Not available

30

Homelite A70285E

STARTER PAWL KIT

$101.99

$

Usually ships in 3-7 days

0

31

Homelite 84065

WASHER-(5/16")
(Superseded to UP04241)

$

$

Not available

32

Homelite A01147

OIL VALVE

$

$

Currently unavailable
