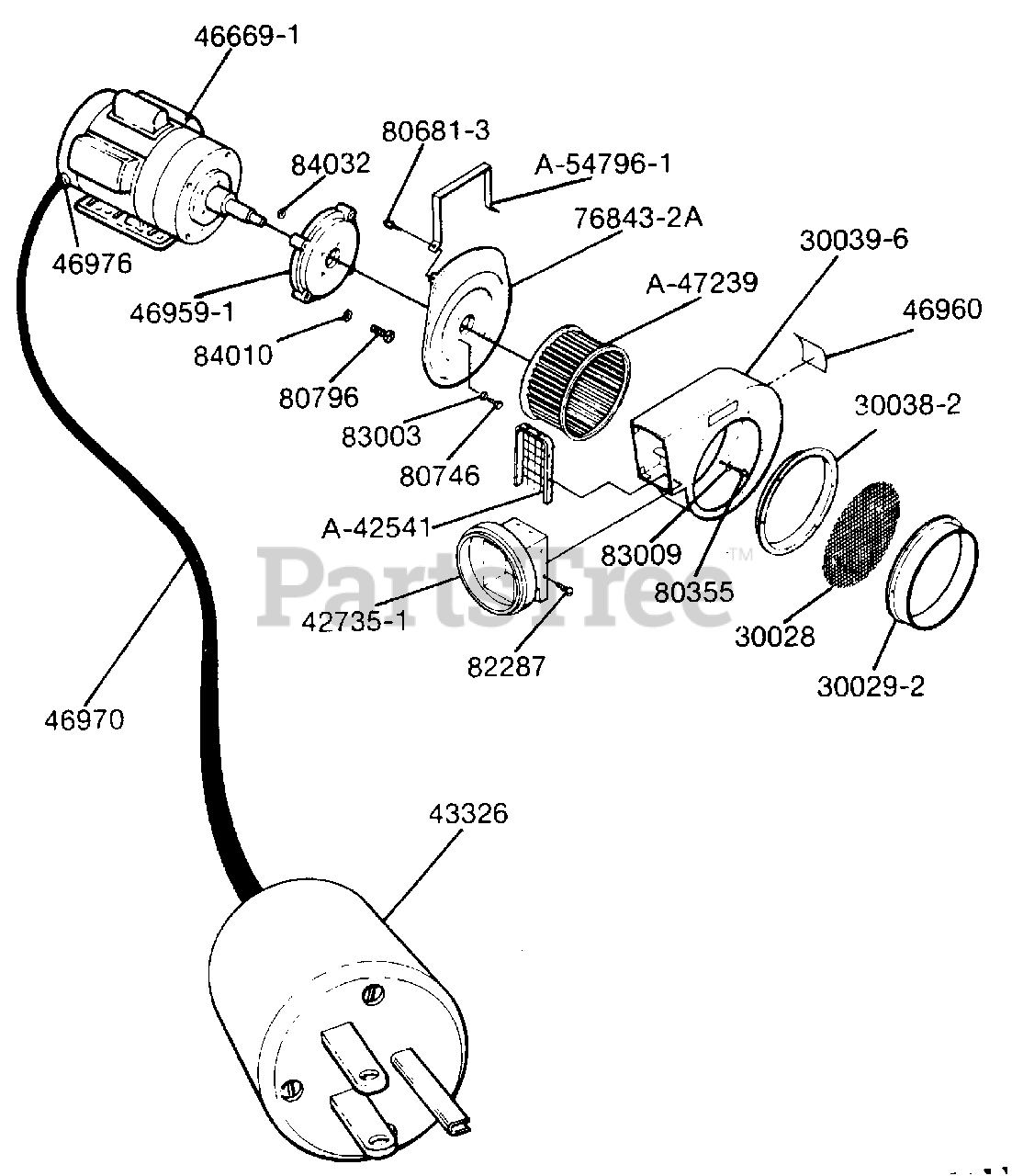

200 EB1 (UT-07420) - Homelite Electric Blower Exploded View Parts Diagram

Electric Blower

Exploded View Parts Diagram

  • Title
46669-1

$

$

Currently unavailable

84032

Homelite 84032

WASHER TBO

$

$

Not available

80681-3

Homelite 806813

SCREW-Mach Hex Hd.(1/4-20 X 1/2")

$

$

Not available

A-54796-1

$

$

Currently unavailable

76843-2A

Homelite 768432A

PLATE- Blower mounting
(Superseded to 768432B)

$

$

Currently unavailable

A-47239

Homelite A47239

ROTOR- Blower

$

$

Currently unavailable

30039-6

Homelite 300396

HOUSING- Blower

$

$

Currently unavailable

46960

Homelite 46960

NLA(NO LONGER AVAILABLE)

$

$

Not available

30038-2

Homelite 300382

VENTURI- Blower
(Superseded to 300382A)

$

$

Currently unavailable

30029-2

Homelite 300292

USE MC-9014-310001 NUT - RETA
(Superseded to 300292A)

$

$

Not available

30028

Homelite 30028

SCREEN- Inlet

$

$

Not available

80355

$3.49

$

Usually ships in 3-7 days

0

83009

Homelite 83009

WASHER, LOCK

$8.49

$

Usually ships in 3-7 days

0

82287

$2.99

$

Usually ships in 3-7 days

0

42735-1

Homelite 427351

OUTLET- Blower

$

$

Not available

A-42541

Homelite A42541

Support & Screen (discharge)

$

$

Not available

80746

Homelite 80746

USE 80086
(Superseded to 80088)

$

$

Not available

83003

Homelite 83003

WASHER - Lock 5/16-18
(Superseded to UP03791)

$

$

Not available

80796

Homelite 80796

USE 82466
(Superseded to 80097)

$

$

Not available

84010

Homelite 84010

"WASHER, FLAT" TBO
(Superseded to PS84010)

$

$

Not available

46959-1

Homelite 469591

Superseded by 469591A
(Superseded to 469591A)

$

$

Currently unavailable

$

$

Currently unavailable

46970

Homelite 46970

CONDUCTOR CABLE

$217.99

$

Usually ships in 3-7 days

0

43326

Homelite 43326

PLUG 30 AMP TBO

$

$

Not available
