200.643121 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

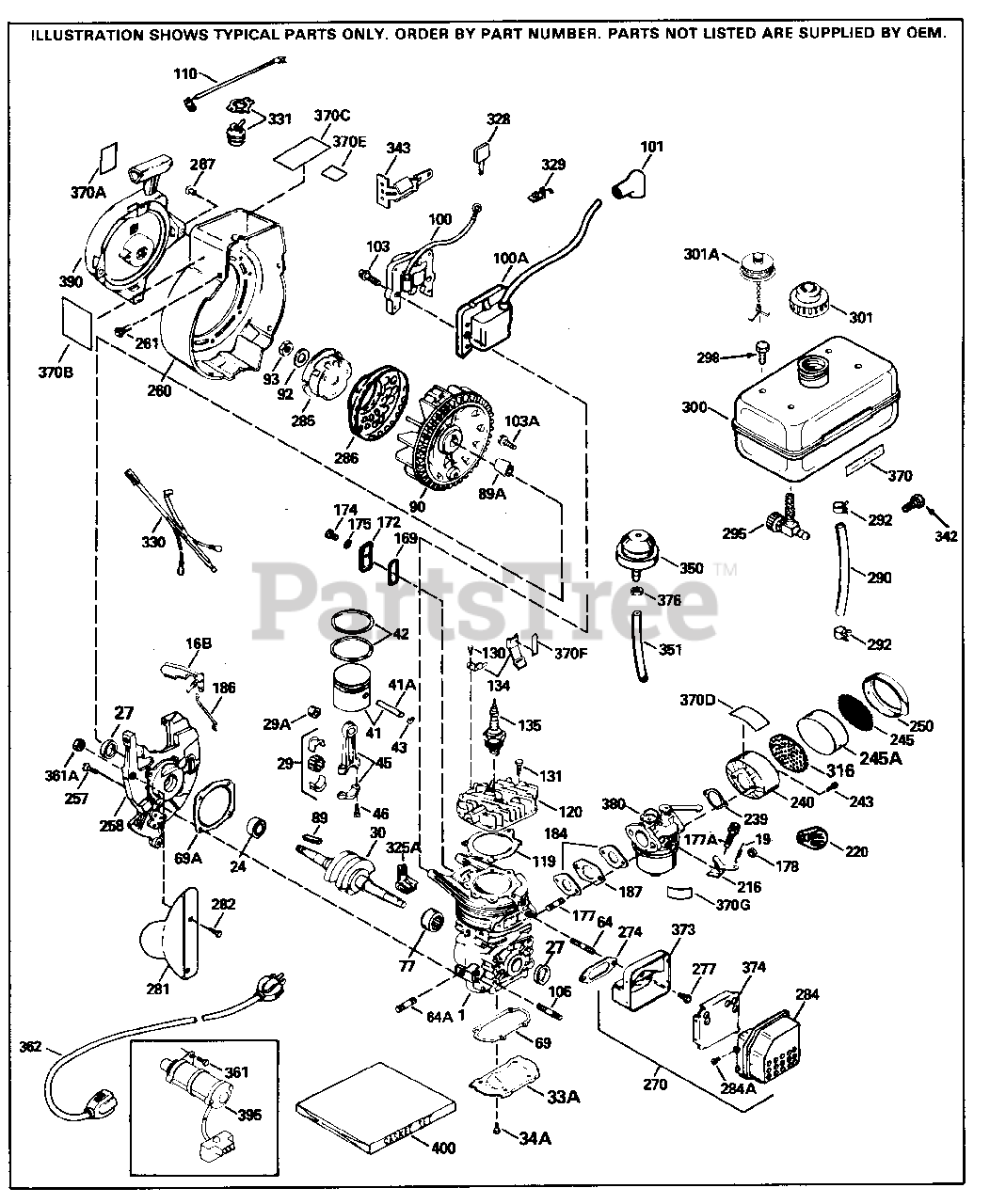

Engine Parts List #1 Parts Diagram

  • Title

1

"Cylinder Order s/b if replacement is req.

$

$

Not available

16B

Tecumseh 490291A

Air Vane

$3.99

$

In Stock, Qty 5

0

19

Tecumseh 570646

Extension Spring

$1.99

$

In Stock, Qty 5

0

24

Tecumseh 530110

Ball Bearing

$30.99

$

Usually ships in 3-12 days

0

27

Tecumseh 510319

Oil Seal

$7.49

$

In Stock, Qty 8

0

29

Tecumseh 530151

Needle Bearing & Liner Set 30 needle s

$23.99

$

Usually ships in 3-12 days

0

29A

Tecumseh 530104A

Cartridge Bearing

$15.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290515

Crankshaft

$

$

Currently unavailable

33A

Tecumseh 570644

Cover Plate

$7.49

$

In Stock, only 1 left!

0

34A

Tecumseh 650579

Screw, Torx T-25, 10-24 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

41A

Tecumseh 310264

Piston Pin

$9.49

$

Usually ships in 3-12 days

0

41

Tecumseh 310283A

Piston & Pin Assy. (Incl. 43)

$33.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

43

Tecumseh 310167

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 310263

Connecting Rod Assy. Incl. 29, 29A & 46

$63.99

$

Usually ships in 3-12 days

0

46

Tecumseh 650633

Connecting Rod Bolt

$1.99

$

In Stock, only 2 left!

0

69

Tecumseh 510323A

* Cover Plate Gasket

$6.99

$

In Stock, only 1 left!

0

69A

Tecumseh 510292A

* Cylinder Cover Gasket

$3.99

$

Usually ships in 3-12 days

0

77

Tecumseh 530105

Cartridge Bearing

$11.99

$

Usually ships in 3-12 days

0

89A

Tecumseh 611032

Adapter Sleeve

$8.49

$

Usually ships in 3-12 days

0

90

Tecumseh 611046A

Flywheel

$94.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650390

Flywheel Nut

$1.99

$

In Stock, only 3 left!

0

100A

Tecumseh 34443A

Solid State Ignition (Incl. 101)
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

119

Tecumseh 510274A

* Cylinder Head Gasket

$1.99

$

In Stock, only 4 left!

0

120

Tecumseh 250240B

Cylinder Head

$35.99

$

Usually ships in 3-12 days

0

131

Tecumseh 650477

Screw, Torx T-30, 1/4-20 x 3/4"

$1.99

$

In Stock, Qty 20+

0

135

Tecumseh 611049

Resistor Spark Plug (RCJ-8Y)

$4.99

$

In Stock, Qty 20+

0

169

Tecumseh 510325A

* Cover Gasket

$1.99

$

In Stock, Qty 5

0

172

Tecumseh 570647

Compression Release Cover

$5.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650579

Screw, Torx T-25, 10-24 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

175

Tecumseh 650838

Washer, No. 10

$

$

Not available

177

Tecumseh 650527

Carburetor Stud, 1/4-28 x 1-1/4"

$

$

Not available

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 3 left!

0

184

Tecumseh 510326A

* Carburetor Gasket

$1.49

$

In Stock, only 3 left!

0

186

Tecumseh 490294

Governor Link

$1.99

$

Usually ships in 3-12 days

0

187

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

216

Tecumseh 570645

R.P.M. Adjusting Lever

$

$

Not available

257

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

258

Tecumseh 350396

Blower Housing Base (Incl. 75)

$

$

Not available

260

Tecumseh 350397

BLOWER HSG

$

$

Not available

261

Tecumseh 650737

Screw, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 6

0

270

Tecumseh 390263B

Muffler Assy. (Incl. 277,284,284A,373 ,3 74) NOTE: Muffler Assembly 39 0263B has been replaced by the new on epiece muffler, Ref. 275.
(Superseded to 390330)

$

$

Not available

274

Tecumseh 510207A

* Exhaust Gasket

$5.49

$

Usually ships in 3-12 days

0

277

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

284

Tecumseh 390267

Muffler Cover NOTE: This muffler cov er has been replaced by the new one p iecemuffler, Ref. #'s 275, 275A or 27 5B.
(Superseded to 390330)

$

$

Not available

284A

Tecumseh 650578

Screw, 8-18 x 3/8"

$1.99

$

In Stock, only 2 left!

0

285

Tecumseh 590551

Starter Cup
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

287

Pop Rivet (3/16" dia.) Purchase local ly

$

$

Not available

300

Tecumseh 32660A

Fuel Tank (Incl. 292)

$

$

Not available

301

Tecumseh 410240

Fuel Cap

$9.49

$

Usually ships in 3-12 days

0

325A

Tecumseh 611034

Spark Plug Wire Clip
(Superseded to 29443)

$1.99

$

In Stock, Qty 5

0

330

Tecumseh 611064

Wire Harness

$

$

Not available

350

Tecumseh 570629A

Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

351

Tecumseh 32180C

Primer Line

$6.99

$

In Stock, only 4 left!

0

373

Tecumseh 390292A

Muffler Base

$

$

Currently unavailable

374

Tecumseh 390272

Muffler Baffle

$

$

Currently unavailable

380

Tecumseh 632394

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page A1-38 or Fich e 27A, Grid F-3 for breakdown)
(Superseded to 640122A)

$

$

Not available

390

Tecumseh 590537

Rewind Starter Refer to Division 5, S ection C, page 25 or Fiche 27A, Grid G-9 for breakdown
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

400

Tecumseh 510324B

* Gasket Set (Incl. items marked *)

$9.49

$

In Stock, Qty 10

0
