20 (9022200) - Simplicity Chipper Shredder, PTO Drive PTO Driveline-Service Parts - Commercial Models 20 PTO & 24 PTO Parts Diagram

Chipper Shredder, PTO Drive

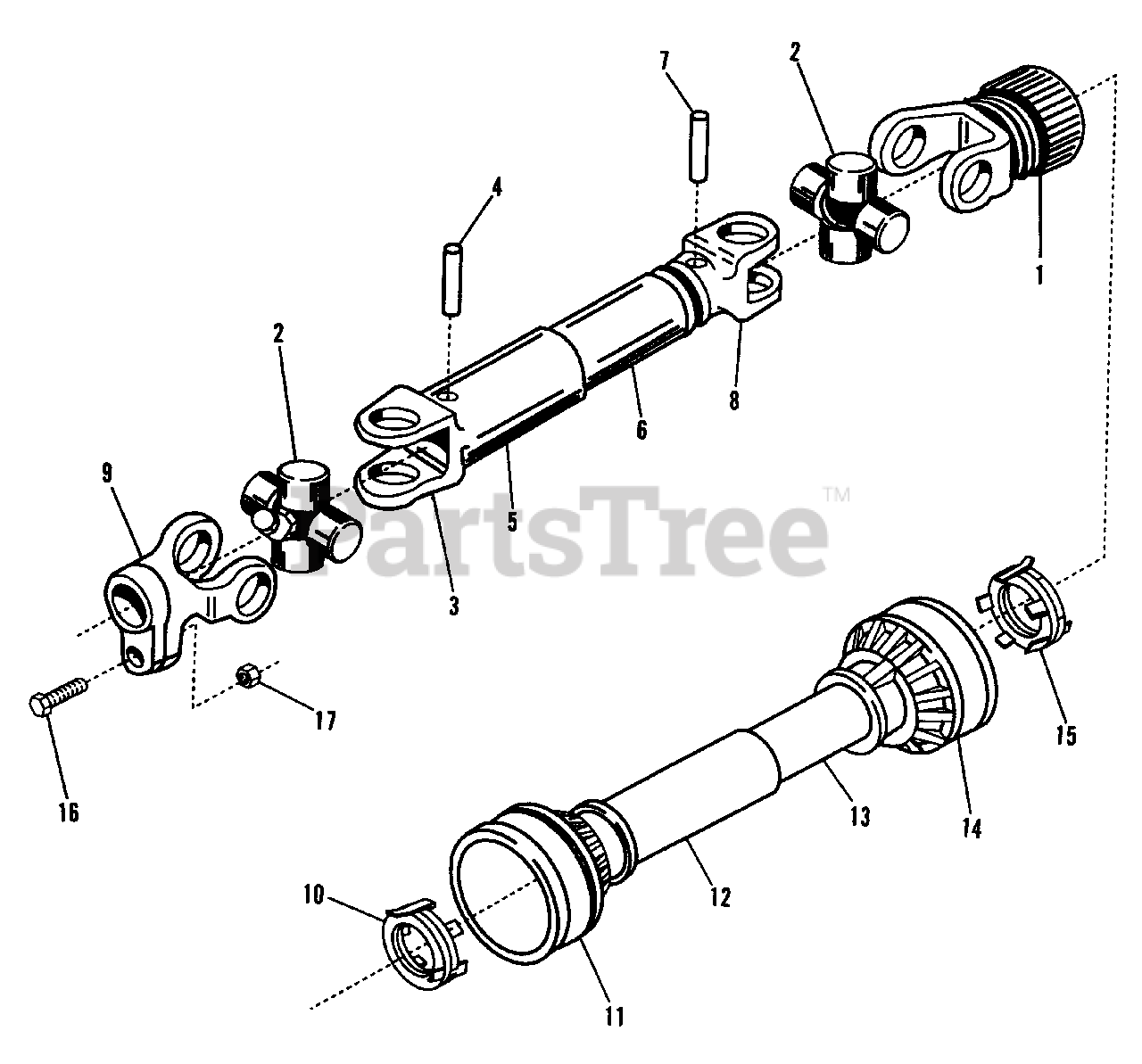

PTO Driveline-Service Parts - Commercial Models 20 PTO & 24 PTO Parts Diagram

  • Title

1

Simplicity 1713823SM

YOKE

$

$

Not available

2

Simplicity 1713824SM

CROSS KIT

$

$

Not available

3

Simplicity 1713825SM

YOKE, Outer Tube

$

$

Not available

4

Simplicity 1713826SM

ROLL PIN, 8 x 55mm

$

$

Not available

5

Simplicity 1713827SM

OUTER TUBE

$

$

Not available

6

Simplicity 1713828SM

INNER TUBE

$

$

Not available

7

Simplicity 1713829SM

ROLLPIN, 8 x 45mm

$

$

Not available

8

Simplicity 1713830SM

YOKE, Inner Tube

$

$

Not available

9

Simplicity 1713831SM

TORQUE LIMITER

$

$

Not available

10

Simplicity 1713832SM

OUTER BEARING SHIELD

$

$

Not available

11

Simplicity 1713833SM

OUTER CONE

$

$

Not available

12

Simplicity 1713834SM

OUTER SHIELD TUBE

$34.99

$

Usually ships in 2-12 days

0

13

Simplicity 1713835

INNER SHIELD TUBE

$

$

Not available

14

Simplicity 1713836SM

INNER CONE

$

$

Not available

15

Simplicity 1713837SM

INNER BEARING SHIELD

$

$

Not available

16

Simplicity 1960511

BOLT, Shear, M06-1 x 40mm, CL 8.8

$

$

Not available

17

Simplicity 1960524

NUT, Hex, Nyloc, M06-1

$

$

Not available
