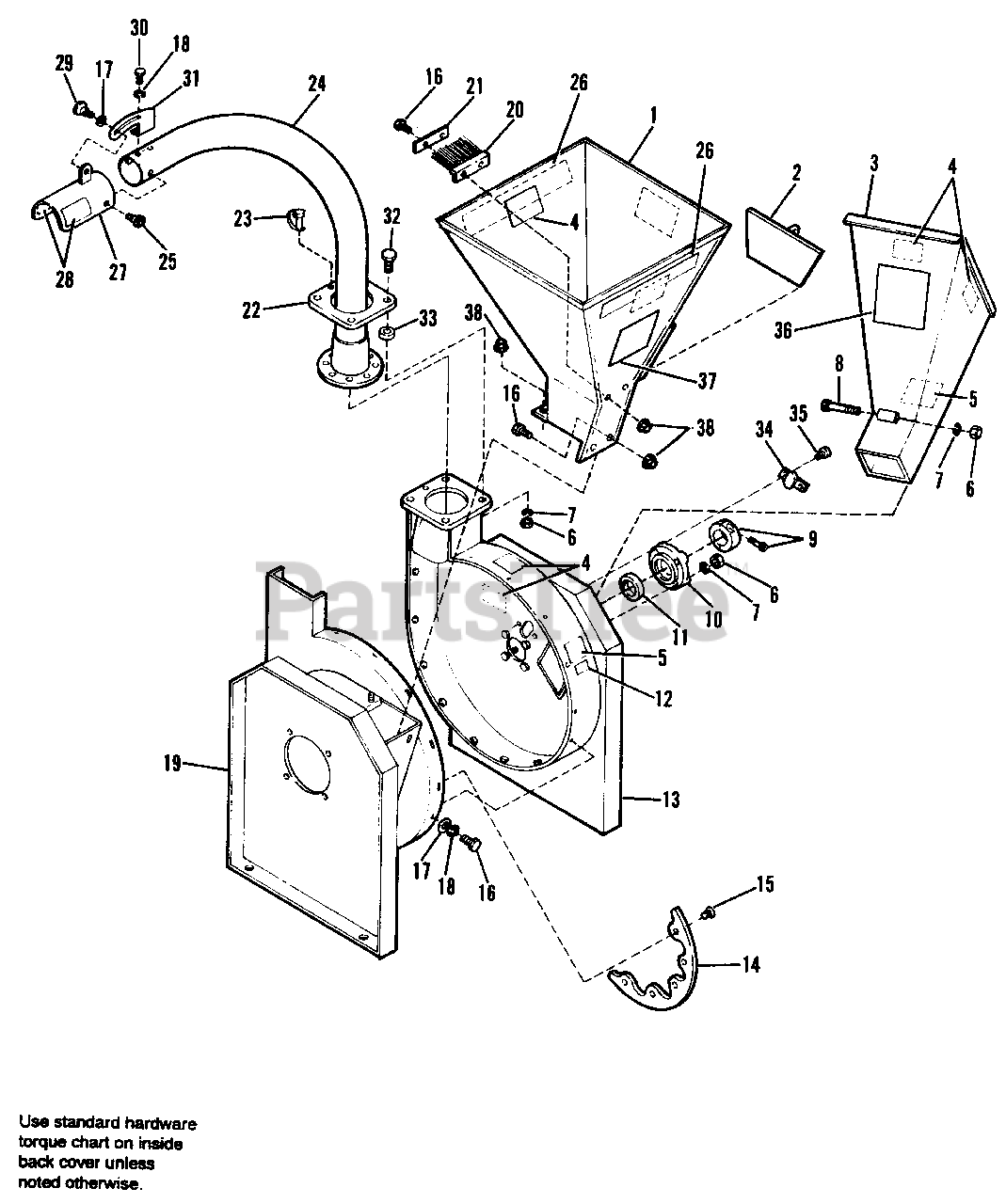

20 (9022200) - Simplicity Chipper Shredder, PTO Drive Hopper & Housing Group - Models 2020, 2024, 20 PTO & 24 PTO Parts Diagram

Chipper Shredder, PTO Drive

Hopper & Housing Group - Models 2020, 2024, 20 PTO & 24 PTO Parts Diagram

  • Title

1

Simplicity 1018020SM

HOPPER, Shredder, 20HP

$

$

Not available

1

Simplicity 1018024SM

HOPPER, Shredder, 23 HP

$

$

Not available

2

Simplicity 1021320SM

COVER PLATE, Vacuum, 20 HP

$

$

Not available

2

Simplicity 1021324SM

COVER PLATE, Vacuum, 23 HP

$95.99

$

Usually ships in 2-12 days

0

3

Simplicity 1069020

HOPPER, Chipper, 20 HP

$

$

Not available

3

Simplicity 1069024

HOPPER, Chipper, 23 HP

$

$

Not available

4

Simplicity 1729207SM

DECAL, Danger, Rotating Cutters

$17.99

$

Usually ships in 2-12 days

0

5

Simplicity 1729208SM

DECAL, Caution

$

$

Not available

6

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

8

Simplicity 1729234SM

CAPSCREW, Socket Hd., 3/8-16 x 41/2

$5.49

$

Usually ships in 2-12 days

0

9

Simplicity 1729109SM

COLLAR, Lock

$51.99

$

Usually ships in 2-12 days

0

10

Simplicity 1729108SM

BEARING, w/RaceLock&SetScrews

$433.99

$

Usually ships in 2-12 days

0

11

Simplicity 1729209SM

SPACER, Bearing

$37.99

$

Usually ships in 2-12 days

0

12

PLATE, Serial No.

$

$

Not available

13

Simplicity 1729117SM

CHIPPER HOUSING, Mounting Side, 20 HP (PTO)

$

$

Not available

13

Simplicity 1729118SM

CHIPPER HOUSING, Mounting Side, 23 HP (PTO)

$

$

Not available

Simplicity 1729123SM

CHIPPER HOUSING, Mounting Side, 20 HP (Trailer)

$

$

Not available

Simplicity 1729124SM

CHIPPER HOUSING, Mounting Side, 23 HP (Trailer)

$

$

Not available

14

Simplicity 1729127SM

DEFLECTOR, 20 HP

$87.99

$

Usually ships in 2-12 days

0

14

Simplicity 1729128SM

DEFLECTOR, 23 HP

$

$

Not available

15

Simplicity 1960492

SCREW, Flat Hd., 5/16-18 x 5/8 (Apply Loctite)

$

$

Not available

16

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4, 23 HP
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

16

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4, 20 HP
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

17

Simplicity 1919326SM

WASHER, 5/16, 23 HP

$4.49

$

In Stock, Qty 6

0

17

Simplicity 1919326SM

WASHER, 5/16, 20 HP

$4.49

$

In Stock, Qty 6

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16, 23 HP
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16, 20 HP
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1729121SM

CHIPPER HOUSING, Drive Side, 20 HP (PTO)

$

$

Not available

19

Simplicity 1729122SM

CHIPPER HOUSING, Drive Side, 23 HP (PTO)

$

$

Not available

19

Simplicity 1729119SM

CHIPPER HOUSING Drive Side, 20 HP (Trailer)

$

$

Not available

19

Simplicity 1729120SM

CHIPPER HOUSING Drive Side, 23 HP (Trailer)

$

$

Not available

20

Simplicity 1095020

GUARD, Hopper, 7-1/2" Long (20 HP)

$

$

Not available

20

Simplicity 1095024

GUARD, Hopper, 8-1/2" Long (23 HP)

$

$

Not available

21

Simplicity 1709410SM

STRAP, 23 HP

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 1709411SM

STRAP, 20 HP

$6.49

$

Usually ships in 2-12 days

0

22

Simplicity 1729125SM

CLAMP, Discharge

$

$

Not available

23

Simplicity 1729222SM

PIN, Lock

$

$

Not available

24

Simplicity 1729192SM

DISCHARGE TUBE, 20 HP

$

$

Not available

24

Simplicity 1729193SM

DISCHARGE TUBE, 23 HP

$

$

Not available

25

Simplicity 1729237SM

BOLT, Shoulder, Socket Hd., 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

26

Simplicity 1729121SM

DECAL, Simplicity

$

$

Not available

26

Simplicity 1713223

DECAL, Baker, 2020

$

$

Not available

27

Simplicity 1729199SM

DEFLECTOR, Discharge Tube

$

$

Not available

28

Simplicity 1729206SM

DECAL, Warning

$

$

Not available

29

Simplicity 1729232SM

KNOB

$19.99

$

Usually ships in 2-12 days

0

30

Simplicity 1920787SM

CAPSCREW, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 1729198SM

BRACKET, Deflector Adjusting

$

$

Not available

32

Simplicity 1921969SM

CAPSCREW, 3/8 16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

33

Simplicity 2157284SM

SPACER, Discharge Tube

$8.49

$

Usually ships in 2-12 days

0

34

Simplicity 1709577

PLATE, Access

$

$

Not available

35

Simplicity 1930601SM

TAPTITE SCREW, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

36

Simplicity 1709554SM

DECAL, Chipper Warning

$13.99

$

Usually ships in 2-12 days

0

37

Simplicity 1709555SM

DECAL, Shredder Warning

$24.99

$

Usually ships in 2-12 days

0

38

Simplicity 1935048SM

NUT, Hex, Flange, Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
