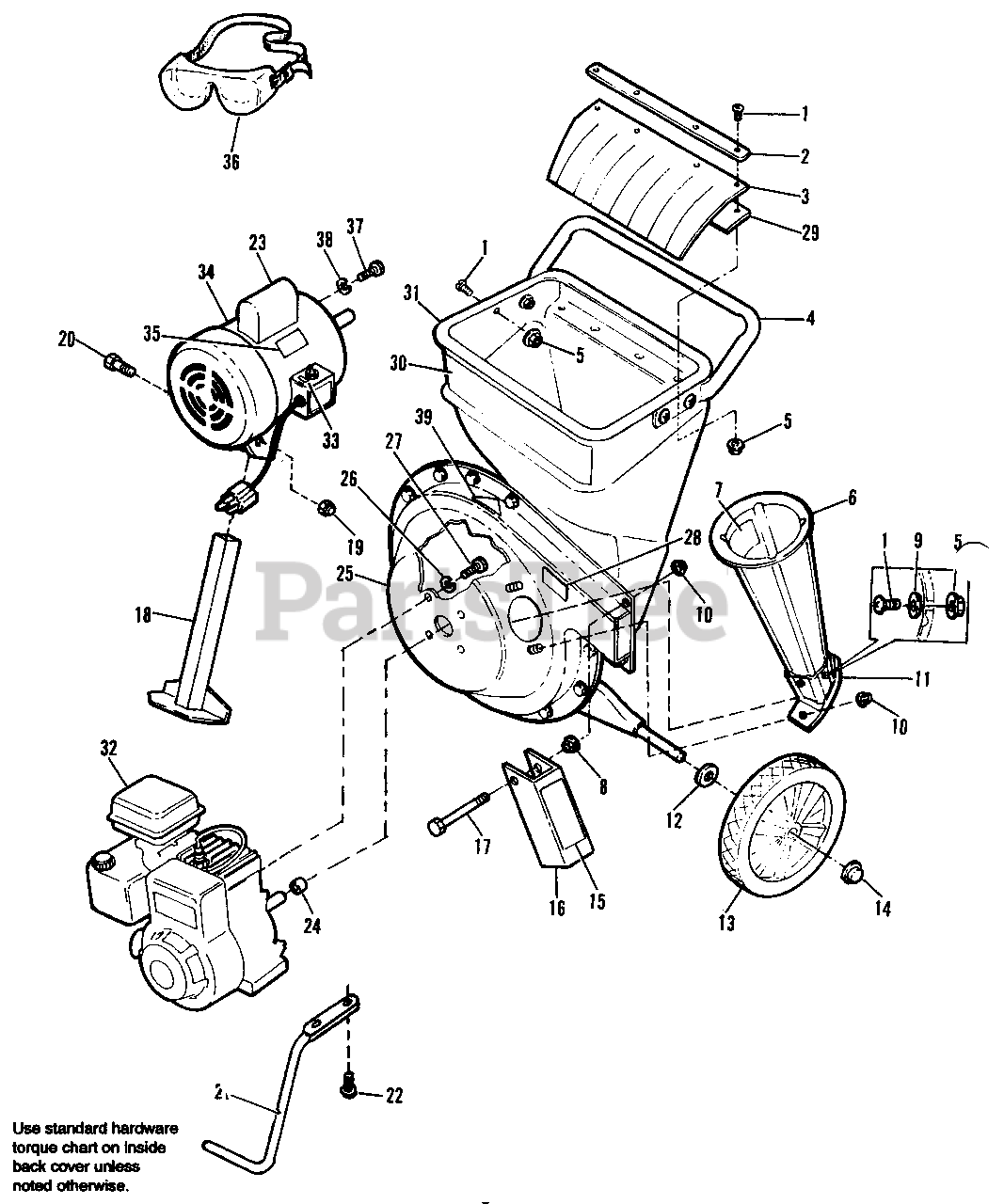

2/10 (9020100) - Simplicity Chipper Shredder Hopper & Engine/Motor Group - 2/10, 3/10 & 5/10 Parts Diagram

Chipper Shredder

Hopper & Engine/Motor Group - 2/10, 3/10 & 5/10 Parts Diagram

  • Title

1

Simplicity 1960507SM

SCREW, Hex, Button Hd., 1/4-20 x 3/4

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1098100SM

RETAINING STRIP, Hopper Guard

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1095100SM

GUARD, Hopper

$42.99

$

Usually ships in 2-12 days

0

4

Simplicity 1729181SM

HANDLE, Hopper

$46.99

$

Usually ships in 2-12 days

0

5

Simplicity 1930642SM

NUT, Flange, 2-Way, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 1709472SM

CHIPPER CONE (Orange)

$

$

Not available

6

Simplicity 1709472SM

CHIP CONE (Gold)

$

$

Not available

6

Simplicity 1709472SM

CHIPPER CONE (Red)

$

$

Not available

7

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

8

Simplicity 1687022SM

NUT, Shoulder

$

$

Not available

9

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1931277SM

NUT, Whiz, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1067200SM

BLOCK, Chipper Cone

$131.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1714250SM

WHEEL & TIRE ASSY., 1-3/4 x 12

$43.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960519SM

PUSH NUT, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1709529SM

DECAL, Danger (Narrow)

$6.99

$

Usually ships in 2-12 days

0

16

Simplicity 1709538SM

DISCHARGE DEFLECTOR

$

$

Not available

17

Simplicity 1709536SM

BOLT, Shoulder

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 1729185SM

LEG TUBE ASSY. (2/10 Only)

$

$

Not available

19

Simplicity 1919438SM

NUT, ESNA, 5/16-18 (2/10 Only)
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1922127SM

CAPSCREW, Hex. Hd., 5/16-18 x 1-3/4 (2/10 Only)
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713099SM

LEG TUBE ASSY., (3/10, 5/10 Only)

$57.99

$

Usually ships in 2-12 days

0

22

Simplicity 1928635SM

SCREW, Hex, Taptite 3/8 16 x 1-1/4 (3/10, 5/10 Only)

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 7002100

ELECTRIC MOTOR ASSY., 1-1/2 HP (2/10 Only)

$

$

Not available

24

Simplicity 1709527SM

SPACER (3/10, 5/10 Only)

$6.99

$

Usually ships in 2-12 days

0

25

Simplicity 1729177

CHIPPER HOUSING (2/10 Only)

$

$

Not available

Simplicity 1709476SM

CHIPPER HOUSING (3/10, 5/10 Only)

$151.99

$

Usually ships in 2-12 days

0

26

Simplicity 1917356SM

LOCKWASHER, 5/16 (3/10, 5/10 Only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1921515SM

CAPSCREW, Hex Hd., 5/16-24 x 3/4 (3/10, 5/10 Only)

$3.99

$

Usually ships in 2-12 days

0

28

I.D. PLATE

$

$

Not available

29

Simplicity 1709603SM

SUPPORT, Hopper Guard

$55.99

$

Usually ships in 2-12 days

0

30

Simplicity 1713208

DECAL, 2/10 Simplicity

$

$

Not available

30

Simplicity 1713210

DECAL, 3/10 Simplicity

$

$

Not available

30

Simplicity 1713212

DECAL, 5/10 Simplicity

$

$

Not available

30

Simplicity 1713209SM

DECAL, 2/10 Baker

$23.99

$

Usually ships in 2-12 days

0

30

Simplicity 1713211

DECAL, 3/10 Baker

$

$

Not available

30

Simplicity 1713213

DECAL, 5/10 Baker

$

$

Not available

31

Simplicity 1713521SM

SHREDDER HOPPER, (Orange)

$364.99

$

Usually ships in 2-12 days

0

31

Simplicity 1018100SM

SHREDDER HOPPER, (Gold)

$212.99

$

Usually ships in 2-12 days

0

31

Simplicity 1713521SM

SHREDDER HOPPER, (Red)

$364.99

$

Usually ships in 2-12 days

0

32

$

$

Not available

33

Simplicity 1709504SM

DECAL, On-Off (2/10 Only)

$7.99

$

Usually ships in 2-12 days

0

34

Simplicity 1709502SM

DECAL, Danger-Motor (2/10 Only)

$12.99

$

Usually ships in 2-12 days

0

35

Simplicity 1709503SM

DECAL, Caution-Motor (2/10 Only)

$8.49

$

Usually ships in 2-12 days

0

36

Simplicity 1729013SM

GOGGLES

$

$

Not available

37

Simplicity 1922586SM

CAPSCREW, Hex Hd., 3/8 16 x 5/8 (2/10 Only)

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 1916803SM

LOCKWASHER, 3/8 (2/10 Only)

$4.49

$

Usually ships in 2-12 days

0

39

DECAL, OPEI

$

$

Not available
