2-0230 (800) - Toro Ranger Lawn Tractor (1973) 51.000 LAWN RANGER MOWER Parts Diagram

Ranger Lawn Tractor

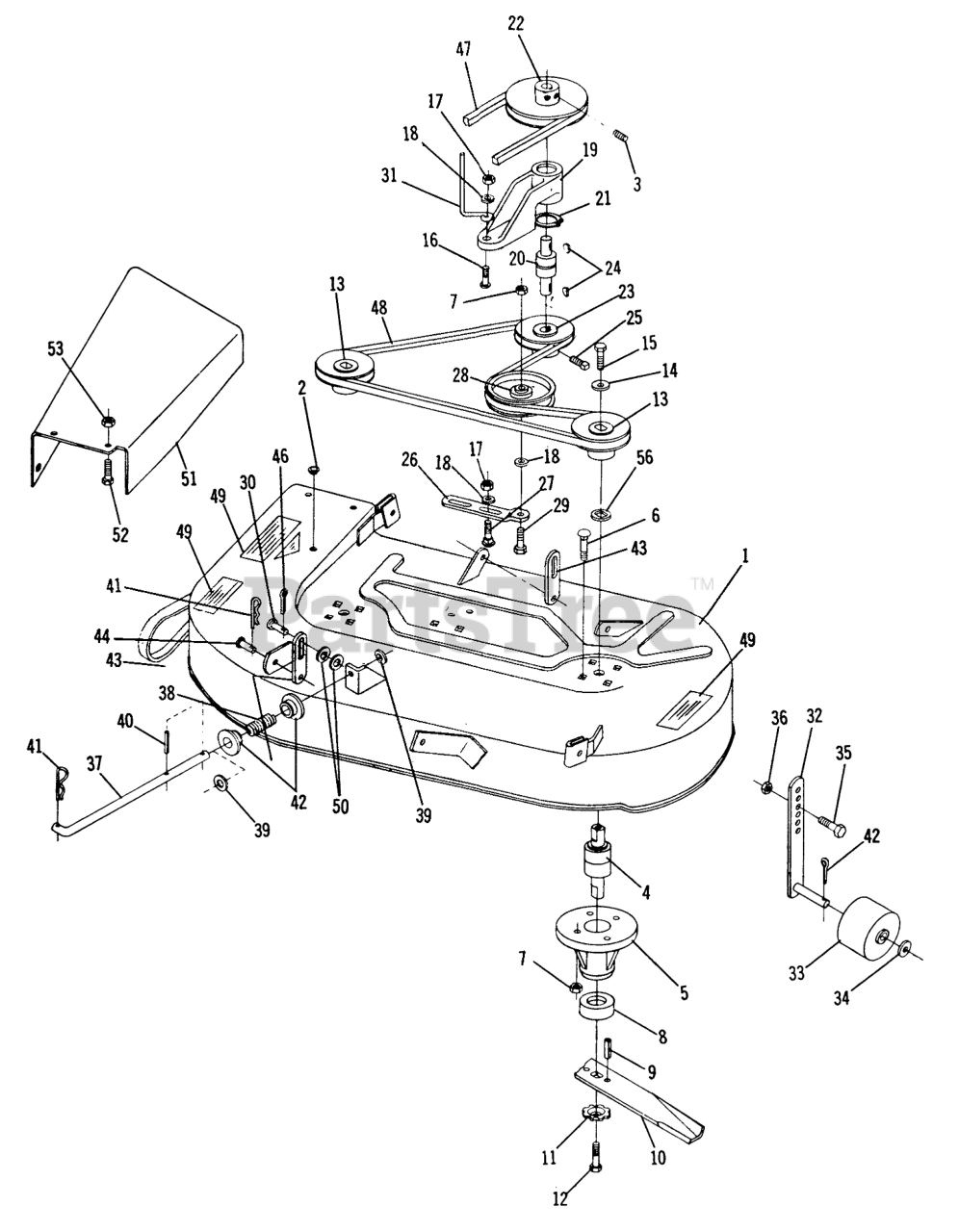

51.000 LAWN RANGER MOWER Parts Diagram

  • Title

1

Toro 100595

Deck

$

$

Not available

2

Toro 100146

Plug Button

$

$

Currently unavailable

3

Toro 909862-5

Set Screw

$

$

Currently unavailable

4

Toro 103119

BEARING

$

$

Not available

5

Toro 8389

Housing
(Superseded to 101525)

$

$

Not available

6

Toro 900234-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

7

Toro 915113-6

Nut

$

$

Currently unavailable

8

Toro 102780

CUP-SPINDLE

$140.99

$

In Stock, only 1 left!

0

9

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

10

Toro 100355

BLADE KIT (2-100328)

$

$

Not available

11

Toro 1336

WASHER

$

$

Not available

12

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

13

Toro 101230

PULLEY

$

$

Not available

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

15

Toro 908032-6

Bolt 3/8-16 x 3/4 Hex

$

$

Currently unavailable

16

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

17

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

18

Toro 920039-4

Washer

$

$

Currently unavailable

19

Toro 8971

Jack Shaft Housing
(Superseded to 104176-01)

$

$

Not available

20

Toro 102726

INTEGRAL BEARING SHA

$171.99

$

Usually ships in 3-6 days

0

21

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

22

Toro 9466

Pulley-Drive-Upper
(Superseded to 102724)

$

$

Not available

23

Toro 9468

Pulley-Drive-Lower
(Superseded to 102723)

$122.99

$

Usually ships in 3-6 days

0

24

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

25

Toro 909539-4

Set Screw-5/16-18 x 3/8

$

$

Currently unavailable

26

Toro 8978

Bracket

$

$

Not available

27

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

28

Toro 6719

Idler Pulley
(Superseded to 92-7101)

$34.99

$

Usually ships in 3-6 days

0

29

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

30

Toro 932962-4

Pin

$

$

Currently unavailable

31

Toro 8246

Guide Belt

$

$

Not available

32

Toro 9629

Roller Arm

$

$

Not available

33

Toro 100285

ROLLER ASSY

$

$

Not available

34

Toro 920011-4

Washer

$

$

Currently unavailable

35

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

36

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

37

Toro 101443

Rod-Link

$

$

Not available

38

Toro 101439

SPRING

$

$

Not available

39

Toro 920010-4

Washer

$

$

Currently unavailable

40

Toro 933154

PIN-ROLL

$9.49

$

In Stock, only 1 left!

0

41

Toro 933505-4

Hairpin

$

$

Currently unavailable

42

Toro 101441

BUSHING

$

$

Not available

43

Toro 102610

Link-Lift
(Superseded to 8977)

$

$

Not available

44

Toro 932961-4

Clevis Pin 3/8 x 3/4

$

$

Currently unavailable

45

Toro 100055

Link-Lift-Fram
(Superseded to 8977)

$

$

Not available

46

Toro 932008-4

Hairpin

$

$

Currently unavailable

47

Toro 8975

V BELT

$

$

Not available

48

Toro 8976

Belt-55" Mower
(Superseded to 104865)

$

$

Not available

49

Toro 4570

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

50

Toro 920009-4

Washer

$

$

Currently unavailable

54

Toro 103155

DecaI-Warning

$

$

Currently unavailable

55

Toro 102985

Decal

$

$

Currently unavailable

56

Toro 5951

WASHER

$

$

Not available

22

Toro 102724

PULLEY-UPPER DRIVE

Note: Used on Models 2-0220 & 2-0230.

$

$

Not available

23

Toro 102723

PULLEY-LOWER DRIVE

Note: Used on Models 2-0220 & 2-0230.

$122.99

$

Usually ships in 3-6 days

0

51

Toro 102650

Extension-Chute

Note: Used on Models 2-0220 & 2-0230.

$

$

Currently unavailable

52

Toro 910864-4

Bolt 5/16-18 x 5/8

Note: Used on Models 2-0220 & 2-0230.

$

$

Currently unavailable

53

Toro 915112-6

Nut-Nylok

Note: Used on Models 2-0220 & 2-0230.

$

$

Currently unavailable
