2-0230 (800) - Toro Ranger Lawn Tractor (1973) 15.000 SEAT, DECALS, MISC. TRIM Parts Diagram

Ranger Lawn Tractor

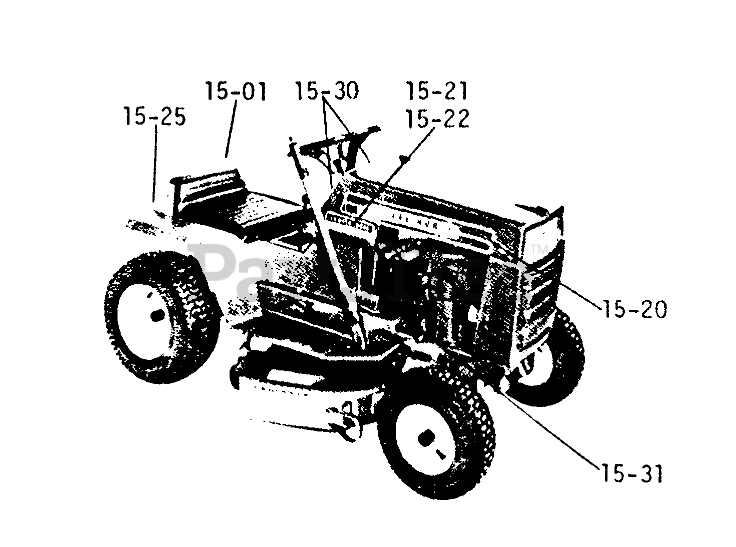

15.000 SEAT, DECALS, MISC. TRIM Parts Diagram

  • Title

15-01

Toro 8951

Cushion-Seat

$

$

Currently unavailable

Toro 101813

Cushion-Seat 8 HP

$

$

Not available

Toro 101812

Pad-Cushion 8 HP

$

$

Currently unavailable

Toro 101811

Support-Back Pad 8 HP

$

$

Currently unavailable

Toro 9665

Knob 8 HP

$

$

Not available

Toro 908003-6

Bolt, 1/4-20 x 3/4 Nylok

$

$

Currently unavailable

Toro 910837-4

Screw 1/4-20 x 5/8

$

$

Currently unavailable

Toro 920037-4

Washer

$

$

Currently unavailable

Toro 920031-4

Lockwasher 1/4

$

$

Currently unavailable

15-20

Toro 8956

DECAL

$

$

Not available

Toro 8957

DECAL

$

$

Not available

15-21

Toro 103063

Decal-Ranger 700

$

$

Currently unavailable

15-22

Toro 9777

Decal-Electric

$

$

Currently unavailable

15-30

Toro 9780

Decal-Hood R.H.

$

$

Currently unavailable

15-31

Toro 100432

Decal

$

$

Not available

Toro 102346

Decal-Ranger 800

$

$

Not available

Toro 8138

Decal
(Superseded to 83-3410)

$

$

Not available

15-32

Toro 102844

Decal

$

$

Currently unavailable

15-33

Toro 102843

Decal

$

$

Currently unavailable

15-34

Toro 9781

Decal-Hood L.H.

$

$

Not available
