2-0230 (800) - Toro Ranger Lawn Tractor (1973) 14.000 DRIVE BELT PULLEYS Parts Diagram

Ranger Lawn Tractor

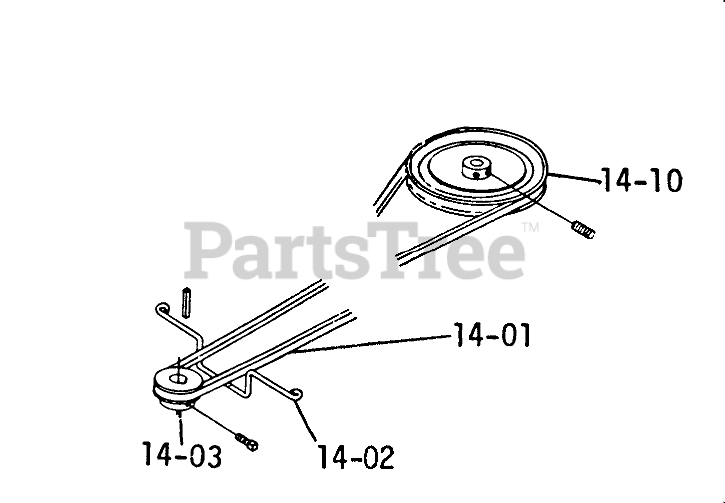

14.000 DRIVE BELT PULLEYS Parts Diagram

  • Title
14-01

Toro 8911

V BELT

$

$

Not available

14-02

Toro 8925

Guide-Belt

$

$

Not available

14-03

Toro 8909

Pulley-Engine

$

$

Not available

Toro 2590

Key
(Superseded to 5-1336)

$10.99

$

In Stock, Qty 5

0

Toro 909862-5

Set Screw

$

$

Currently unavailable

14-10

Toro 9470

Pulley-Transmission

$

$

Not available

Toro 937036

Key, #6 Woodruff 3/16 x 5/8

$

$

Currently unavailable

Toro 909540-4

Set Scew, Sq. Head

$

$

Currently unavailable
