159cc Engine

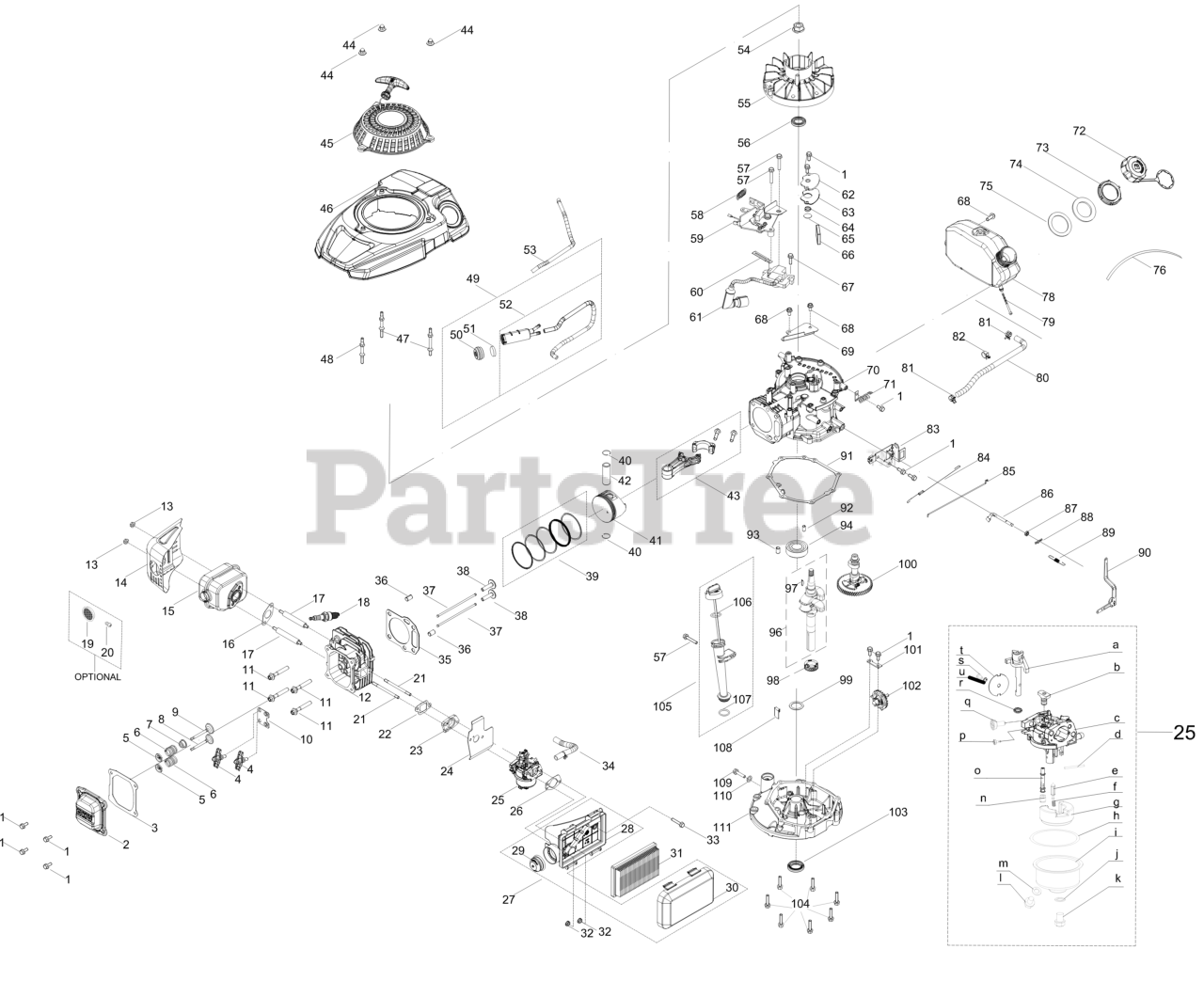

1X65VUB General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet 951-14609

VALVE COVER
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751P18586

VALVE COVER GASKET
(Superseded to 751P18586A)

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

7

Cub Cadet 921-04237

INTAKE VALVE SEAL
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 910-06185

BOLT-M8 x 54

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-14639

CYLINDER HEAD

$123.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 951-15072

MUFFLER SHIELD

$25.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-10403

MUFFLER

$82.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-14427

MUFFLER GASKET
(Superseded to 951-14427A)

$7.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-05094

STUD M6-1 x 95

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

19

Cub Cadet 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-14826

CARBURETOR STUD-M6 x 87

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-14827

CARBURETOR GASKET

$8.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-11738

CARBURETOR INSULATOR
(Superseded to 951-11738A)

$5.49

$

In Stock, only 1 left!

0

24

Cub Cadet 951-14424

CARBURETOR GASKET

$10.99

$

In Stock, only 2 left!

0

25

Cub Cadet 951-05496

CARBURETOR ASSEMBLY HY-1X65BA

$97.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 751P14825

AIR FILTER ASSEMBLY

$21.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 931-13304

AIR FILTER BASE

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 751-14751

PRIMER BULB (NON-VENTED)

$9.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 931-10202

AIR FILTER COVER

$10.99

$

In Stock, only 1 left!

0

31

Cub Cadet 951-14632

AIR FILTER
(Superseded to 951-14632A)

$15.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-04969

BOLT-M6-1 x 30 GR8.8

$4.49

$

In Stock, Qty 13

0

34

Cub Cadet 951-11520

BREATHER HOSE

$5.99

$

In Stock, only 1 left!

0

35

Cub Cadet 751P18607

CYLINDER HEAD GASKET
(Superseded to 751P18607A)

$4.99

$

In Stock, only 4 left!

0

36

Cub Cadet 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

37

Cub Cadet 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

38

Cub Cadet 951-14432

TAPPET
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$39.99

$

In Stock, only 1 left!

0

40

Cub Cadet 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-14434

PISTON
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-14435

PISTON PIN

$12.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-14436

CONNECTING ROD ASSEMBLY

$

$

Not available

44

Cub Cadet 712-04276

ACORN NUT
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

45

Cub Cadet 951-05360

RECOIL STARTER ASSEMBLY
(Superseded to 951-05360A)

$57.99

$

In Stock, Qty 19

0

46

Cub Cadet 631P05655

BLOWER HOUSING

$16.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-14397

STARTER/SHROUD REAR STUD

$9.99

$

In Stock, only 1 left!

0

48

Cub Cadet 951-14398

STARTER/SHROUD FRONT STUD

$9.99

$

In Stock, only 1 left!

0

49

Cub Cadet 751P17988

CARBON CANISTER

$16.99

$

In Stock, only 1 left!

0

50

Cub Cadet 951-14127

CARBON CANISTER FILTER CAP

$7.49

$

In Stock, only 1 left!

0

51

Cub Cadet 951-14400

CARBON CANISTER FILTER

$13.99

$

In Stock, only 1 left!

0

52

Cub Cadet 951-14629

CARBON CANISTER

$29.99

$

In Stock, only 1 left!

0

53

Cub Cadet 935-05046

CARBON CANISTER PURGE HOSE

$7.49

$

In Stock, only 1 left!

0

54

Cub Cadet 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

55

Cub Cadet 951-14401

FLYWHEEL
(Superseded to 951-14401A)

$117.99

$

In Stock, only 1 left!

0

56

Cub Cadet 951-11596

CRANKSHAFT SEAL

$6.49

$

In Stock, only 1 left!

0

57

Cub Cadet 710-04980

BOLT M6-1 x 35 GR8.8

$3.99

$

In Stock, only 1 left!

0

58

Cub Cadet 932-04546

ENGINE BRAKE SPRING

$5.99

$

In Stock, only 1 left!

0

59

Cub Cadet 951-15543

ENGINE BRAKE ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-11622

FLEXIBLE CLAMP
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 925-07281

IGNITION COIL

$49.99

$

In Stock, only 2 left!

0

62

Cub Cadet 951-14404

BREATHER COVER PLATE

$14.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 951-14405

BREATHER GASKET

$10.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

65

Cub Cadet 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

66

Cub Cadet 951-11730

BREATHER SCREEN

$5.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 710-04918

BOLT M6-1 x 20 GR8.8

$4.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 19

0

69

Cub Cadet 951-14605

AIR VANE COVER PLATE

$6.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 751P18989

CRANKCASE

$74.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-11680

FLEXIBLE CLAMP

$4.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-14407

FUEL CAP ASSEMBLY

$14.99

$

In Stock, only 4 left!

0

73

Cub Cadet 731-08104

FUEL TANK NUT

$7.49

$

In Stock, Qty 11

0

74

Cub Cadet 951-14406

FUEL TANK UPPER GROMMET

$12.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 731-08133

FUEL TANK LOWER GROMMET

$8.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 931-04629

FUEL TANK

$69.99

$

In Stock, Qty 10

0

79

Cub Cadet 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

80

Cub Cadet 935-05047

FUEL HOSE

$15.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

In Stock, Qty 12

0

82

Cub Cadet 723-04071

FUEL LINE SUPPORT CLAMP
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-15800

COMPONENT BRACKET

$5.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-14409

THROTTLE LINKAGE SPRING

$8.99

$

In Stock, only 2 left!

0

85

Cub Cadet 951-14410

THROTTLE LINKAGE

$8.49

$

In Stock, only 1 left!

0

86

Cub Cadet 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

88

Cub Cadet 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

89

Cub Cadet 951-14411

GOVERNOR SPRING

$9.99

$

In Stock, only 1 left!

0

90

Cub Cadet 951-05485

GOVERNOR ARM ASSEMBLY

$7.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 751P18609

CRANKCASE COVER GASKET
(Superseded to 751P18609A)

$5.99

$

In Stock, only 1 left!

0

92

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-11369

BEARING

$34.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 751-18992

CRANKSHAFT
(Superseded to 751P18992)

$61.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 9

0

98

Cub Cadet 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

99

Cub Cadet 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-11741

CAMSHAFT ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

In Stock, only 1 left!

0

103

Cub Cadet 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

104

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

105

Cub Cadet 951-05438

OIL DIPSTICK ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

106

Cub Cadet 921-04795

O-RING
(Superseded to 921-04795A)

$3.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 921-04697

O-RING

$3.49

$

Usually ships in 3-6 days

0

108

Cub Cadet 951-11733

OIL RETURN SEAL

$4.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 11

0

110

Cub Cadet 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

111

Cub Cadet 951-14418

CRANKCASE COVER

$

$

Not available

25

Cub Cadet 951-05496

CARBURETOR ASSEMBLY HY-1X65BA

$97.99

$

Usually ships in 3-6 days

0

a

Throttle Shaft

$

$

Not available

b

Idle Jet Assembly

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Cub Cadet 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

e

Cub Cadet 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 9

0

f

Cub Cadet 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

g

Float

$

$

Not available

h

Cub Cadet 721-04710

FLOAT BOWL O-RING
(Superseded to 721-04710A)

$2.49

$

In Stock, Qty 10

0

i

Cub Cadet 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

j

Cub Cadet 721-04709

FLOAT BOWL GASKET

$0.99

$

Usually ships in 3-6 days

0

k

Fuel Bowl Mounting Bolt

$

$

Not available

l

Fuel Drain Plug

$

$

Not available

m

Fuel Drain Plug Gasket

$

$

Not available

n

Main Jet

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Idle Mixture Screw

$

$

Not available

q

Idle Speed Adjusting Screw

$

$

Not available

r

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

s

Screw M3×6 Throttle Plate

$

$

Not available

t

Throttle Plate

$

$

Not available

U

Throttle Plate Lock Washer

$

$

Not available

Cub Cadet 752Z1X65VUB

COMPLETE ENGINE 159cc
(Superseded to 952Z1X65VUB)

$

$

Not available
