1X65RH - MTD 159cc Engine 1X65RH General Assembly Parts Diagram

159cc Engine

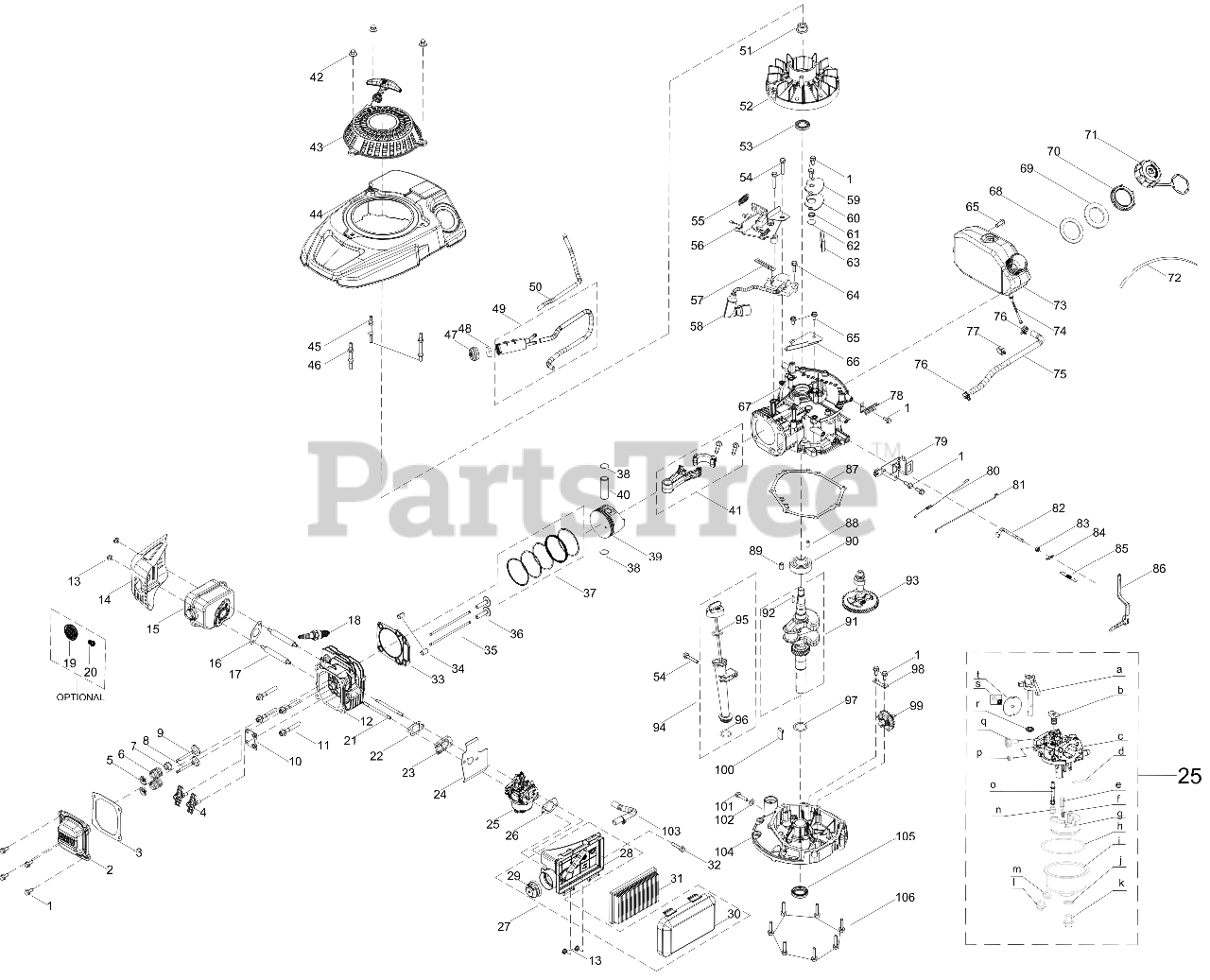

1X65RH General Assembly Parts Diagram

  • Title

1

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

MTD 951-14609

VALVE COVER
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

3

MTD 951-11551

VALVE COVER GASKET

$10.99

$

In Stock, only 4 left!

0

4

MTD 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

5

MTD 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

6

MTD 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

7

MTD 921-04237

INTAKE VALVE SEAL
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

8

MTD 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

9

MTD 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

10

MTD 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

11

MTD 910-06185

BOLT-M8 x 54

$6.99

$

Usually ships in 3-6 days

0

12

MTD 951-14639

CYLINDER HEAD

$123.99

$

Usually ships in 3-6 days

0

13

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

14

MTD 951-15072

MUFFLER SHIELD

$25.99

$

Usually ships in 3-6 days

0

15

MTD 951-10403

MUFFLER

$82.99

$

Usually ships in 3-6 days

0

16

MTD 951-14427

MUFFLER GASKET
(Superseded to 951-14427A)

$7.49

$

In Stock, only 1 left!

0

17

MTD 710-05094

STUD M6-1 x 95

$4.49

$

In Stock, only 2 left!

0

18

MTD 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

19

MTD 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

20

MTD 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

21

MTD 951-14826

CARBURETOR STUD-M6 x 87

$7.49

$

Usually ships in 3-6 days

0

22

MTD 951-14827

CARBURETOR GASKET

$8.49

$

Usually ships in 3-6 days

0

23

MTD 951-11738

CARBURETOR INSULATOR
(Superseded to 951-11738A)

$5.49

$

Usually ships in 3-6 days

0

24

MTD 951-14424

CARBURETOR GASKET

$10.99

$

In Stock, only 2 left!

0

25

MTD 951-05496

CARBURETOR ASSEMBLY HY-1X65BA

$97.99

$

Usually ships in 3-6 days

0

26

MTD 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

27

AIR FILTER ASSEMBLY

Note: Components Only

$

$

Not available

28

MTD 931-13304

AIR FILTER BASE

$10.99

$

Usually ships in 3-6 days

0

29

MTD 751-14747

PRIMER BULB, VENTED
(Superseded to 751P14747)

$5.99

$

Usually ships in 3-6 days

0

30

MTD 931-10202

AIR FILTER COVER

$10.99

$

In Stock, only 1 left!

0

31

MTD 951-14632

AIR FILTER
(Superseded to 951-14632A)

$15.99

$

In Stock, only 3 left!

0

31

MTD 490-200-M075

Genuine Factory Parts AIR FILTER
(Superseded to 490-950-Y049)

Note: Retail Packaged Part

$18.99

$

Usually ships in 3-6 days

0

32

MTD 710-04969

BOLT-M6-1 x 30 GR8.8

$4.49

$

In Stock, only 3 left!

0

33

MTD 951-14431

CYLINDER HEAD GASKET

$16.99

$

In Stock, only 1 left!

0

34

MTD 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

35

MTD 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

36

MTD 951-14432

TAPPET
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$39.99

$

In Stock, only 2 left!

0

38

MTD 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

39

MTD 951-14434

PISTON
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

40

MTD 951-14435

PISTON PIN

$12.99

$

Usually ships in 3-6 days

0

41

MTD 951-14436

CONNECTING ROD ASSEMBLY

$

$

Not available

42

MTD 712-04276

ACORN NUT
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

43

MTD 951-05360

RECOIL STARTER ASSEMBLY
(Superseded to 951-05360A)

$57.99

$

In Stock, only 2 left!

0

44

MTD 931-05112

ENGINE SHROUD ASSEMBLY

$35.99

$

Usually ships in 3-6 days

0

45

MTD 951-14397

STARTER/SHROUD REAR STUD

$9.99

$

Usually ships in 3-6 days

0

46

MTD 951-14398

STARTER/SHROUD FRONT STUD

$9.99

$

Usually ships in 3-6 days

0

47

MTD 951-14127

CARBON CANISTER FILTER CAP

$7.49

$

Usually ships in 3-6 days

0

48

MTD 951-14400

CARBON CANISTER FILTER

$13.99

$

Usually ships in 3-6 days

0

49

MTD 751-15529

FOAM CANISTER
(Superseded to 751P15529)

$12.99

$

Usually ships in 3-6 days

0

50

MTD 935-05046

CARBON CANISTER PURGE HOSE

$7.49

$

In Stock, only 1 left!

0

51

MTD 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

52

MTD 951-14401

FLYWHEEL
(Superseded to 951-14401A)

$117.99

$

In Stock, only 1 left!

0

53

MTD 951-11596

CRANKSHAFT SEAL

$6.49

$

In Stock, only 1 left!

0

54

MTD 710-04980

BOLT M6-1 x 35 GR8.8

$3.99

$

In Stock, only 1 left!

0

55

MTD 932-04546

ENGINE BRAKE SPRING

$5.99

$

In Stock, only 1 left!

0

56

MTD 951-15543

ENGINE BRAKE ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

57

MTD 951-11622

FLEXIBLE CLAMP
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

58

MTD 925-07281

IGNITION COIL

$49.99

$

Usually ships in 3-6 days

0

59

MTD 951-14404

BREATHER COVER PLATE

$14.99

$

Usually ships in 3-6 days

0

60

MTD 951-14405

BREATHER GASKET

$10.99

$

Usually ships in 3-6 days

0

61

MTD 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

62

MTD 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

63

MTD 951-11730

BREATHER SCREEN

$5.49

$

Usually ships in 3-6 days

0

64

MTD 710-04918

BOLT M6-1 x 20 GR8.8

$4.49

$

Usually ships in 3-6 days

0

65

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 3 left!

0

66

MTD 951-14605

AIR VANE COVER PLATE

$6.49

$

Usually ships in 3-6 days

0

67

MTD 951-14635

CRANKCASE

$191.99

$

Usually ships in 3-6 days

0

68

MTD 731-08133

FUEL TANK LOWER GROMMET

$8.49

$

Usually ships in 3-6 days

0

69

MTD 951-14406

FUEL TANK UPPER GROMMET

$12.99

$

Usually ships in 3-6 days

0

70

MTD 731-08104

FUEL TANK NUT

$7.49

$

In Stock, only 2 left!

0

71

MTD 951-14407

FUEL CAP ASSEMBLY

$14.99

$

In Stock, only 4 left!

0

72

MTD 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

73

MTD 731-12551

FUEL TANK
(Superseded to 731P12551)

$16.99

$

Usually ships in 3-6 days

0

74

MTD 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

74

MTD 490-202-M006

Genuine Factory Parts FUEL FILTER

Note: Retail Packaged Part

$6.99

$

In Stock, Qty 11

0

75

MTD 935-05047

FUEL HOSE

$15.99

$

Usually ships in 3-6 days

0

76

MTD 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

77

MTD 723-04071

FUEL LINE SUPPORT CLAMP
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

78

MTD 951-11680

FLEXIBLE CLAMP

$4.49

$

Usually ships in 3-6 days

0

79

MTD 951-15800

COMPONENT BRACKET

$5.99

$

Usually ships in 3-6 days

0

80

MTD 951-14409

THROTTLE LINKAGE SPRING

$8.99

$

In Stock, only 2 left!

0

81

MTD 951-14410

THROTTLE LINKAGE

$8.49

$

In Stock, only 1 left!

0

82

MTD 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

83

MTD 951-11574

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

84

MTD 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

85

MTD 951-14411

GOVERNOR SPRING

$9.99

$

Usually ships in 3-6 days

0

86

MTD 951-05485

GOVERNOR ARM ASSEMBLY

$7.99

$

Usually ships in 3-6 days

0

87

MTD 951-14415

CRANKCASE COVER GASKET

$14.99

$

In Stock, only 3 left!

0

88

MTD 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

89

MTD 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

90

MTD 951-11369

BEARING

$34.99

$

Usually ships in 3-6 days

0

91

MTD 951-14417

CRANKSHAFT ASSEMBLY

$212.99

$

Usually ships in 3-6 days

0

92

MTD 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

93

MTD 951-11741

CAMSHAFT ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

94

MTD 951-05438

OIL DIPSTICK ASSEMBLY

$13.99

$

In Stock, only 2 left!

0

95

MTD 921-04795

O-RING
(Superseded to 921-04795A)

$3.99

$

Usually ships in 3-6 days

0

96

MTD 921-04697

O-RING

$3.49

$

Usually ships in 3-6 days

0

97

MTD 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

98

MTD 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

99

MTD 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

100

MTD 951-11733

OIL RETURN SEAL

$4.99

$

In Stock, only 1 left!

0

101

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, only 3 left!

0

102

MTD 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

103

MTD 951-11520

BREATHER HOSE

$5.99

$

Usually ships in 3-6 days

0

104

MTD 951-14418

CRANKCASE COVER

$

$

Not available

105

MTD 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, only 2 left!

0

106

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

a

Throttle Shaft

$

$

Not available

b

Idle Jet Assembly

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Float Pin

$

$

Not available

e

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

f

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

g

Float

$

$

Not available

h

MTD 721-04710

FLOAT BOWL O-RING
(Superseded to 721-04710A)

$2.49

$

In Stock, only 2 left!

0

i

MTD 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

j

MTD 721-04709

FLOAT BOWL GASKET

$0.99

$

Usually ships in 3-6 days

0

k

Fuel Bowl Mounting Bolt

$

$

Not available

l

Fuel Drain Plug

$

$

Not available

m

Fuel Drain Plug Gasket

$

$

Not available

n

Main Jet

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Idle Mixture Screw

$

$

Not available

q

Idle Speed Adjusting Screw

$

$

Not available

r

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

s

Screw M3×6 Throttle Plate

$

$

Not available

t

Throttle Plate

$

$

Not available

MTD 752Z1X65RH

COMPLETE ENGINE 159cc

$

$

Currently unavailable
