1X 221 LHP (31AM2T6D756) - Cub Cadet 1X 21" Snow Thrower (2013) Shroud, Chute & Handle Parts Diagram

1X 21" Snow Thrower

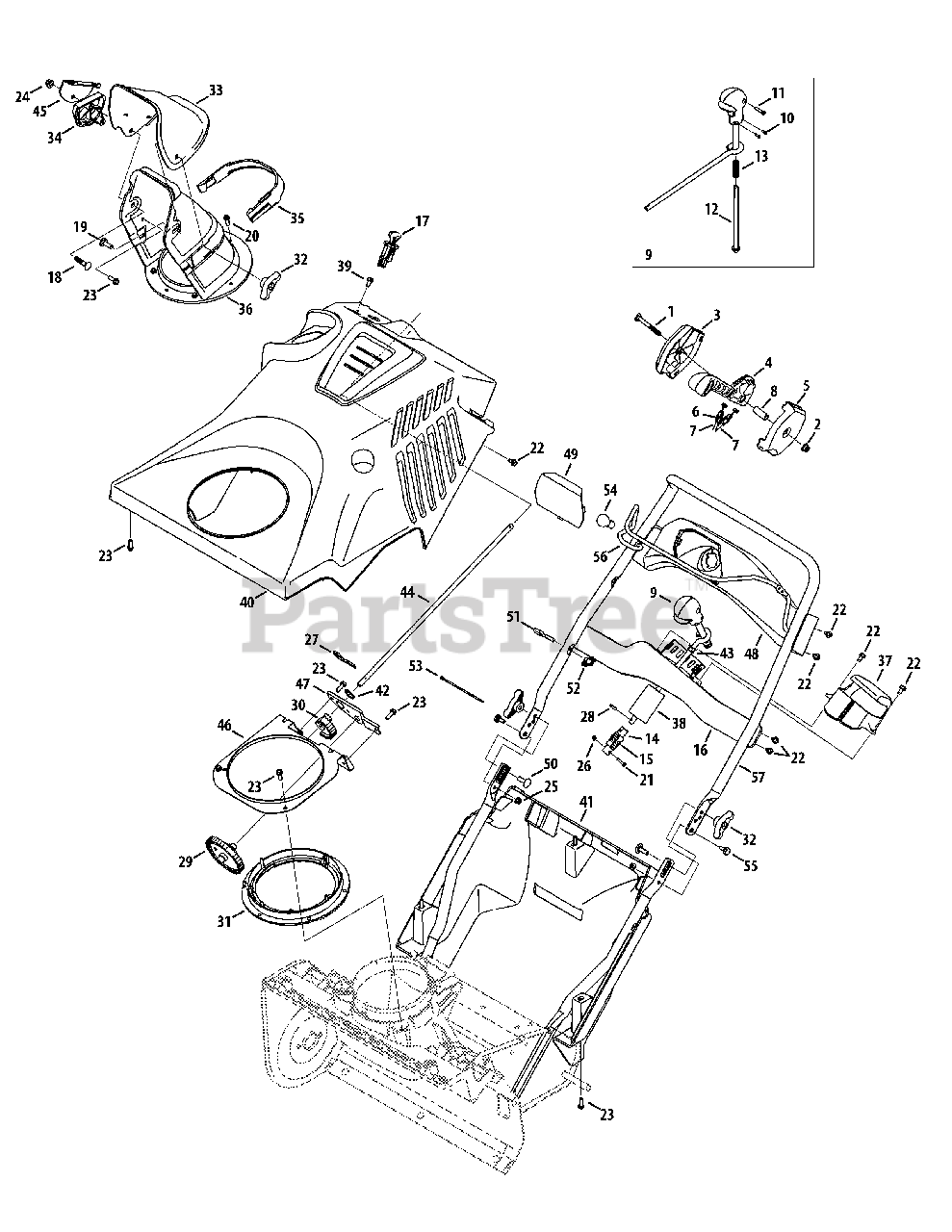

Shroud, Chute & Handle Parts Diagram

  • Title

1

Cub Cadet 710-05163

Carriage Bolt, 5/16-18 x 2.5

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 731-07651

Chute Control Panel

$9.49

$

In Stock, Qty 8

0

4

Cub Cadet 731-07654B

Cable Handle Guide

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-07656A

Chute Control Panel, Inner

$8.99

$

In Stock, Qty 5

0

6

Cub Cadet 731-07868

Cable Clip

$3.49

$

In Stock, only 2 left!

0

7

Cub Cadet 946-04722

Cable

$28.99

$

In Stock, Qty 9

0

8

Cub Cadet 750-05414A

Spacer, .325 ID x .496 OD x 1.34

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 631-04526P

Chute Control Assembly

$92.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-04352

Screw, #6 x .375

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-08018

Chute Rod

$8.99

$

In Stock, only 1 left!

0

13

Cub Cadet 732-04789

Spring, .460 OD x 1.469

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

15

Cub Cadet 715-0150

Roll Pin, 3/16 Dia. x 1.1 LG.

$4.49

$

In Stock, Qty 17

0

16

Cub Cadet 684-04383-0637

Indicator Bracket Assembly

$103.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$14.99

$

In Stock, only 1 left!

0

17

Cub Cadet 951-10630

Key

Note: (not shown) (Replaces 731-05632)

$6.99

$

In Stock, Qty 7

0

18

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 13

0

19

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-05179A

Screw, #8-32 x .875

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$6.49

$

In Stock, Qty 5

0

24

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04035

Hex Lock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 714-04003

Cotter Pin

$8.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 715-04095

Pin, .156 x .875

$5.49

$

In Stock, only 2 left!

0

29

Cub Cadet 717-04941

Bevel Gear, 40T/11T

$19.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 717-04940

Spur Gear, 35T

$13.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 917-04844B

Bevel Gear, 95T

$35.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 720-04122

Wing Knob, 5/16-18

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

34

Cub Cadet 731-06451

Cable Guide

$4.99

$

In Stock, only 1 left!

0

35

Cub Cadet 731-07708

Chute Plug

$13.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-07957

Chute Cover

$12.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 720-04174

Grip, 1.18 x 3.33

$8.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

40

Cub Cadet 759-04314A

Top Cover
(Superseded to 759-04314B)

$152.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 731-07725

Bottom Cover
(Superseded to 731-07725B)

$56.99

$

In Stock, only 1 left!

0

42

Cub Cadet 736-04161

Flat Washer, .75 x 1.00 x .06

$6.99

$

In Stock, only 1 left!

0

43

Cub Cadet 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 747-05299A

Chute Rod

$15.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

46

Cub Cadet 790-00471

Gear Retainer Bracket

$21.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 790-00416

Gear Mounting Plate

$5.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 931-04504

Handle Panel Assembly

$53.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 731-07784

Handle Panel Lens

$10.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.99

$

In Stock, only 1 left!

0

51

Cub Cadet 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, only 1 left!

0

52

Cub Cadet 720-0279

Handle Knob, 1/4-20

$4.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

54

Cub Cadet 925-1629

Lamp

$11.99

$

In Stock, Qty 14

0

55

Cub Cadet 738-04419A

Shoulder Screw, .375 x .148 x 1/4-20

$4.49

$

In Stock, Qty 11

0

56

Cub Cadet 747-05327C-0637

Auger Bail

$16.99

$

In Stock, only 1 left!

0

57

Cub Cadet 749-04693B-0637

Upper Handle

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-04139

Harness Assembly

Note: (Not Shown)

$23.99

$

Usually ships in 3-6 days

0
