1X 221 L (31AM2T6D756) - Cub Cadet 1X 21" Snow Thrower (2013) 370-JUA Crankcase Parts Diagram

1X 21" Snow Thrower

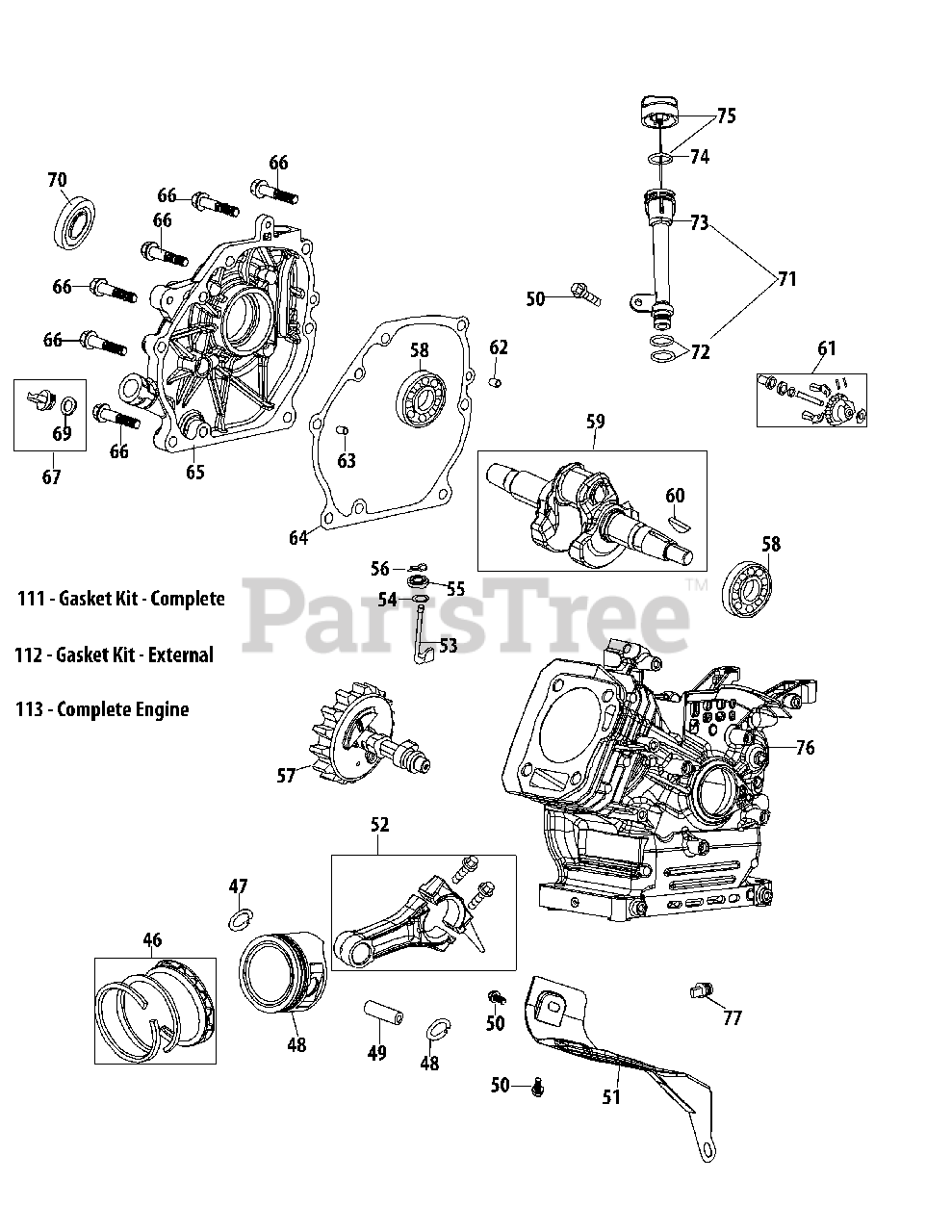

370-JUA Crankcase Parts Diagram

  • Title

46

Cub Cadet 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 10

0

47

Cub Cadet 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 2 left!

0

48

Cub Cadet 951-12007

Piston

$35.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 19

0

51

Cub Cadet 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

53

Cub Cadet 751-14053

Governor Arm Shaft
(Superseded to 951-14053)

$15.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-04461

Washer 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

56

Cub Cadet 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

57

Cub Cadet 951-11575

Camshaft Assembly

$65.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-11369

Radial Ball Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-12102

Crankshaft Kit

Note: (Incl.58,70 & 78)

$144.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 9

0

61

Cub Cadet 951-11576

Governor Gear/Shaft Assembly
(Superseded to 751P11576A)

$3.49

$

In Stock, only 1 left!

0

62

Cub Cadet 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

65

Cub Cadet 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-11246

Crankcase Cover Kit
(Superseded to 951-11248A)

Note: (Incl.58,64-70)

$200.99

$

In Stock, only 1 left!

0

66

Cub Cadet 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 751-10493

Oil Fill Plug Assembly

$

$

Currently unavailable

69

Cub Cadet 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-11368

Oil Seal 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 9

0

71

Cub Cadet 951-11913

Oil Fill Tube Assembly

$16.99

$

In Stock, Qty 5

0

72

Cub Cadet 951-11381

Oil Fill Tube O-Ring

$5.49

$

In Stock, Qty 10

0

73

Cub Cadet 951-10656

Oil Fill Tube
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-11904

Oil Fill Tube O-Ring

$4.49

$

In Stock, Qty 8

0

75

Cub Cadet 951-12482

Dipstick Assembly

$15.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 751-14097

Crankcase
(Superseded to 951-14097)

$278.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-12103

Crankcase Kit

Note: (Incl.55,58,70,76 & 78)

$212.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 751-12513A

Short Block Assembly
(Superseded to 951-12513A)

Note: (Incl. 6,22,27-29,40,42,43,46-49,52-70,76-78)

$377.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-12514

Oil Drain Plug
(Superseded to 951-12514A)

$6.49

$

Usually ships in 3-6 days

0

111

Cub Cadet 751-12121A

Gasket Kit - Complete
(Superseded to 951-12121A)

Note: (Incl.6,22,27-29,35,40,54,55,64,70 & 78)

$58.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 751-12026A

Gasket Kit - External
(Superseded to 951-12026A)

Note: (Incl.6,22,27-29 & 35)

$31.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 952Z370-JUA

Complete Engine

$849.99

$

Usually ships in 3-6 days

0
