1X 221 L (31AM2T6D713) - Cub Cadet 1X 21" Snow Thrower (2015) 370-JUA Cylinder Head Parts Diagram

1X 21" Snow Thrower

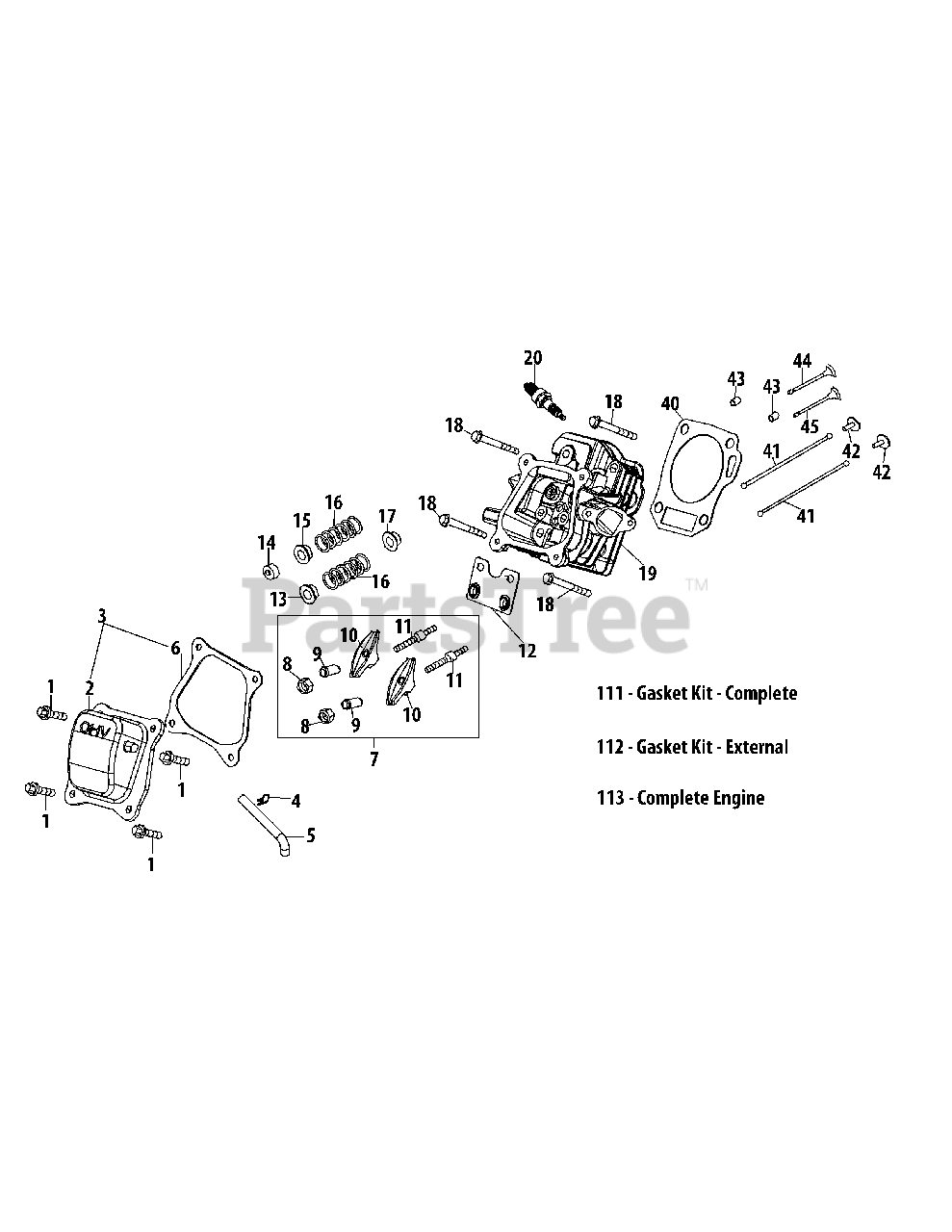

370-JUA Cylinder Head Parts Diagram

  • Title
1

Cub Cadet 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 951-12608

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-12626

Valve Cover Kit

$28.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-07059

Breather Hose

$6.49

$

In Stock, only 2 left!

0

6

Cub Cadet 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 10

0

7

Cub Cadet 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

9

Cub Cadet 751-11123

Adjusting Nut, Valve

$10.99

$

In Stock, only 4 left!

0

10

Cub Cadet 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

12

Cub Cadet 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-12000

Valve Spring Retainer (Intake)

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 951-12002

Exhaust Lash Cap
(Superseded to 751P12002A)

$2.99

$

In Stock, Qty 12

0

15

Cub Cadet 951-12003

Valve Spring Retainer (Exhaust)

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

17

Cub Cadet 951-11894

Valve Seal (Intake)

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

19

Cub Cadet 751-10722B

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Incl.6-17,19,22,27-29,40,44 & 45)

$170.99

$

In Stock, only 1 left!

0

20

Cub Cadet 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

40

Cub Cadet 951-11572

Gasket, Cylinder Head

$11.99

$

In Stock, Qty 17

0

41

Cub Cadet 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

$8.49

$

In Stock, only 4 left!

0

43

Cub Cadet 715-04108

Dowel Pin 10×16

$4.49

$

In Stock, only 1 left!

0

44

$64.99

$

Usually ships in 3-6 days

0

45

$64.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 751-12121A

Gasket Kit - Complete
(Superseded to 951-12121A)

Note: (Incl.6,22,27-29,35,40,54,55,64,70 & 78)

$58.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 751-12026A

Gasket Kit - External
(Superseded to 951-12026A)

Note: (Incl.6,22,27-29 & 35)

$31.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 952Z370-JUA

Complete Engine

$849.99

$

Usually ships in 3-6 days

0
