1X 21 LHP (31PM2T6C710) - Cub Cadet 1X 21" Snow Thrower (2022) Handle Parts Diagram

1X 21" Snow Thrower

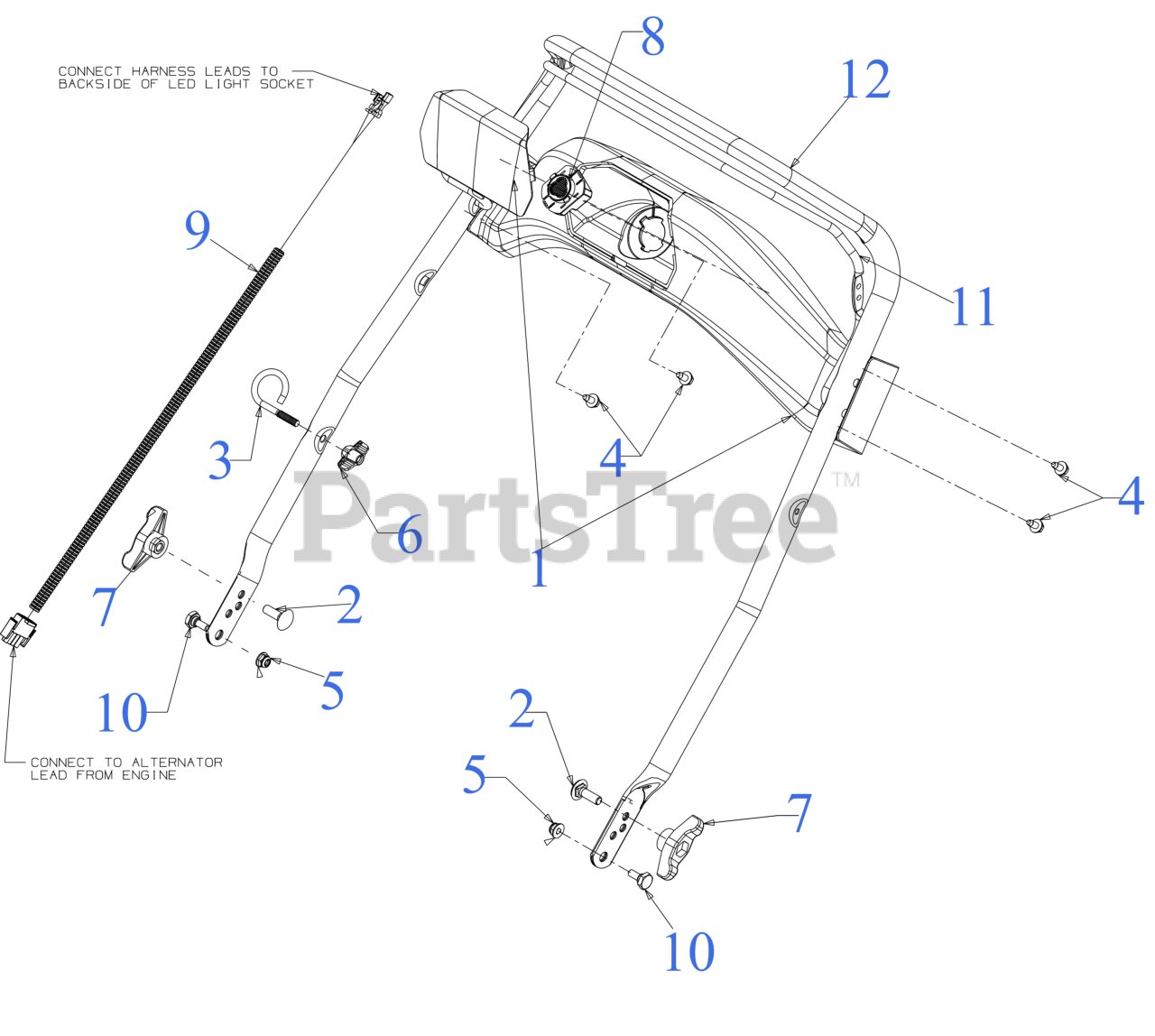

Handle Parts Diagram

  • Title

1

Cub Cadet 931-04504

HANDLE PANEL ASSEMBLY

$53.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 731-07784

HANDLE PANEL LIGHT LENS

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 777X44559

LABEL-REFLECTIVE LIGHT 21"

Note: (Not Shown)

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, Qty 5

0

3

Cub Cadet 710-05348

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 11

0

4

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, only 4 left!

0

8

Cub Cadet 925-06095A

LED HEADLIGHT & SOCKET (150 LUMNES)

$52.99

$

In Stock, only 1 left!

0

9

Cub Cadet 725P06922

HARNESS (SINGLE LIGHT)

$14.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 747-05327C

AUGER BAIL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 747-05327C-0637

Auger Bail - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

Cub Cadet 747-05327C-0638

BAIL-AUGER - MTD/TROY-BILT RED (0638)

$16.99

$

Usually ships in 3-6 days

0

Cub Cadet 747-05327C-4062

BAIL-AUGER - COOL GRAY (4062)

$16.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 749-04693D

UPPER HANDLE

Note: *CHOOSE COLOR WHEN ORDERING*

$39.99

$

Usually ships in 3-6 days

0
