1X 21 LHP (31PM2T6C710) - Cub Cadet 1X 21" Snow Thrower (2019) Chute Parts Diagram

1X 21" Snow Thrower

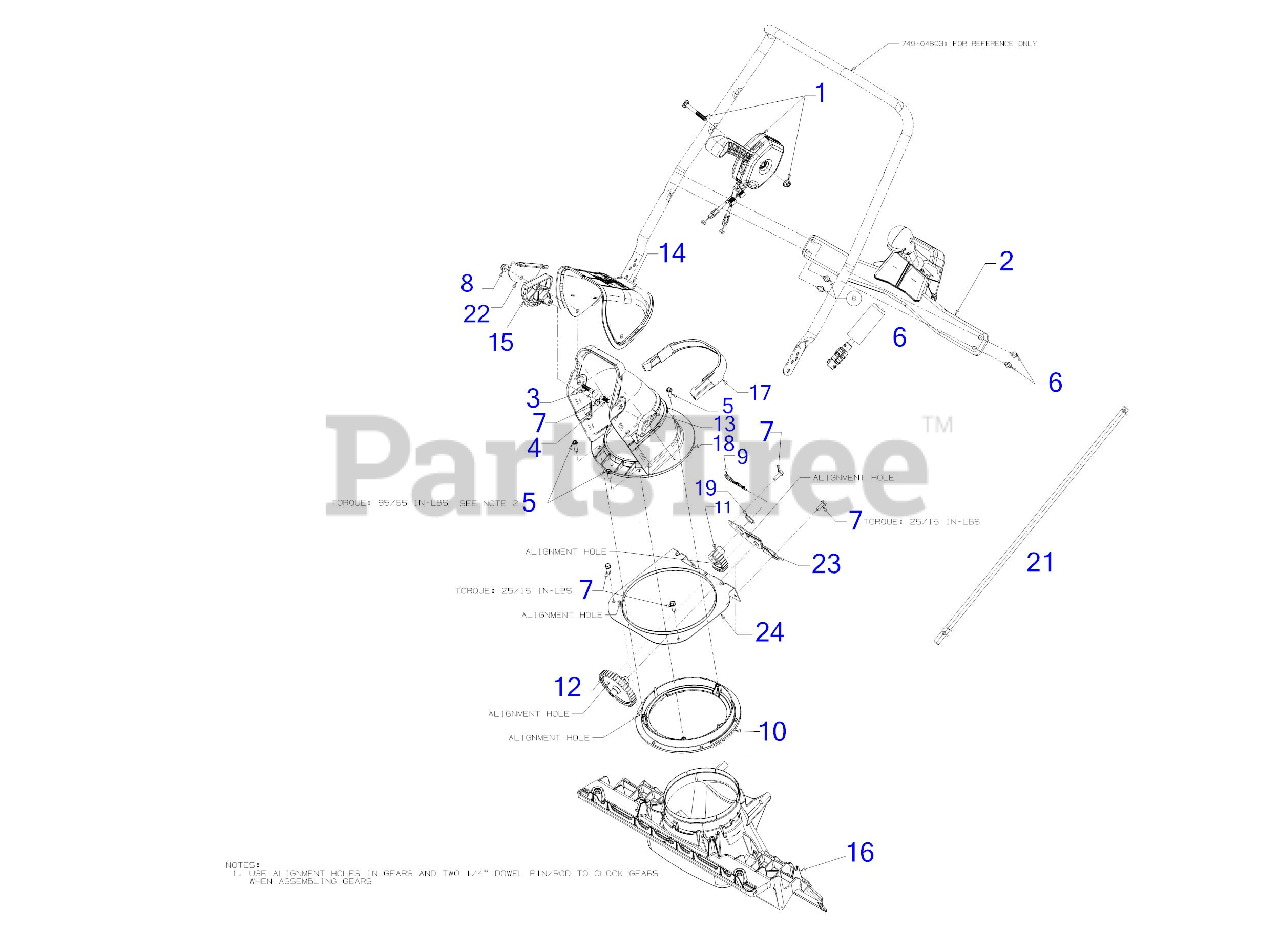

Chute Parts Diagram

  • Title
1

See Chute Tilt Control Breakdown

$

$

Not available

2

Cub Cadet 684-04401

CHUTE ROTATION HANDLE ASSEMBLY
(Superseded to 984-04401)

Note: (See Separate Breakdown)

$159.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

4

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet 714-04003

COTTER PIN .125X2.

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 917-04844B

BEVEL GEAR 95T

$35.99

$

Usually ships in 3-6 days

0

11

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 717-04941

SPUR-GEAR 40T

$19.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 12

0

14

Cub Cadet 731-04427A

UPPER REMOTE CHUTE WITH LABEL
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

15

Cub Cadet 731-06451

CABLE CHUTE GUIDE

$4.99

$

In Stock, Qty 16

0

16

Cub Cadet 931-07626B

CHUTE ADAPTER

$42.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-07708

CHUTE PLUG

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 931-07753A

LOWER CHUTE 6.5

$35.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-04161

FLAT WASHER .750X1.000X.060:HD

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 747-05299A

LOWER CHUTE CRANK ROD

$15.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 784-5594-0637

CABLE BRACKET

$11.99

$

In Stock, only 3 left!

0

23

Cub Cadet 790-00416

GEAR PLATE

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 790-00471

RETAIN GEAR BRACKET

$21.99

$

Usually ships in 3-6 days

0
