1X 21 HP (31AS2S5D710) - Cub Cadet 1X 21" Snow Thrower (2015) 265-JU-12 Muffler Parts Diagram

1X 21" Snow Thrower

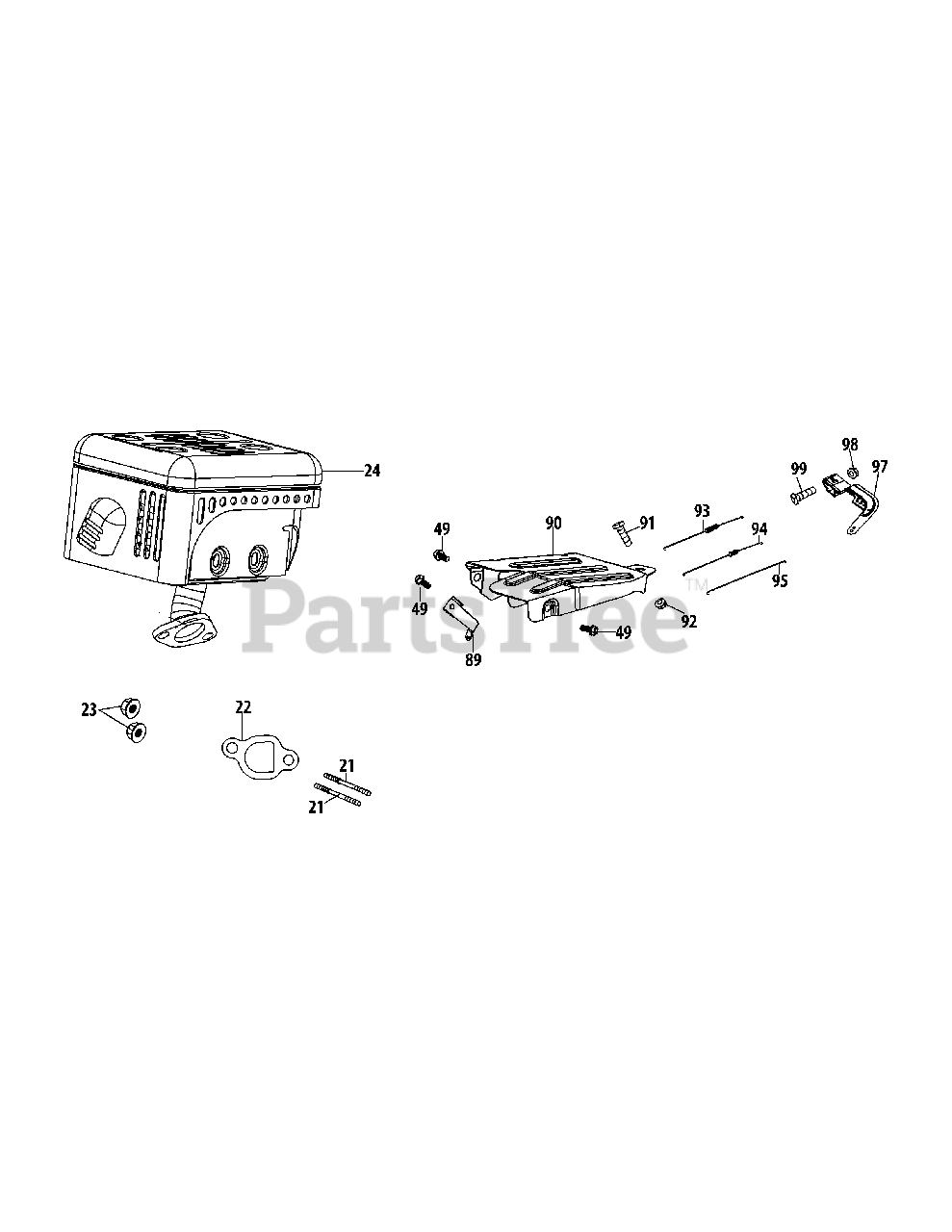

265-JU-12 Muffler Parts Diagram

  • Title

21

Cub Cadet 710-04911

Stud M8×36

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-10657

Muffler Stud Assembly

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-11289

Exhaust Pipe Gasket
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

24

Cub Cadet 951-12010

Muffler Assembly
(Superseded to 951-12010A)

$76.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

89

Cub Cadet 951-11104

Covernor Spring Bracket

$3.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 951-12016

Governor Shield

$7.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 710-04943

Bolt M6×28

$4.49

$

In Stock, only 2 left!

0

92

Cub Cadet 712-05015

Nut M6

$6.99

$

In Stock, Qty 6

0

93

Cub Cadet 951-12100

Governor Spring

$7.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-10664

Throttle Linkage Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

95

Cub Cadet 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

97

Cub Cadet 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

99

Cub Cadet 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0
