1X 21 (31AS2M5E756) - Cub Cadet 1X 21" Snow Thrower (2015) 261-JU Cylinderhead Parts Diagram

1X 21" Snow Thrower

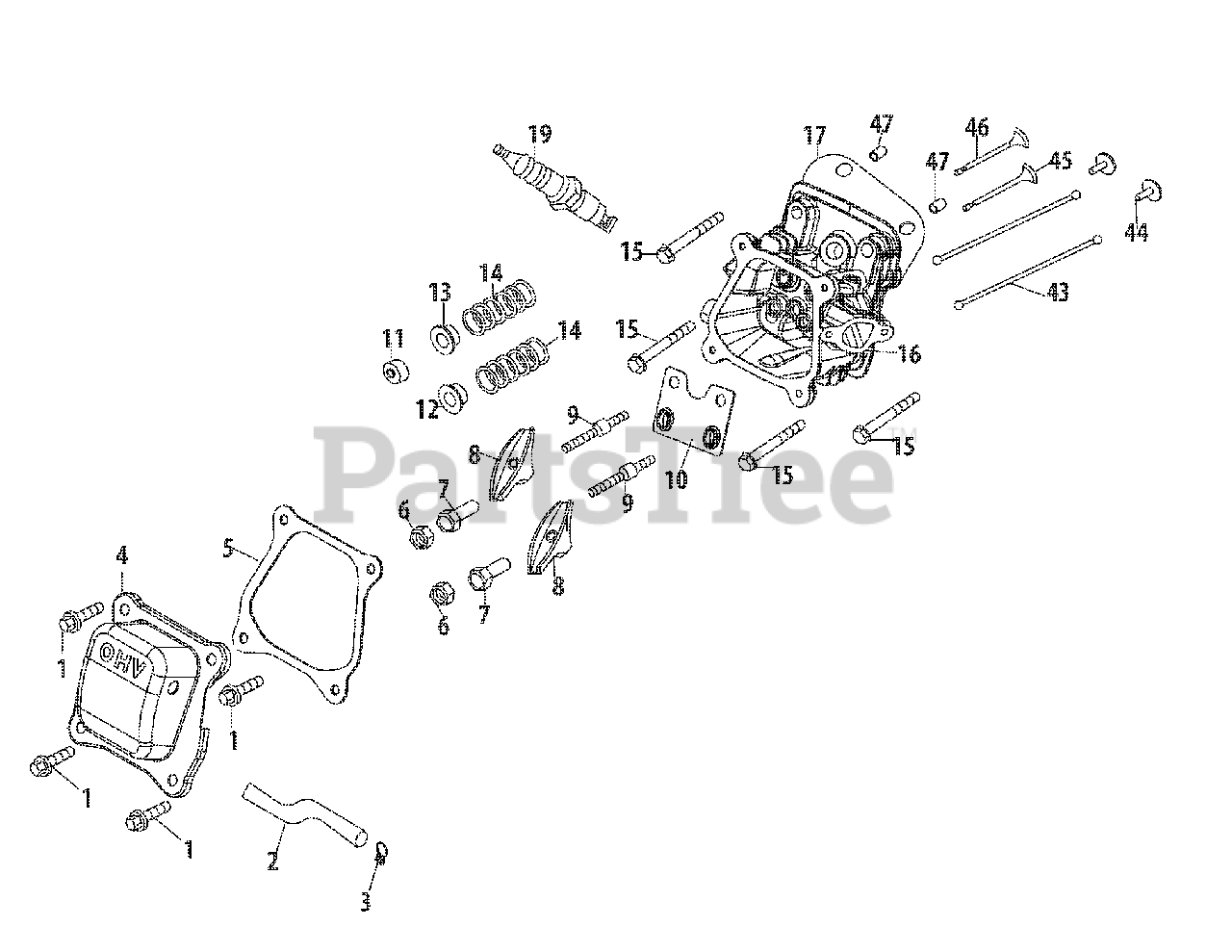

261-JU Cylinderhead Parts Diagram

  • Title
1

Cub Cadet 710-05191

Bolt M6×16
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 731-07059

Hose - Breather

$6.49

$

In Stock, only 1 left!

0

3

Cub Cadet 726-04101

Clamp - Breather Hose

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 951-11054B

Valve Cover

$15.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 12

0

6

Cub Cadet 751-11124

Pivot Locking Nut

$9.49

$

In Stock, only 2 left!

0

7

Cub Cadet 751-11123

Valve Adjusting Nut

$10.99

$

In Stock, only 4 left!

0

8

Cub Cadet 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

10

Cub Cadet 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-12002

Rotator,Exhaust Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

12

Cub Cadet 951-12000

Intake Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 951-12003

Exhaust Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 951-12004

Spring Valve
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

15

Cub Cadet 710-04922

Bolt M8×50

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 751-14088

Cylinder Head
(Superseded to 951-14088)

$81.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 951-12609

Gasket,Cylinder Head

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

43

Cub Cadet 751-11174

Push Rod
(Superseded to 951-11174)

$6.99

$

Usually ships in 3-6 days

0

$8.49

$

In Stock, only 4 left!

0

45

Cub Cadet 751-14086

Intake Vavle
(Superseded to 951-14086)

$9.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 751-14087

Exhaust Vavle
(Superseded to 951-14087)

$11.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 715-04108

Dowel Pin 10×16

$4.49

$

In Stock, only 1 left!

0
