1X 21 (31AS2M5E710) - Cub Cadet 1X 21" Snow Thrower (2015) Shroud, Chute & Handle Parts Diagram

1X 21" Snow Thrower

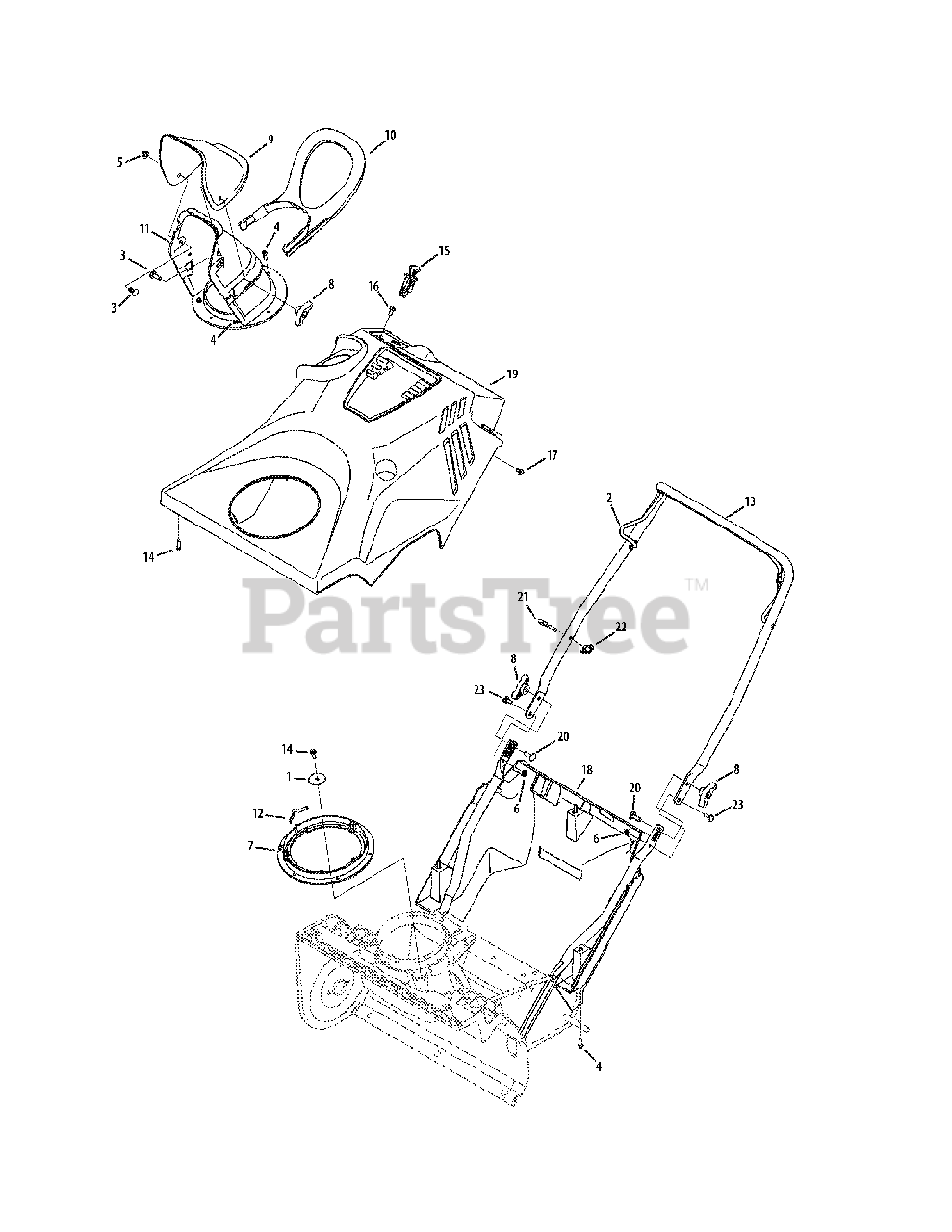

Shroud, Chute & Handle Parts Diagram

  • Title

1

Cub Cadet 736-04576

Flat Washer, .28 x 1.5 x .075

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 747-05327C-0637

Auger Bail

$16.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-08274

Chute Ring

$13.99

$

In Stock, only 1 left!

0

8

Cub Cadet 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, only 4 left!

0

9

Cub Cadet 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

10

Cub Cadet 731-07644

Chute Handle

$25.99

$

In Stock, only 1 left!

0

11

Cub Cadet 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 749-04703B-0637

Upper Handle
(Superseded to 749-04703D-0637)

$46.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 925-04031B

Ignition Switch Assembly

$41.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04187A

Hex Washer Screw, 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-07725B

Bottom Cover

$56.99

$

In Stock, only 1 left!

0

19

Cub Cadet 931-05307

Top Cover (1X 21")

$112.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 11

0

22

Cub Cadet 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 738-04419A

Shoulder Screw, 1/4-20 x .375 x .148

$4.49

$

In Stock, Qty 11

0
