1T65TU - MTD 140cc Engine 1T65TU General Assembly Parts Diagram

140cc Engine

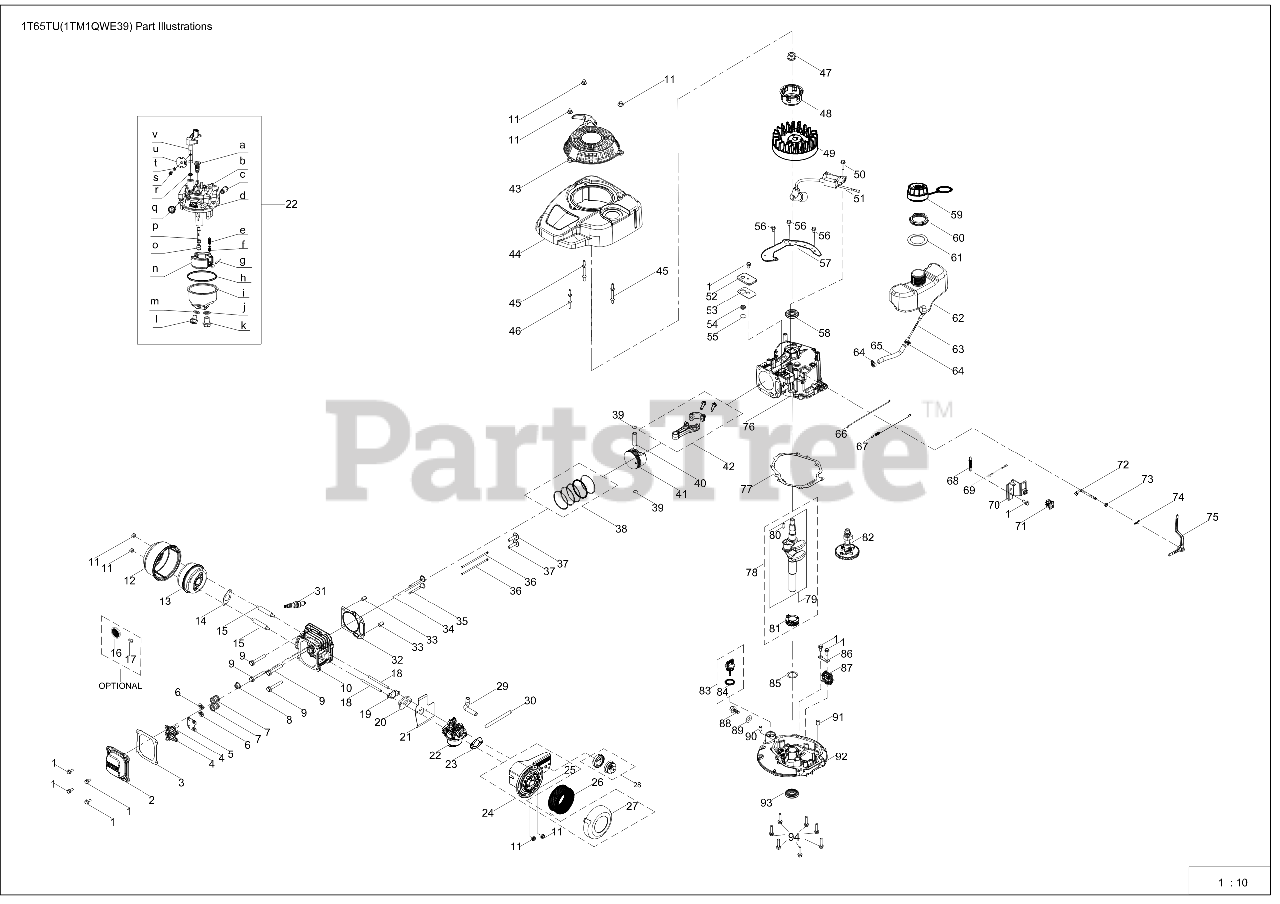

1T65TU General Assembly Parts Diagram

  • Title

1

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

MTD 908-05094

VALVE COVER

$10.99

$

Usually ships in 3-6 days

0

3

MTD 951-11551

VALVE COVER GASKET

$10.99

$

In Stock, only 4 left!

0

4

MTD 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

5

MTD 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

6

MTD 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

7

MTD 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

8

MTD 921-04705

INTAKE VALVE SEAL

$6.49

$

Usually ships in 3-6 days

0

9

MTD 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

10

MTD 951-14689

CYLINDER HEAD

$122.99

$

Usually ships in 3-6 days

0

11

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

12

MTD 951-14693

MUFFLER SHIELD
(Superseded to 951-14693A)

$27.99

$

In Stock, only 1 left!

0

13

MTD 951-14692

MUFFLER ASSEMBLY
(Superseded to 951-14692A)

$16.99

$

In Stock, only 1 left!

0

14

MTD 951-14427

MUFFLER GASKET
(Superseded to 951-14427A)

$7.49

$

In Stock, only 1 left!

0

15

MTD 710-06204

STUD M6-1 x 76

$5.99

$

In Stock, only 2 left!

0

16

MTD 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

17

MTD 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

18

MTD 710-06205

STUD M6 x 98

$6.49

$

Usually ships in 3-6 days

0

19

MTD 951-11528

CARBURETOR INSULATOR GASKET

$4.49

$

In Stock, Qty 6

0

20

MTD 951-14698

CARBURETOR INSULATOR

$10.99

$

Usually ships in 3-6 days

0

21

MTD 921-04706

CARBURETOR GASKET

$6.49

$

In Stock, only 2 left!

0

22

MTD 651-06195

CARBURETOR
(Superseded to 651P06195)

$26.99

$

In Stock, only 2 left!

0

23

MTD 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

24

MTD 651-05587

AIR FILTER ASSEMBLY
(Superseded to 651P05587)

$9.99

$

Usually ships in 3-6 days

0

25

MTD 731-10637

AIR FILTER BASE
(Superseded to 731P10637)

$2.49

$

Usually ships in 3-6 days

0

26

MTD 951-14628

PAPER AIR FILTER

$

$

Not available

26

MTD 490-200-M057

Genuine Factory Parts AIR FILTER

Note: Retail Packaged Part

$14.99

$

In Stock, only 3 left!

0

27

MTD 731-10360

AIR FILTER COVER
(Superseded to 731P10360)

$2.49

$

In Stock, only 1 left!

0

28

MTD 951-05177

VENTED PRIMER ASSEMBLY
(Superseded to 951-05177A)

$14.99

$

In Stock, only 2 left!

0

29

MTD 735-05055

BREATHER HOSE

$6.49

$

In Stock, only 1 left!

0

30

MTD 735-05056

PRIMER HOSE

$7.49

$

In Stock, only 1 left!

0

31

MTD 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

32

MTD 951-14431

CYLINDER HEAD GASKET

$16.99

$

In Stock, only 1 left!

0

33

MTD 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

34

MTD 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

35

MTD 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

36

MTD 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

37

MTD 951-11607

TAPPET (LIFTER)

$8.49

$

Usually ships in 3-6 days

0

38

MTD 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$39.99

$

In Stock, only 2 left!

0

39

MTD 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

40

MTD 951-14434

PISTON
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

41

MTD 951-14435

PISTON PIN

$12.99

$

Usually ships in 3-6 days

0

42

MTD 951-05163

CONNECTING ROD ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

43

MTD 951-05320

STARTER RECOIL ASSEMBLY
(Superseded to 951-05320A)

$65.99

$

In Stock, only 1 left!

0

44

MTD 631-05196P

ENGINE SHROUD ASSEMBLY
(Superseded to 631P05196A)

$13.99

$

Usually ships in 3-6 days

0

45

MTD 710-06208

STUD M6 x 75

$6.49

$

Usually ships in 3-6 days

0

46

MTD 710-06209

STUD M6 x 73

$6.49

$

Usually ships in 3-6 days

0

47

MTD 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

48

MTD 908-04144

START CUP

$10.99

$

Usually ships in 3-6 days

0

49

MTD 751-15755

FLYWHEEL

$38.99

$

Usually ships in 3-6 days

0

50

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

51

MTD 725-09265

IGNITION MODULE
(Superseded to 725P09265)

$22.99

$

Usually ships in 3-6 days

0

52

MTD 908-05092

BREATHER COVER PLATE

$6.49

$

Usually ships in 3-6 days

0

53

MTD 921-04703

BREATHER COVER GASKET

$7.49

$

Usually ships in 3-6 days

0

54

MTD 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

55

MTD 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

56

MTD 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

57

MTD 908-05091

COVER SHIELD PLATE

$8.49

$

Usually ships in 3-6 days

0

58

MTD 921-04700

UPPER CRANKSHAFT SEAL

$10.99

$

Usually ships in 3-6 days

0

59

MTD 951-15255

FUEL CAP W/TETHER
(Superseded to 951-15255A)

$26.99

$

In Stock, only 1 left!

0

60

MTD 931-10290

FUEL TANK NUT

$6.49

$

Usually ships in 3-6 days

0

61

MTD 951-14406

FUEL TANK UPPER GROMMET

$12.99

$

Usually ships in 3-6 days

0

62

MTD 931-10291

FUEL TANK
(Superseded to 931-10291A)

$60.99

$

Usually ships in 3-6 days

0

63

MTD 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

63

MTD 490-202-M006

Genuine Factory Parts FUEL FILTER

Note: Retail Packaged Part

$6.99

$

In Stock, Qty 11

0

64

MTD 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

65

MTD 735-05053

FUEL HOSE
(Superseded to 735-05053A)

$10.99

$

In Stock, only 1 left!

0

66

MTD 951-14696

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

67

MTD 732-05188

THROTTLE LINKAGE SPRING
(Superseded to 732P05188A)

$6.99

$

In Stock, only 2 left!

0

68

MTD 951-15570

GOVERNOR SPRING

$5.99

$

Usually ships in 3-6 days

0

69

MTD 925-06175

IGNITION SWITCH

$5.99

$

Usually ships in 3-6 days

0

70

MTD 908-05135

COMPONENT BRACKET

$9.49

$

Usually ships in 3-6 days

0

71

MTD 925-06174

IGNITION SWITCH

$12.99

$

Usually ships in 3-6 days

0

72

MTD 951-11608

GOVERNOR ARM SHAFT
(Superseded to 951-11621)

$9.99

$

Usually ships in 3-6 days

0

73

MTD 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

74

MTD 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

75

MTD 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

76

MTD 951-14686

CRANKCASE

$90.99

$

Usually ships in 3-6 days

0

77

MTD 951-14415

CRANKCASE COVER GASKET

$14.99

$

In Stock, only 3 left!

0

78

MTD 651-05815

CRANKSHAFT

$74.99

$

Usually ships in 3-6 days

0

79

MTD 951-14754

CRANKSHAFT ASSEMBLY

$101.99

$

Usually ships in 3-6 days

0

80

MTD 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

81

MTD 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

82

MTD 951-11741

CAMSHAFT ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

83

MTD 951-05161

DIPSTICK ASSEMBLY

$10.99

$

Usually ships in 3-6 days

0

84

MTD 721-04704

DIPSTICK O-RING
(Superseded to 721P04704)

$2.49

$

Usually ships in 3-6 days

0

85

MTD 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

86

MTD 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

87

MTD 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

88

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, only 3 left!

0

89

MTD 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

90

MTD 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

91

MTD 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

92

MTD 951-14688

CRANKCASE COVER

$

$

Not available

93

MTD 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, only 2 left!

0

94

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

22

MTD 651-06195

CARBURETOR
(Superseded to 651P06195)

$26.99

$

In Stock, only 2 left!

0

a

Idle Jet Assembly

Note: Not Serviceable Alone

$

$

Not available

b

Primer Port

Note: Not Serviceable Alone

$

$

Not available

c

Fuel Inlet

Note: Not Serviceable Alone

$

$

Not available

d

Carburetor Body

Note: Not Serviceable Alone

$

$

Not available

e

Needle Valve

Note: Not Serviceable Alone

$

$

Not available

f

Needle Valve Spring

Note: Not Serviceable Alone

$

$

Not available

g

Float Pin

Note: Not Serviceable Alone

$

$

Not available

h

Fuel Bowl O-Ring

Note: Not Serviceable Alone

$

$

Not available

i

Fuel Bowl

Note: Not Serviceable Alone

$

$

Not available

j

Fuel Bowl Mounting Bolt Gasket

Note: Not Serviceable Alone

$

$

Not available

k

Fuel Bowl Mounting Bolt

Note: Not Serviceable Alone

$

$

Not available

l

Fuel Drain Plug

Note: Not Serviceable Alone

$

$

Not available

m

Fuel Drain Plug Gasket

Note: Not Serviceable Alone

$

$

Not available

n

Float

Note: Not Serviceable Alone

$

$

Not available

o

Main Jet

Note: Not Serviceable Alone

$

$

Not available

p

Emulsion Tube

Note: Not Serviceable Alone

$

$

Not available

q

Idle Speed Adjusting Screw

Note: Not Serviceable Alone

$

$

Not available

r

Throttle/Choke Shaft Fiber O-Ring

Note: Not Serviceable Alone

$

$

Not available

s

Screw M3×6 Throttle Plate

Note: Not Serviceable Alone

$

$

Not available

t

MTD 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

u

Throttle Plate

Note: Not Serviceable Alone

$

$

Not available

v

Throttle Shaft

Note: Not Serviceable Alone

$

$

Not available

MTD 752Z1T65TU

COMPLETE ENGINE 140cc (1T65TU)
(Superseded to 952Z1T65TU)

$728.99

$

Usually ships in 3-6 days

0
