1T65RUC - MTD 140cc Engine 1T65RUC General Assembly Parts Diagram

140cc Engine

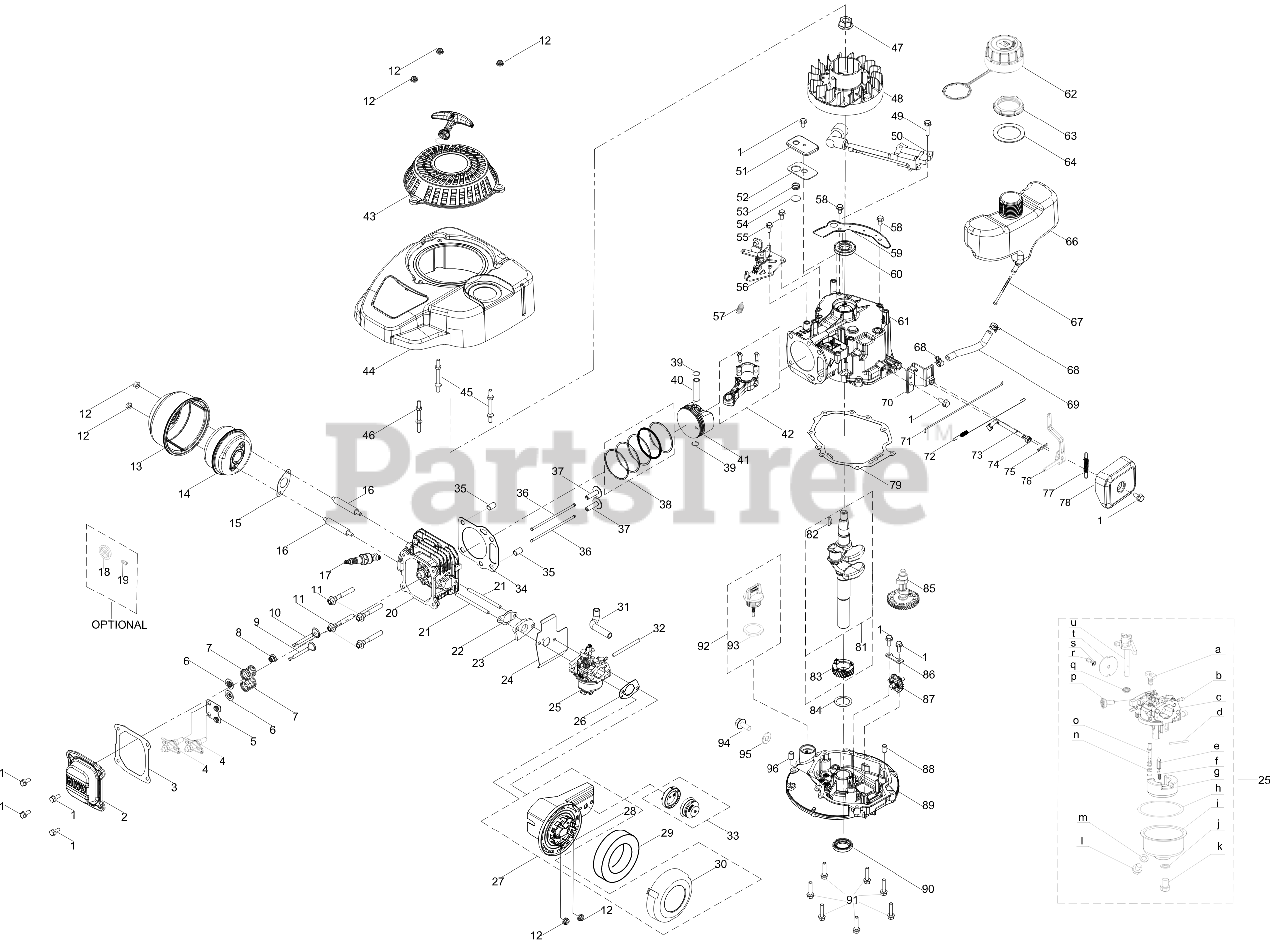

1T65RUC General Assembly Parts Diagram

  • Title

1

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

MTD 908-05094

VALVE COVER

$10.99

$

Usually ships in 3-6 days

0

3

MTD 751-18586

VALVE COVER GASKET
(Superseded to 751P18586A)

$4.49

$

In Stock, only 2 left!

0

4

MTD 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

5

MTD 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

6

MTD 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

7

MTD 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

8

MTD 921-04705

INTAKE VALVE SEAL

$6.49

$

Usually ships in 3-6 days

0

9

MTD 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

10

MTD 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

11

MTD 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

12

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

13

MTD 951-14693

MUFFLER SHIELD
(Superseded to 951-14693A)

$27.99

$

In Stock, only 1 left!

0

14

MTD 951-14692

MUFFLER ASSEMBLY
(Superseded to 951-14692A)

$16.99

$

In Stock, only 1 left!

0

15

MTD 951-14427

MUFFLER GASKET
(Superseded to 951-14427A)

$7.49

$

In Stock, only 1 left!

0

16

MTD 710-06204

STUD M6-1 x 76

$5.99

$

In Stock, only 2 left!

0

17

MTD 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

18

MTD 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

19

MTD 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

20

MTD 951-14689

CYLINDER HEAD

$122.99

$

Usually ships in 3-6 days

0

21

MTD 710-06205

STUD M6 x 98

$6.49

$

Usually ships in 3-6 days

0

22

MTD 751-18606

CARBURETOR INSULATOR GASKET
(Superseded to 751P18606)

$

$

Not available

23

MTD 951-14698

CARBURETOR INSULATOR

$10.99

$

Usually ships in 3-6 days

0

24

MTD 921-04706

CARBURETOR GASKET

$6.49

$

In Stock, only 2 left!

0

25

MTD 651-06675

CARBURETOR
(Superseded to 651P06675)

$59.99

$

Usually ships in 3-6 days

0

26

MTD 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

27

MTD 951-05226

AIR FILTER ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

28

MTD 731P10637

AIR FILTER BASE

$2.49

$

Usually ships in 3-6 days

0

29

MTD 951-14627

FOAM AIR FILTER

$10.99

$

In Stock, only 2 left!

0

29

MTD 490-200-M055

Genuine Factory Parts AIR FILTER

Note: Retail Packaged Part

$11.99

$

In Stock, Qty 5

0

30

AIR FILTER COVER

Note: Order Ref 27

$

$

Not available

31

MTD 735-05055

BREATHER HOSE

$6.49

$

In Stock, only 1 left!

0

32

MTD 735-05056

PRIMER HOSE

$7.49

$

In Stock, only 1 left!

0

33

MTD 951-05177

VENTED PRIMER ASSEMBLY
(Superseded to 951-05177A)

$14.99

$

In Stock, only 2 left!

0

34

MTD 751-18607

CYLINDER HEAD GASKET
(Superseded to 751P18607A)

$4.99

$

In Stock, only 3 left!

0

35

MTD 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

36

MTD 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

37

MTD 951-11607

TAPPET (LIFTER)

$8.49

$

Usually ships in 3-6 days

0

38

MTD 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$39.99

$

In Stock, only 2 left!

0

39

MTD 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

40

MTD 951-14435

PISTON PIN

$12.99

$

Usually ships in 3-6 days

0

41

MTD 951-14434

PISTON
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

42

MTD 951-05163

CONNECTING ROD ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

43

MTD 951-05320

STARTER RECOIL ASSEMBLY
(Superseded to 951-05320A)

$65.99

$

In Stock, only 1 left!

0

44

MTD 931-05602

ENGINE SHROUD ASSEMBLY

$28.99

$

Usually ships in 3-6 days

0

45

MTD 710-06208

STUD M6 x 75

$6.49

$

Usually ships in 3-6 days

0

46

MTD 710-06209

STUD M6 x 73

$6.49

$

Usually ships in 3-6 days

0

47

MTD 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

48

MTD 925-06190

FLYWHEEL
(Superseded to 925-06190A)

$96.99

$

Usually ships in 3-6 days

0

49

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

50

MTD 925-07231

IGNITION COIL ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

51

MTD 908-05092

BREATHER COVER PLATE

$6.49

$

Usually ships in 3-6 days

0

52

MTD 921-04703

BREATHER COVER GASKET

$7.49

$

Usually ships in 3-6 days

0

53

MTD 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

54

MTD 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

55

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 3 left!

0

56

MTD 951-05551

ENGINE BRAKE ASSEMBLY

$32.99

$

Usually ships in 3-6 days

0

57

MTD 932-05580

BRAKE SPRING

$6.49

$

In Stock, only 1 left!

0

58

MTD 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

59

MTD 908-05269

SHROUD COVER PLATE

$8.49

$

Usually ships in 3-6 days

0

60

MTD 921-04700

UPPER CRANKSHAFT SEAL

$10.99

$

Usually ships in 3-6 days

0

61

MTD 751-18608

CRANKCASE
(Superseded to 751P18608)

$78.99

$

Usually ships in 3-6 days

0

62

MTD 951-15255

FUEL CAP W/TETHER
(Superseded to 951-15255A)

$26.99

$

In Stock, only 1 left!

0

63

MTD 931-10290

FUEL TANK NUT

$6.49

$

Usually ships in 3-6 days

0

64

MTD 951-14406

FUEL TANK UPPER GROMMET

$12.99

$

Usually ships in 3-6 days

0

66

MTD 931-10291

FUEL TANK
(Superseded to 931-10291A)

$60.99

$

Usually ships in 3-6 days

0

67

MTD 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

67

MTD 490-202-M006

Genuine Factory Parts FUEL FILTER

Note: Retail Packaged Part

$6.99

$

In Stock, Qty 11

0

68

MTD 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

69

MTD 735-05053

FUEL HOSE
(Superseded to 735-05053A)

$10.99

$

In Stock, only 1 left!

0

70

MTD 908-05135

COMPONENT BRACKET

$9.49

$

Usually ships in 3-6 days

0

71

MTD 951-14696

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

72

MTD 732-05188

THROTTLE LINKAGE SPRING
(Superseded to 732P05188A)

$6.99

$

In Stock, only 2 left!

0

73

MTD 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

74

MTD 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

75

MTD 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

76

MTD 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

77

MTD 951-14411

GOVERNOR SPRING

$9.99

$

Usually ships in 3-6 days

0

78

MTD 931-10287

GOVERNOR SHIELD

$10.99

$

Usually ships in 3-6 days

0

79

MTD 751P18609

CRANKCASE COVER GASKET
(Superseded to 751P18609A)

$5.99

$

In Stock, only 2 left!

0

81

MTD 751-19708

CRANKSHAFT
(Superseded to 751P19708)

$52.99

$

Usually ships in 3-6 days

0

82

MTD 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

83

MTD 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

84

MTD 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

85

MTD 751-18628

CAMSHAFT
(Superseded to 751P18628A)

$20.99

$

Usually ships in 3-6 days

0

86

MTD 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

87

MTD 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

88

MTD 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

89

MTD 951-14688

CRANKCASE COVER

$

$

Not available

90

MTD 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, only 2 left!

0

91

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

92

MTD 951-05161

DIPSTICK ASSEMBLY

$10.99

$

Usually ships in 3-6 days

0

93

MTD 721P04704

DIPSTICK O-RING

$2.49

$

Usually ships in 3-6 days

0

94

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, only 3 left!

0

95

MTD 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

96

MTD 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

a

Idle Jet Assembly

$

$

Not available

b

Primer Port

$

$

Not available

c

Carburetor Body

$

$

Not available

d

MTD 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

e

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

f

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

g

Float

$

$

Not available

h

MTD 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

i

MTD 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

j

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

k

MTD 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, only 4 left!

0

l

MTD 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, only 1 left!

0

m

MTD 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

n

Main Jet

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Idle Speed Adjusting Screw

$

$

Not available

q

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

r

Screw M3×6 Throttle Plate

$

$

Not available

s

MTD 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

t

Throttle Plate

$

$

Not available

u

Throttle Shaft

$

$

Not available

MTD 952Z1T65RUC

COMPLETE ENGINE 140cc

$679.99

$

Usually ships in 3-6 days

0
