1T65RUB - Cub Cadet 140cc Engine 1T65RUB General Assembly Parts Diagram

140cc Engine

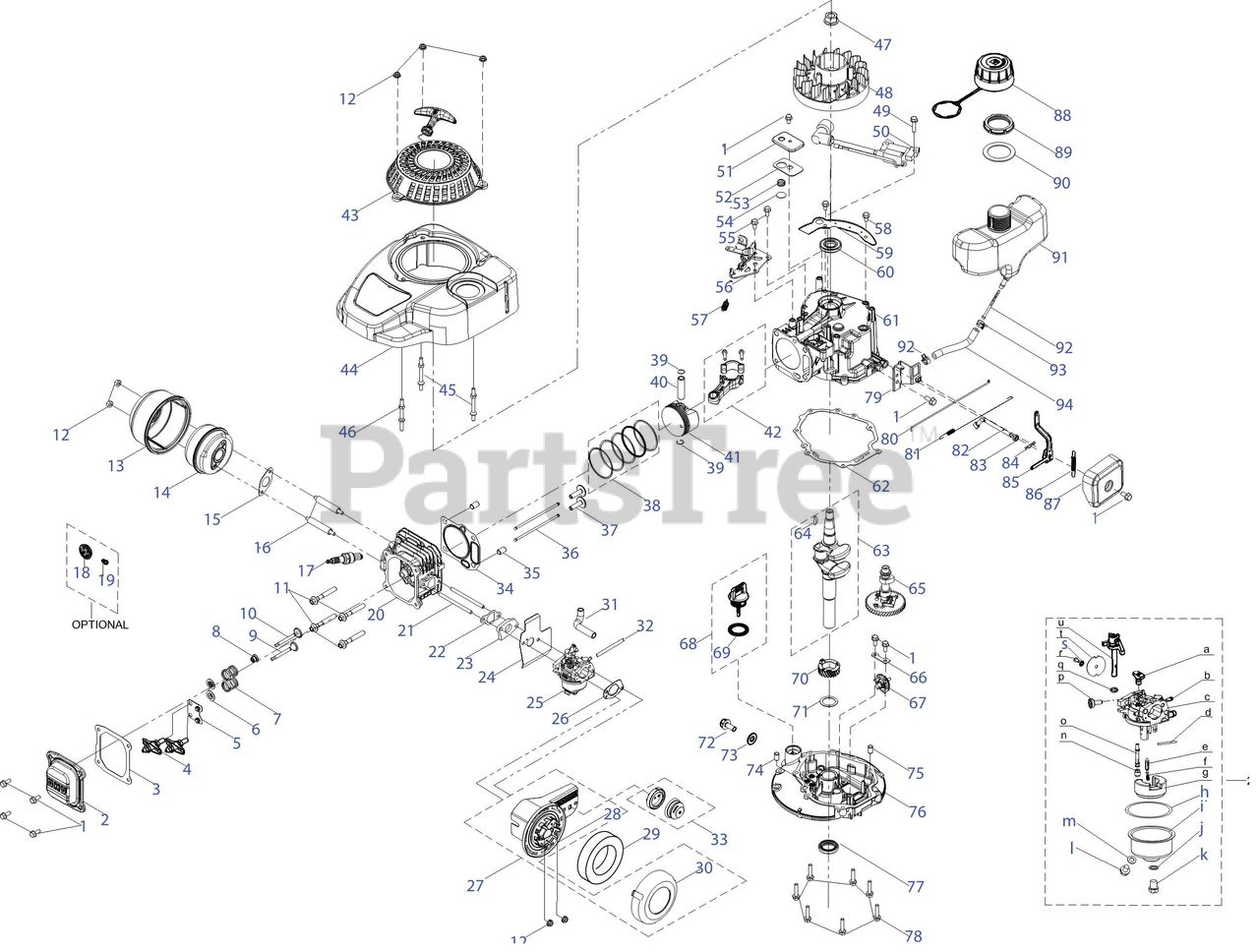

1T65RUB General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

Bolt M6x14

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 908-05094

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

4

Cub Cadet 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

8

Cub Cadet 921-04705

Intake Valve Seal

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-14641

Exhaust Valve
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-14640

Intake Valve
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06200

Bolt M8x54 Cylinder Head

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-05015

Nut M6X10

$6.99

$

In Stock, Qty 6

0

13

Cub Cadet 951-14693

Muffler Shield
(Superseded to 951-14693A)

$27.99

$

In Stock, only 1 left!

0

14

Cub Cadet 951-14692

Muffler Assembly
(Superseded to 951-14692A)

$16.99

$

In Stock, only 1 left!

0

15

Cub Cadet 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$7.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-06204

Muffler Stud M6x76

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet 951-14437

Spark Plug/F5RTC

$8.49

$

In Stock, Qty 20+

0

18

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-14689

Cylinder Head

$122.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-06205

Carb Stud M6x98

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-11528

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 7

0

23

Cub Cadet 951-14698

Carburetor Insulator

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 921-04706

Carburetor Gasket

$6.49

$

In Stock, only 2 left!

0

25

Cub Cadet 951-05221

Carburetor Assembly

$103.99

$

In Stock, only 1 left!

0

26

Cub Cadet 951-14419

Air Filter Base Gasket
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-05226

Air Filter Assembly

$17.99

$

Usually ships in 3-6 days

0

28

Air Filter Base

Note: Order Ref 27

$

$

Not available

29

Cub Cadet 951-14627

Air Filter Element, Foam

$10.99

$

In Stock, Qty 20+

0

30

Air Filter Cover

Note: Order Ref 27

$

$

Not available

31

Cub Cadet 735-05055

Breather Hose

$6.49

$

In Stock, only 1 left!

0

32

Cub Cadet 735-05056

Primer Hose

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet 951-05177

Primer Assembly, Vented
(Superseded to 951-05177A)

$14.99

$

In Stock, only 2 left!

0

34

Cub Cadet 951-14431

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

35

Cub Cadet 715-04108

Cylinder Head Dowel Pin 10x16

$4.49

$

In Stock, only 1 left!

0

36

Cub Cadet 747-04862

Push Rod

$6.49

$

In Stock, Qty 6

0

37

Cub Cadet 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-14433

Piston Ring Set
(Superseded to 951-14433A)

$39.99

$

In Stock, only 1 left!

0

39

Cub Cadet 951-11603

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-14435

Piston Pin

$12.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-14434

Piston
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-05163

Connecting Rod Assembly

$17.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-05320

Starter Recoil Assembly
(Superseded to 951-05320A)

$65.99

$

In Stock, only 1 left!

0

44

Cub Cadet 931-05602

Engine Shroud Assembly

$28.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-06208

Shroud Stud M6x75

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-06209

Shroud Stud M6x73

$6.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

48

Cub Cadet 925-06190

Flywheel
(Superseded to 925-06190A)

$96.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-04919

Bolt M6x25

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 925-07231

Ignition Coil Assembly

$73.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 908-05092

Breather Cover Plate

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 921-04703

Breather Gasket

$7.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 732-04718

Breather Valve Spring

$4.49

$

In Stock, only 1 left!

0

54

Cub Cadet 951-11614

Breather Valve

$4.49

$

In Stock, only 1 left!

0

55

Cub Cadet 710-04915

Bolt M6x12

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 951-05551

Brake Assembly

$32.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 932-05580

Brake Spring

$6.49

$

In Stock, only 1 left!

0

58

Cub Cadet 710-04914

Bolt M6x10

$4.49

$

In Stock, only 3 left!

0

59

Cub Cadet 908-05269

Shroud Cover Plate

$8.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 921-04700

Upper Crankshaft Seal

$10.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 951-14686

Crankcase

$90.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-14415

Crankcase Cover Gasket

$14.99

$

In Stock, Qty 14

0

63

Cub Cadet 951-14687

Crankshaft Assembly

$97.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

65

Cub Cadet 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11549

Governor Gear/Shaft Assembly

$12.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-05161

Dipstick Assembly

$10.99

$

Usually ships in 3-6 days

0

69

Dipstick Seal

Note: Order Ref 68

$

$

Not available

70

Cub Cadet 931-10288

Timing Gear
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 13

0

73

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

74

Cub Cadet 715-04096

Crankcase Cover Dowel Pin 9x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 715-04092

Crankcase Cover Dowel Pin 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-14688

Crankcase Cover

$

$

Not available

77

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

78

Cub Cadet 710-04943

Bolt M6x28

$4.49

$

In Stock, only 2 left!

0

79

Cub Cadet 908-05135

Component Bracket

$9.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-14696

Throttle Linkage

$7.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 732-05188

Throttle Linkage Spring
(Superseded to 732P05188A)

$6.99

$

In Stock, only 2 left!

0

82

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

84

Cub Cadet 714-04078

Governor Arm Shaft Cotter Pin

$4.49

$

In Stock, only 1 left!

0

85

Cub Cadet 951-05160A

Governor Arm Assembly

$6.49

$

In Stock, only 1 left!

0

86

Cub Cadet 951-14411

Governor Spring

$9.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 931-10287

Governor Shield

$10.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 951-15255

Fuel Cap Assembly
(Superseded to 951-15255A)

$26.99

$

In Stock, only 1 left!

0

89

Cub Cadet 931-10290

Fuel Tank Nut

$6.49

$

Usually ships in 3-6 days

0

90

Cub Cadet 951-14406

Fuel Tank Upper Grommet

$12.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 931-10291

Fuel Tank
(Superseded to 931-10291A)

$60.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-12296

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

93

Cub Cadet 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 735-05053

Fuel Hose
(Superseded to 735-05053A)

$10.99

$

In Stock, only 1 left!

0

a

Idle Jet Assembly

$

$

Not available

b

Primer Port

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Float Pin

$

$

Not available

e

Needle Valve

$

$

Not available

f

Needle Valve Spring

$

$

Not available

g

Float

$

$

Not available

h

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

i

Cub Cadet 908-05001

Fuel Bowl

$8.49

$

In Stock, only 1 left!

0

j

Cub Cadet 951-11348

Fuel Bowl Mounting Bolt Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

k

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

l

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

m

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

n

Main Jet

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Idle Speed Adjusting Screw

$

$

Not available

q

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

r

Screw M3x6 Throttle Plate

$

$

Not available

s

Cub Cadet 736-04638

Throttle Plate Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

t

Throttle Plate

$

$

Not available

u

Throttle Shaft

$

$

Not available

Cub Cadet 952Z1T65RUB

Complete Engine
(Superseded to 952Z1T65RUC)

$679.99

$

Usually ships in 3-6 days

0
