1T65RS - MTD 140cc Engine 1T65RS General Assembly Parts Diagram

140cc Engine

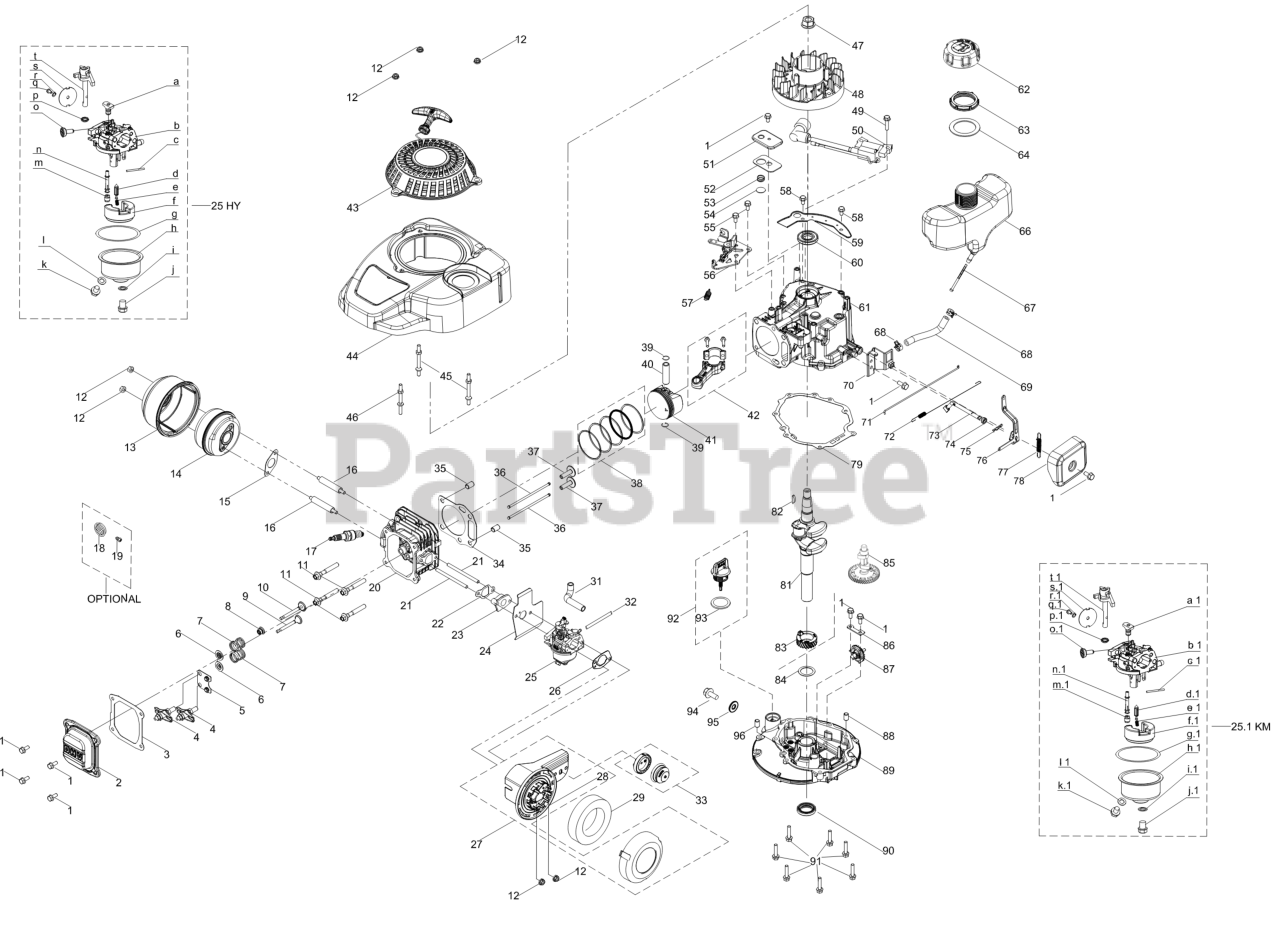

1T65RS General Assembly Parts Diagram

  • Title

1

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

2

MTD 908-05094

VALVE COVER

$10.99

$

Usually ships in 3-6 days

0

3

MTD 751P18586A

VALVE COVER GASKET

$4.49

$

In Stock, Qty 11

0

4

MTD 951-11606A

ROCKER ARM

$33.99

$

Usually ships in 3-6 days

0

5

MTD 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

6

MTD 908-04094A

VALVE RETURN SPRING

$3.99

$

Usually ships in 3-6 days

0

7

MTD 751P12004A

VALVE SPRING

$1.99

$

In Stock, Qty 5

0

8

MTD 921-04705

INTAKE VALVE SEAL

$6.49

$

Usually ships in 3-6 days

0

9

MTD 951-14641A

EXHAUST VALVE

$9.99

$

Usually ships in 3-6 days

0

10

MTD 951-14640A

INTAKE VALVE

$9.99

$

Usually ships in 3-6 days

0

11

MTD 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

12

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

13

MTD 951-14693A

MUFFLER SHIELD

$27.99

$

In Stock, only 1 left!

0

14

MTD 951-14692A

MUFFLER ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

15

MTD 951-14427A

MUFFLER GASKET

$7.49

$

In Stock, Qty 20+

0

16

MTD 710-06204

STUD M6-1 x 76

$5.99

$

In Stock, Qty 20+

0

17

MTD 951-14437A

SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

$6.99

$

In Stock, Qty 20+

0

18

MTD 951-10351A

SPARK ARRESTOR

$55.99

$

Usually ships in 3-6 days

0

19

MTD 710-09818

SPARK ARRESTOR SCREW

$1.99

$

Usually ships in 3-6 days

0

20

MTD 951-14689

CYLINDER HEAD

$122.99

$

Usually ships in 3-6 days

0

21

MTD 710-06205

STUD M6 x 98

$6.49

$

Usually ships in 3-6 days

0

22

MTD 751P18606

CARBURETOR INSULATOR GASKET

$

$

Not available

23

MTD 951-14698

CARBURETOR INSULATOR

$10.99

$

Usually ships in 3-6 days

0

24

MTD 921-04706

CARBURETOR GASKET

$6.49

$

In Stock, only 2 left!

0

25

MTD 651P06675

CARBURETOR

Note: Huyai (1T65BB) Keima(1T65B)

$59.99

$

Usually ships in 3-6 days

0

26

MTD 951-14419A

AIR FILTER BASE GASKET

$8.49

$

Usually ships in 3-6 days

0

27

MTD 951-05226

AIR FILTER ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

28

MTD 731P10637

AIR FILTER BASE

$2.49

$

Usually ships in 3-6 days

0

29

MTD 951-14627

FOAM AIR FILTER

$10.99

$

In Stock, Qty 20+

0

31

MTD 735-05055

BREATHER HOSE

$6.49

$

In Stock, only 1 left!

0

32

MTD 735-05056

PRIMER HOSE

$7.49

$

In Stock, only 1 left!

0

33

MTD 951-05177

VENTED PRIMER ASSEMBLY
(Superseded to 951-05177A)

$14.99

$

In Stock, only 2 left!

0

34

MTD 751P18607

CYLINDER HEAD GASKET
(Superseded to 751P18607A)

$4.99

$

In Stock, only 4 left!

0

35

MTD 715P04090A

PIN (10MMx16MM)

$3.49

$

Usually ships in 3-6 days

0

36

MTD 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

37

MTD 951-11607A

TAPPET

$6.99

$

Usually ships in 3-6 days

0

38

MTD 951-14433A

PISTON RING SET

$39.99

$

In Stock, only 1 left!

0

39

MTD 951-11603A

WRIST PIN CLIP

$3.49

$

Usually ships in 3-6 days

0

40

MTD 951-14435A

PISTON PIN

$10.99

$

Usually ships in 3-6 days

0

41

MTD 951-14434A

PISTION

$64.99

$

Usually ships in 3-6 days

0

42

MTD 951-05163

CONNECTING ROD ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

43

MTD 951-05320A

STARTER RECOIL ASSEMBLY

$65.99

$

In Stock, only 1 left!

0

44

MTD 931-05602

ENGINE SHROUD ASSEMBLY

$28.99

$

Usually ships in 3-6 days

0

45

MTD 710-06208

STUD M6 x 75

$6.49

$

Usually ships in 3-6 days

0

46

MTD 710-06209

STUD M6 x 73

$6.49

$

Usually ships in 3-6 days

0

47

MTD 712-04287A

FLYWHEEL NUT M14-1.5

$6.49

$

Usually ships in 3-6 days

0

48

MTD 925-06190

FLYWHEEL
(Superseded to 925-06190A)

$96.99

$

Usually ships in 3-6 days

0

49

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

50

MTD 925-07231

IGNITION COIL ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

51

MTD 908-05092

BREATHER COVER PLATE

$6.49

$

Usually ships in 3-6 days

0

52

MTD 921-04703

BREATHER COVER GASKET

$7.49

$

Usually ships in 3-6 days

0

53

MTD 732-04718A

BREATHER VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

54

MTD 951-11614A

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

55

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

56

MTD 951-05551

ENGINE BRAKE ASSEMBLY

$32.99

$

Usually ships in 3-6 days

0

57

MTD 932-05580

BRAKE SPRING

$6.49

$

In Stock, only 1 left!

0

58

MTD 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

59

MTD 908-05269

SHROUD COVER PLATE

$8.49

$

Usually ships in 3-6 days

0

60

MTD 921-04700A

UPPER SEAL

$8.49

$

Usually ships in 3-6 days

0

61

MTD 751P18608

CRANKCASE

$78.99

$

Usually ships in 3-6 days

0

62

MTD 651P05182

FUEL CAP ASSEMBLY

$2.99

$

In Stock, Qty 12

0

63

MTD 931-10290A

FUEL TANK NUT

$5.99

$

Usually ships in 3-6 days

0

64

MTD 951-14406A

FUEL TANK GROMMET

$11.99

$

Usually ships in 3-6 days

0

66

MTD 731P10383

FUEL TANK

$21.99

$

Usually ships in 3-6 days

0

67

MTD 951-12296A

FUEL FILTER

$9.99

$

In Stock, Qty 20+

0

68

MTD 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

69

MTD 735-05053A

FUEL HOSE

$10.99

$

In Stock, only 1 left!

0

70

MTD 908-05135

COMPONENT BRACKET

$9.49

$

Usually ships in 3-6 days

0

71

MTD 951-14696

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

72

MTD 732-05188A

THROTTLE LINKAGE SPRING
(Superseded to 732P05188A)

$6.99

$

In Stock, only 2 left!

0

73

MTD 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

74

MTD 951-11902A

OIL SEAL

$3.99

$

In Stock, only 2 left!

0

75

MTD 714-04078A

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

76

MTD 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

77

MTD 751-22418

GOVERNOR SPRING

$

$

Not available

78

MTD 931-10287

GOVERNOR SHIELD

$10.99

$

Usually ships in 3-6 days

0

79

MTD 751P18609

CRANKCASE COVER GASKET
(Superseded to 751P18609A)

$5.99

$

In Stock, only 1 left!

0

81

MTD 751P19708

CRANKSHAFT

$52.99

$

Usually ships in 3-6 days

0

82

MTD 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 10

0

83

MTD 931-10288A

GEAR

$9.49

$

Usually ships in 3-6 days

0

84

MTD 736-04491A

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

85

MTD 751P18628

CAMSHAFT
(Superseded to 751P18628A)

$20.99

$

Usually ships in 3-6 days

0

86

MTD 951-11609A

GOVERNOR GEAR MOUNTING PLATE

$4.49

$

Usually ships in 3-6 days

0

87

MTD 951-05336A

GEAR GOVERNOR

$8.99

$

Usually ships in 3-6 days

0

88

MTD 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

89

MTD 951-14688

CRANKCASE COVER

$

$

Not available

90

MTD 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

91

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

92

MTD 951-05161

DIPSTICK ASSEMBLY

$10.99

$

Usually ships in 3-6 days

0

93

MTD 721P04704

DIPSTICK O-RING

$2.49

$

Usually ships in 3-6 days

0

94

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 13

0

95

MTD 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 2 left!

0

96

MTD 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

25HY

MTD 651P06675

CARBURETOR

Note: Huyai (1T65BB)

$59.99

$

Usually ships in 3-6 days

0

a

Idle Jet Assembly

$

$

Not available

b

Carburetor Body

$

$

Not available

c

MTD 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

d

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

e

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

f

MTD 731P09132A

FLOAT

$5.49

$

Usually ships in 3-6 days

0

g

MTD 951-11589A

FUEL BOWL O-RING

$6.99

$

In Stock, Qty 20+

0

h

Fuel Bowl

$

$

Not available

i

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

j

Fuel Bowl Mounting Bolt

$

$

Not available

k

Fuel Drain Plug

$

$

Not available

l

MTD 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

m

Main Jet

$

$

Not available

n

Emulsion Tube

$

$

Not available

o

MTD 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

p

MTD 721P04427A

THROTTLE SHAFT GASKET

$2.99

$

Usually ships in 3-6 days

0

q

Screw M3×6 Throttle Plate

$

$

Not available

r

MTD 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

s

Throttle Plate

$

$

Not available

t

Throttle Shaft

$

$

Not available

25.1

MTD 651P06675

CARBURETOR

Note: Keima(1T65B)

$59.99

$

Usually ships in 3-6 days

0

a.1

Idle Jet Assembly

$

$

Not available

b.1

Carburetor Body

$

$

Not available

c.1

MTD 711P06053A

FLOAT PIN

$2.99

$

Usually ships in 3-6 days

0

d.1

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

e.1

MTD 732P05138A

NEEDLE VALVE SPRING

$3.49

$

Usually ships in 3-6 days

0

f.1

MTD 731P09861A

FLOAT

$4.49

$

Usually ships in 3-6 days

0

g.1

MTD 951-11589A

FUEL BOWL O-RING

$6.99

$

In Stock, Qty 20+

0

h.1

Fuel Bowl

$

$

Not available

i.1

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

j.1

Fuel Bowl Mounting Bolt

$

$

Not available

k.1

Fuel Drain Plug

$

$

Not available

l.1

MTD 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

m.1

Main Jet

$

$

Not available

n.1

Emulsion Tube

$

$

Not available

o.1

MTD 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

p.1

MTD 721P04427A

THROTTLE SHAFT GASKET

$2.99

$

Usually ships in 3-6 days

0

q.1

Screw M3×6 Throttle Plate

$

$

Not available

r.1

MTD 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

s.1

Throttle Plate

$

$

Not available

t.1

Throttle Shaft

$

$

Not available

MTD 752Z1T65RS

COMPLETE ENGINE 140cc

$

$

Currently unavailable
