1T65PT - Cub Cadet 140cc Engine 1T65PT General Assembly Parts Diagram

140cc Engine

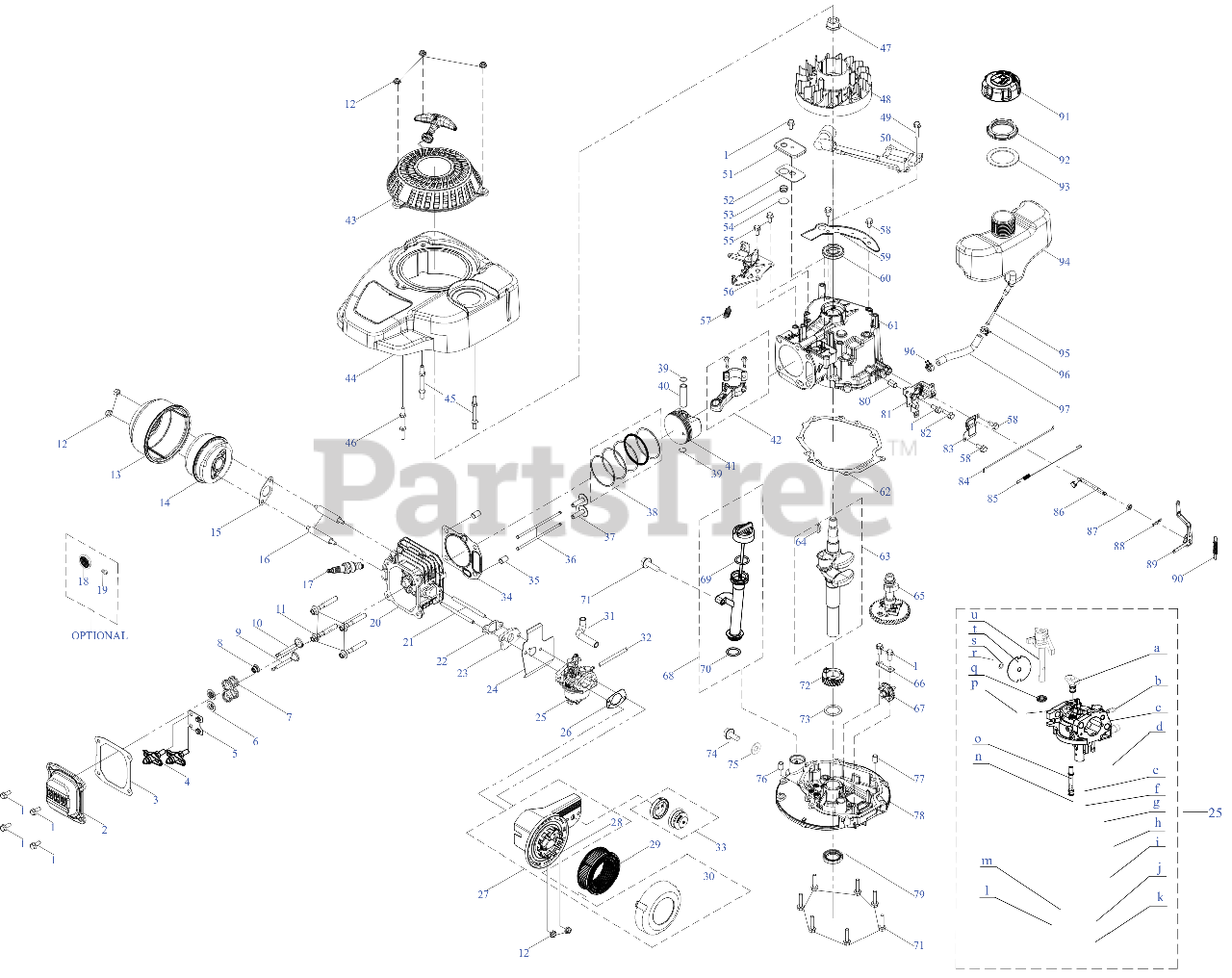

1T65PT General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 908-05094

VALVE COVER

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-11551

VALVE COVER GASKET

$10.99

$

In Stock, Qty 11

0

4

Cub Cadet 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

8

Cub Cadet 921-04705

INTAKE VALVE SEAL

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

13

Cub Cadet 951-14693

MUFFLER SHIELD
(Superseded to 951-14693A)

$27.99

$

In Stock, only 1 left!

0

14

Cub Cadet 951-14692

MUFFLER ASSEMBLY
(Superseded to 951-14692A)

$16.99

$

In Stock, only 1 left!

0

15

Cub Cadet 951-14427

MUFFLER GASKET
(Superseded to 951-14427A)

$7.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-06204

STUD M6-1 x 76

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

18

Cub Cadet 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-14689

CYLINDER HEAD

$122.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-06205

STUD M6 x 98

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-11528

CARBURETOR INSULATOR GASKET

$4.49

$

In Stock, Qty 7

0

23

Cub Cadet 951-14698

CARBURETOR INSULATOR

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 921-04706

CARBURETOR GASKET

$6.49

$

In Stock, only 2 left!

0

25

Cub Cadet 651-05592

CARBURETOR
(Superseded to 651P05592)

$38.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 651P05587

AIR FILTER ASSEMBLY

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731P10637

AIR FILTER BASE

$2.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 951-14628

PAPER AIR FILTER

$

$

Not available

30

Cub Cadet 731P10360

AIR FILTER COVER

$2.49

$

In Stock, Qty 9

0

31

Cub Cadet 735-05055

BREATHER HOSE

$6.49

$

In Stock, only 1 left!

0

32

Cub Cadet 735-05056

PRIMER HOSE

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet 951-05177

VENTED PRIMER ASSEMBLY
(Superseded to 951-05177A)

$14.99

$

In Stock, only 2 left!

0

34

Cub Cadet 951-14431

CYLINDER HEAD GASKET

$16.99

$

In Stock, only 1 left!

0

35

Cub Cadet 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

36

Cub Cadet 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

37

Cub Cadet 951-11607

TAPPET (LIFTER)

$8.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$39.99

$

In Stock, only 1 left!

0

39

Cub Cadet 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-14435

PISTON PIN

$12.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 751-15893

PISTON
(Superseded to 751P15893)

$9.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-05163

CONNECTING ROD ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-05320

STARTER RECOIL ASSEMBLY
(Superseded to 951-05320A)

$65.99

$

In Stock, only 1 left!

0

44

Cub Cadet 931-05602

ENGINE SHROUD ASSEMBLY

$28.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-06208

STUD M6 x 75

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-06209

STUD M6 x 73

$6.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

48

Cub Cadet 925-06190

FLYWHEEL
(Superseded to 925-06190A)

$96.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 925-07231

IGNITION COIL ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 908-05092

BREATHER COVER PLATE

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 921-04703

BREATHER COVER GASKET

$7.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

54

Cub Cadet 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

55

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 951-05551

ENGINE BRAKE ASSEMBLY

$32.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 932-05580

BRAKE SPRING

$6.49

$

In Stock, only 1 left!

0

58

Cub Cadet 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

59

Cub Cadet 908-05269

SHROUD COVER PLATE

$8.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 921-04700

UPPER CRANKSHAFT SEAL

$10.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 751-15894

CRANKCASE
(Superseded to 751P15894)

$73.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-14415

CRANKCASE COVER GASKET

$14.99

$

In Stock, Qty 14

0

63

Cub Cadet 751-15895

CRANKSHAFT
(Superseded to 751P15895)

$52.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

65

Cub Cadet 951-11741

CAMSHAFT ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 651-05552

DIPSTICK

$11.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 921-04795

O-RING
(Superseded to 921-04795A)

$3.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 921-04697

O-RING

$3.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 13

0

75

Cub Cadet 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

76

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 751-15897

CRANKCASE COVER
(Superseded to 751P15897)

$34.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

80

Cub Cadet 750-06824

Control Bracket Spacer
(Superseded to 750P06824)

$6.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 751-15898

VARIABLE SPEED CONTROL ASSEMBLY
(Superseded to 751P15898)

$10.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 710-04980

BOLT M6-1 x 35 GR8.8

$3.99

$

In Stock, only 1 left!

0

83

Cub Cadet 708-05343

VARIABLE SPEED CONTROL COVER
(Superseded to 708P05343)

$2.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-14696

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

85

Cub Cadet 732P05411

THROTTLE LINKAGE SPRING

$4.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

88

Cub Cadet 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

89

Cub Cadet 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

90

Cub Cadet 751-15901

GOVERNOR SPRING
(Superseded to 751P15901)

$1.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 651P05182

FUEL CAP ASSEMBLY

$2.99

$

In Stock, Qty 12

0

92

Cub Cadet 931-10290

FUEL TANK NUT

$6.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 951-14406

FUEL TANK UPPER GROMMET

$12.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 731P10383

FUEL TANK

$21.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

96

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 735-05053

FUEL HOSE
(Superseded to 735-05053A)

$10.99

$

In Stock, only 1 left!

0

a

Idle Jet Assembly

$

$

Not available

b

Primer Port

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Cub Cadet 711P06043

HINGE FLOAT PIN
(Superseded to 711-06043)

$0.99

$

Usually ships in 3-6 days

0

e

Cub Cadet 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

f

Cub Cadet 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

g

Float

$

$

Not available

h

Cub Cadet 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

i

Cub Cadet 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

j

Cub Cadet 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

k

Cub Cadet 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 13

0

l

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 10

0

m

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

n

Main Jet

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Idle Speed Adjusting Screw

$

$

Not available

q

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

r

Screw M3×6 Throttle Plate

$

$

Not available

s

Cub Cadet 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

t

Throttle Plate

$

$

Not available

u

Throttle Shaft

$

$

Not available

752Z1T65PT

COMPLETE ENGINE

$

$

Not available
