1T65NUC - Cub Cadet 140cc Engine 1T65NUC General Assembly Parts Diagram

140cc Engine

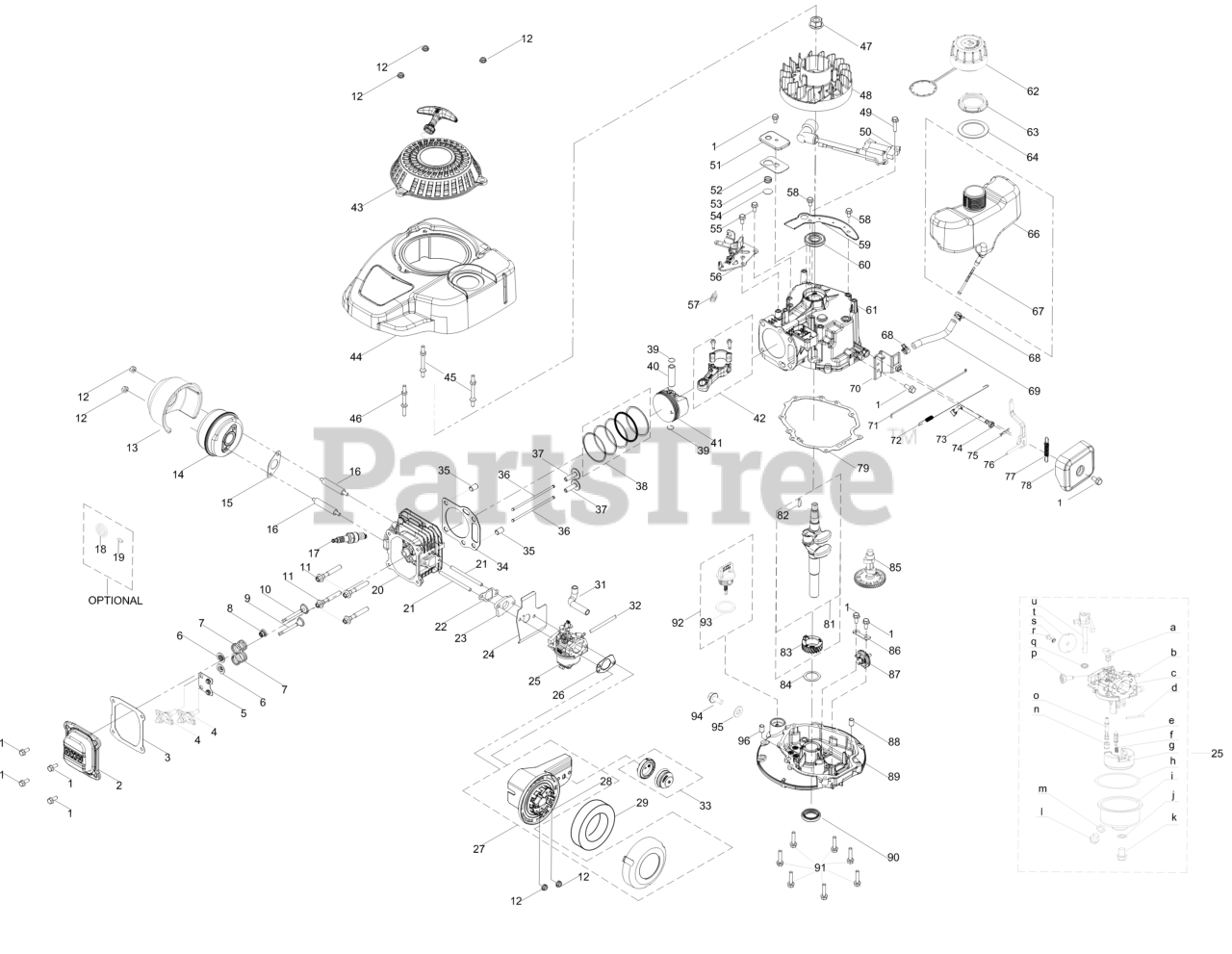

1T65NUC General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet 908-05094

VALVE COVER

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751P18586A

VALVE COVER GASKET

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 951-11606A

ROCKER ARM

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 908-04094A

VALVE RETURN SPRING

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 751P12004A

VALVE SPRING

$1.99

$

In Stock, Qty 5

0

8

Cub Cadet 921-04705

INTAKE VALVE SEAL

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-14641A

EXHAUST VALVE

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-14640A

INTAKE VALVE

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 951-14752

MUFFLER SHIELD

$13.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 951-14692A

MUFFLER ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

15

Cub Cadet 951-14427A

MUFFLER GASKET

$7.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-06204

STUD M6-1 x 76

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet 951-14437A

SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 951-10351A

SPARK ARRESTOR

$55.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-14689

CYLINDER HEAD

$122.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-06205

STUD M6 x 98

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 751P18606

CARBURETOR INSULATOR GASKET

$

$

Not available

23

Cub Cadet 951-14698

CARBURETOR INSULATOR

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 921-04706

CARBURETOR GASKET

$6.49

$

In Stock, only 2 left!

0

26

Cub Cadet 951-14419A

AIR FILTER BASE GASKET

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-05226

AIR FILTER ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731P10637

AIR FILTER BASE

$2.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 951-14627

FOAM AIR FILTER

$10.99

$

In Stock, Qty 20+

0

31

Cub Cadet 735-05055

BREATHER HOSE

$6.49

$

In Stock, only 1 left!

0

32

Cub Cadet 735-05056

PRIMER HOSE

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet 951-05177A

PRIMER ASSEMBLY

$14.99

$

In Stock, only 2 left!

0

34

Cub Cadet 751P18607

CYLINDER HEAD GASKET
(Superseded to 751P18607A)

$4.99

$

In Stock, only 4 left!

0

35

Cub Cadet 715P04090A

PIN (10MMx16MM)

$3.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

37

Cub Cadet 951-11607A

TAPPET

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-14433A

PISTON RING SET

$39.99

$

In Stock, only 1 left!

0

39

Cub Cadet 951-11603A

WRIST PIN CLIP

$3.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-14435A

PISTON PIN

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-14434A

PISTION

$64.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-05163

CONNECTING ROD ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-05320A

STARTER RECOIL ASSEMBLY

$65.99

$

In Stock, only 1 left!

0

44

Cub Cadet 931-05602

ENGINE SHROUD ASSEMBLY

$28.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-06208

STUD M6 x 75

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-06209

STUD M6 x 73

$6.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 712-04287A

FLYWHEEL NUT M14-1.5

$6.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 925-06190A

ENGINE FLYWHEEL

$96.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 925-07231

IGNITION COIL ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 908-05092

BREATHER COVER PLATE

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 921-04703

BREATHER COVER GASKET

$7.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 732-04718A

BREATHER VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-11614A

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 19

0

56

Cub Cadet 951-05551

ENGINE BRAKE ASSEMBLY

$32.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 932-05580

BRAKE SPRING

$6.49

$

In Stock, only 1 left!

0

58

Cub Cadet 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

59

Cub Cadet 908-05269

SHROUD COVER PLATE

$8.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 921-04700A

UPPER SEAL

$8.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 751P18608

CRANKCASE

$78.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-15255A

FUEL CAP W/TETHER

$26.99

$

In Stock, only 1 left!

0

63

Cub Cadet 931-10290A

FUEL TANK NUT

$5.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-14406A

FUEL TANK GROMMET

$11.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 931-10291

FUEL TANK
(Superseded to 931-10291A)

$60.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-12296A

FUEL FILTER

$9.99

$

In Stock, Qty 20+

0

68

Cub Cadet 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

In Stock, Qty 12

0

69

Cub Cadet 735-05053A

FUEL HOSE

$10.99

$

In Stock, only 1 left!

0

70

Cub Cadet 908-05135

COMPONENT BRACKET

$9.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-14696

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 732-05188

THROTTLE LINKAGE SPRING
(Superseded to 732P05188A)

$6.99

$

In Stock, only 2 left!

0

73

Cub Cadet 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-11902A

OIL SEAL

$3.99

$

In Stock, only 2 left!

0

75

Cub Cadet 714-04078A

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

77

Cub Cadet 951-14411

GOVERNOR SPRING

$9.99

$

In Stock, only 1 left!

0

78

Cub Cadet 931-10287

GOVERNOR SHIELD

$10.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 751P18609

CRANKCASE COVER GASKET
(Superseded to 751P18609A)

$5.99

$

In Stock, only 1 left!

0

81

Cub Cadet 751-19748

Crankshaft Assembly

$

$

Currently unavailable

82

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 9

0

83

Cub Cadet 931-10288A

GEAR

$9.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 736-04491A

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 751P18628

CAMSHAFT
(Superseded to 751P18628A)

$20.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-11609A

GOVERNOR GEAR MOUNTING PLATE

Note: 1

$4.49

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

In Stock, only 1 left!

0

88

Cub Cadet 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

89

Cub Cadet 951-14688

CRANKCASE COVER

$

$

Not available

90

Cub Cadet 951-11545A

LOWER CRANKSHAFT SEAL

$10.99

$

In Stock, Qty 10

0

91

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

92

Cub Cadet 951-05161

DIPSTICK ASSEMBLY

$10.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 721-04704

DIPSTICK O-RING
(Superseded to 721P04704)

$2.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 11

0

95

Cub Cadet 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

96

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 651-06675H

CARBURETOR

$

$

Not available

25.1

Cub Cadet 651-06675K

Carburetor Assembly

$

$

Currently unavailable

a

Idle Jet Assembly

$

$

Not available

b

Primer Port

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Cub Cadet 711P06043

HINGE FLOAT PIN
(Superseded to 711-06043)

$0.99

$

Usually ships in 3-6 days

0

d.1

Cub Cadet 711P06053A

FLOAT PIN

$2.99

$

Usually ships in 3-6 days

0

e

Cub Cadet 793P00165A

NEEDLE VALVE

$4.99

$

In Stock, Qty 9

0

f

Cub Cadet 732P05251A

NEEDLE VALVE SPRING

$1.99

$

Usually ships in 3-6 days

0

f.1

Cub Cadet 732P05138A

NEEDLE VALVE SPRING

$3.49

$

Usually ships in 3-6 days

0

g

Cub Cadet 731P09132A

FLOAT

$5.49

$

Usually ships in 3-6 days

0

g.1

Cub Cadet 731P09861A

FLOAT

$4.49

$

Usually ships in 3-6 days

0

h

Cub Cadet 951-11589A

FUEL BOWL O-RING

$6.99

$

In Stock, Qty 20+

0

i

Cub Cadet 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

i.1

Cub Cadet 608P05002

FUEL BOWL

$5.99

$

Usually ships in 3-6 days

0

j

Cub Cadet 951-11348A

FUEL BOWL GASKET

$5.99

$

In Stock, Qty 11

0

k

Cub Cadet 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 12

0

l

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 8

0

m

Cub Cadet 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

n

Main Jet

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

q

Cub Cadet 721P04427A

THROTTLE SHAFT GASKET

$2.99

$

Usually ships in 3-6 days

0

r

Cub Cadet 710-06230

SCREW-3Mx6

$3.49

$

Usually ships in 3-6 days

0

s

Cub Cadet 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

t

Throttle Plate

$

$

Not available

u

Throttle Shaft

$

$

Not available

Cub Cadet 752Z1T65NUC

COMPLETE ENGINE

$

$

Currently unavailable
