1P70MC - Troy-Bilt Engine Engine Assembly 1P70MC Parts Diagram

Engine

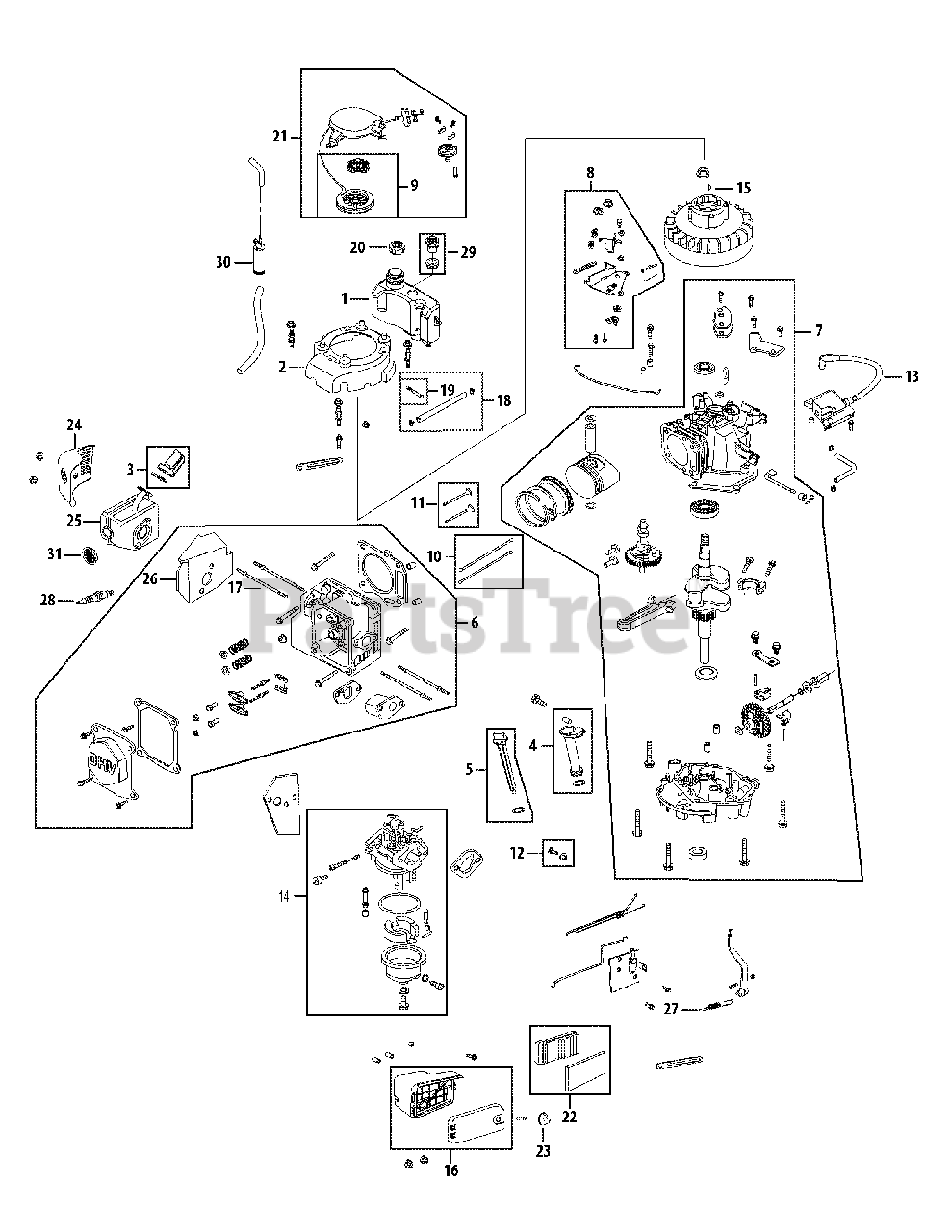

Engine Assembly 1P70MC Parts Diagram

  • Title

1

Troy-Bilt 951-10438

Fuel Tank

$

$

Not available

2

Troy-Bilt 951-10369

Flywheel Shroud

$53.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 951-10840

Reed Valve Assembly

$

$

Not available

4

Troy-Bilt 951-10334

Oil Filler Tube Assembly

$22.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 951-10863

Dipstick Assembly

$15.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 951-10413

Cylinder Head Complete
(Superseded to 951-10413B)

$187.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 951-10867

Short Block Assembly
(Superseded to 951-12724)

$348.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 951-10321

Stop Switch and Brake Assembly
(Superseded to 951-10321A)

$39.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 951-10319

Recoil Spring and Pulley Assembly

$47.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 951-10344

Push Rod Kit

$18.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 951-10370

Oil Drain Plug and Washer Assembly

$9.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 951-10366

Ignition Coil

$104.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 951-10862

Carburetor Assembly

$97.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

16

Troy-Bilt 951-10865

Air Cleaner Housing Assembly Complete

$37.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 951-10342

Muffler Stud Assembly

$9.99

$

In Stock, Qty 10

0

18

Troy-Bilt 951-10364

Fuel Line Kit - Inc. hoses, clamps & filter

$28.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 951-10440

Fuel Cap

$20.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 951-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$69.99

$

In Stock, Qty 9

0

22

Troy-Bilt 951-10298

Air Cleaner Kit

$17.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 951-10297

Air Cleaner Thumb Screw

$5.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 951-10411

Muffler Guard

$31.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 951-10864

Muffler

$

$

Not available

26

Troy-Bilt 951-10402

Muffler Gasket /Heat Shield

$19.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 951-10387

Governor Return Spring

$7.49

$

In Stock, Qty 10

0

28

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 951-10869

Roll Over Valve Assembly

$16.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 951-10443

Carbon Canister
(Superseded to 951-14126)

$31.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10868

Carburetor Repair Kit - Major

Note: Not Shown

$61.99

$

In Stock, only 1 left!

0

Troy-Bilt 951-10870

Cylinder Head Service Kit

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10416

Gasket Kit - Complete
(Superseded to 951-10416A)

Note: Not Shown

$

$

Not available

Troy-Bilt 951-10417

Gasket Kit - External
(Superseded to 951-10417A)

Note: Not Shown

$44.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z1P70MC

Engine - Complete
(Superseded to 952Z5P70MU)

Note: Not Shown

$548.99

$

Usually ships in 3-6 days

0
