1P70L0A - Troy-Bilt Engine 1P70L0A Cylinder Head Parts Diagram

Engine

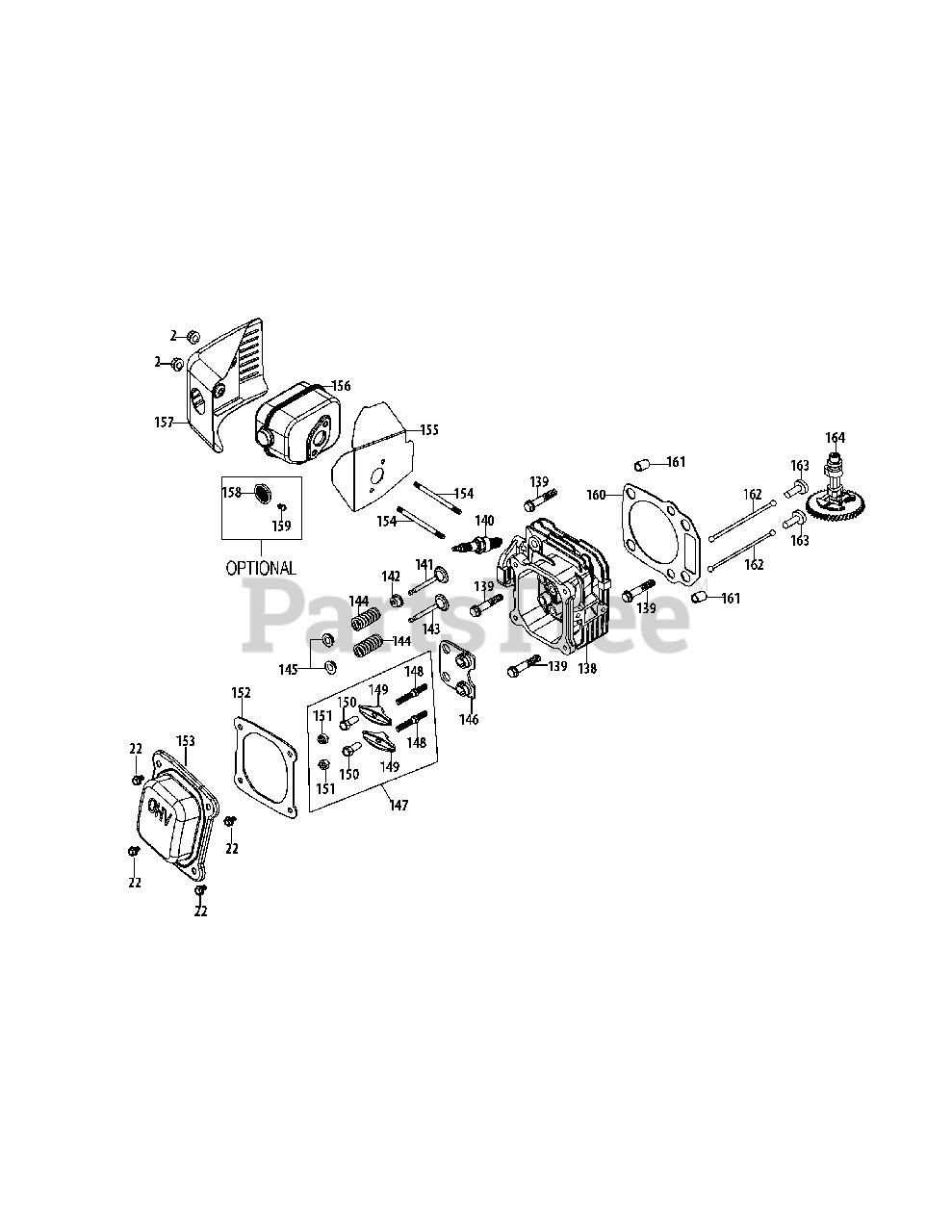

1P70L0A Cylinder Head Parts Diagram

  • Title
2

Troy-Bilt 712-04212

Nut M6X10Mm Starter/Carb/Muffler
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

138

Troy-Bilt 951-10413A

Cylinder Head Assembly
(Superseded to 951-10413B)

Note: (Incl.135,136,138,141-146,148-152,155,160)

$187.99

$

Usually ships in 3-6 days

0

139

Troy-Bilt 710-04982

Bolt M8X54 Cylinder Head

$3.99

$

Usually ships in 3-6 days

0

140

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

141

$65.99

$

Usually ships in 3-6 days

0

142

Troy-Bilt 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

143

$65.99

$

Usually ships in 3-6 days

0

144

Troy-Bilt 951-12116

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

145

Troy-Bilt 951-12000

Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

146

Troy-Bilt 951-11629

Push Rod Guide

$8.49

$

In Stock, only 2 left!

0

147

Troy-Bilt 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

148

Troy-Bilt 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

149

Troy-Bilt 951-12175

Rocker Arm

$

$

Not available

150

Troy-Bilt 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

151

$9.49

$

In Stock, only 2 left!

0

152

Troy-Bilt 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

153

Troy-Bilt 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

154

Troy-Bilt 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, Qty 20+

0

154

Troy-Bilt 951-10342

Muffler Stud Assemlby

$9.99

$

In Stock, Qty 10

0

155

Troy-Bilt 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

156

Troy-Bilt 951-10295

Muffler Assembly
(Superseded to 951-10403)

$82.99

$

Usually ships in 3-6 days

0

157

Troy-Bilt 951-10411

Muffler Shield

$31.99

$

Usually ships in 3-6 days

0

158

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

159

Troy-Bilt 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

160

Troy-Bilt 951-11630

Cylinder Head Gasket

$12.99

$

Usually ships in 3-6 days

0

161

Troy-Bilt 715-04090

Cylinder Head Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

162

Troy-Bilt 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

163

$8.49

$

Usually ships in 3-6 days

0

164

Troy-Bilt 951-11767

Camshaft Assembly

$68.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11772

Gasket Kit - External

Note: Not shown (Incl.27,79,96,136,146,152,155)

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11770

Gasket Kit - Complete

Note: Not shown (Incl.25,27,54,72,79,96,99,134,136,152,155,160)

$

$

Not available
