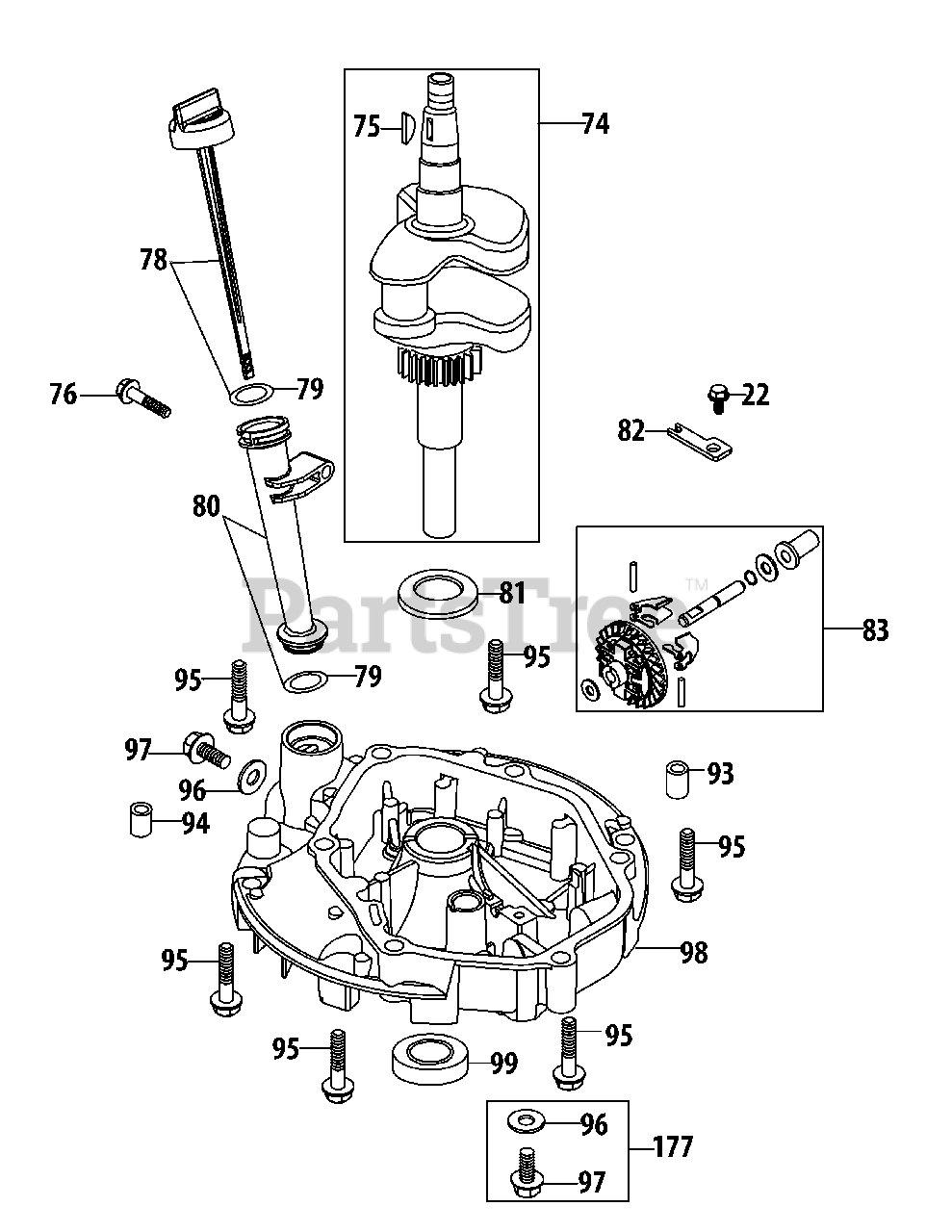

1P70L0A - Cub Cadet Engine 1P70L0A Crankshaft & Crankcase Cover Parts Diagram

Engine

1P70L0A Crankshaft & Crankcase Cover Parts Diagram

  • Title

22

Cub Cadet 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-12108

Crankshaft Assembly

$

$

Not available

75

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 710-04980

Bolt M6X35 Af Base/Brake/Dipstick

$3.99

$

In Stock, only 1 left!

0

78

Cub Cadet 951-11764

Dipstick Assembly
(Superseded to 951-11764B)

$15.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-11547

Dipstick / Oil Fill Tube O-Ring

$4.49

$

In Stock, only 1 left!

0

80

Cub Cadet 951-11765

Oil Filler Tube Assemlby
(Superseded to 951-11765A)

$19.99

$

In Stock, only 1 left!

0

81

Cub Cadet 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-11625

Governor Gear Mounting Plate

$4.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11626

Governor Gear/Shaft Assembly

$

$

Not available

93

Cub Cadet 715-04092

Crankcase Cover Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 715-04089

Crankcase Cover Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 710-04922

Bolt M8X50 Fuel Tank/P70 Crankcase

$4.49

$

Usually ships in 3-6 days

0

96

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

97

Cub Cadet 710-04906

Oil Drain Plug

$6.99

$

In Stock, only 3 left!

0

98

Cub Cadet 951-11794

Crankcase Cover

$93.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-11627

Lower Crankshaft Seal

$

$

Not available

177

Cub Cadet 951-10370

Oil Drain Plug and Washer Ass'y

$9.49

$

Usually ships in 3-6 days

0
