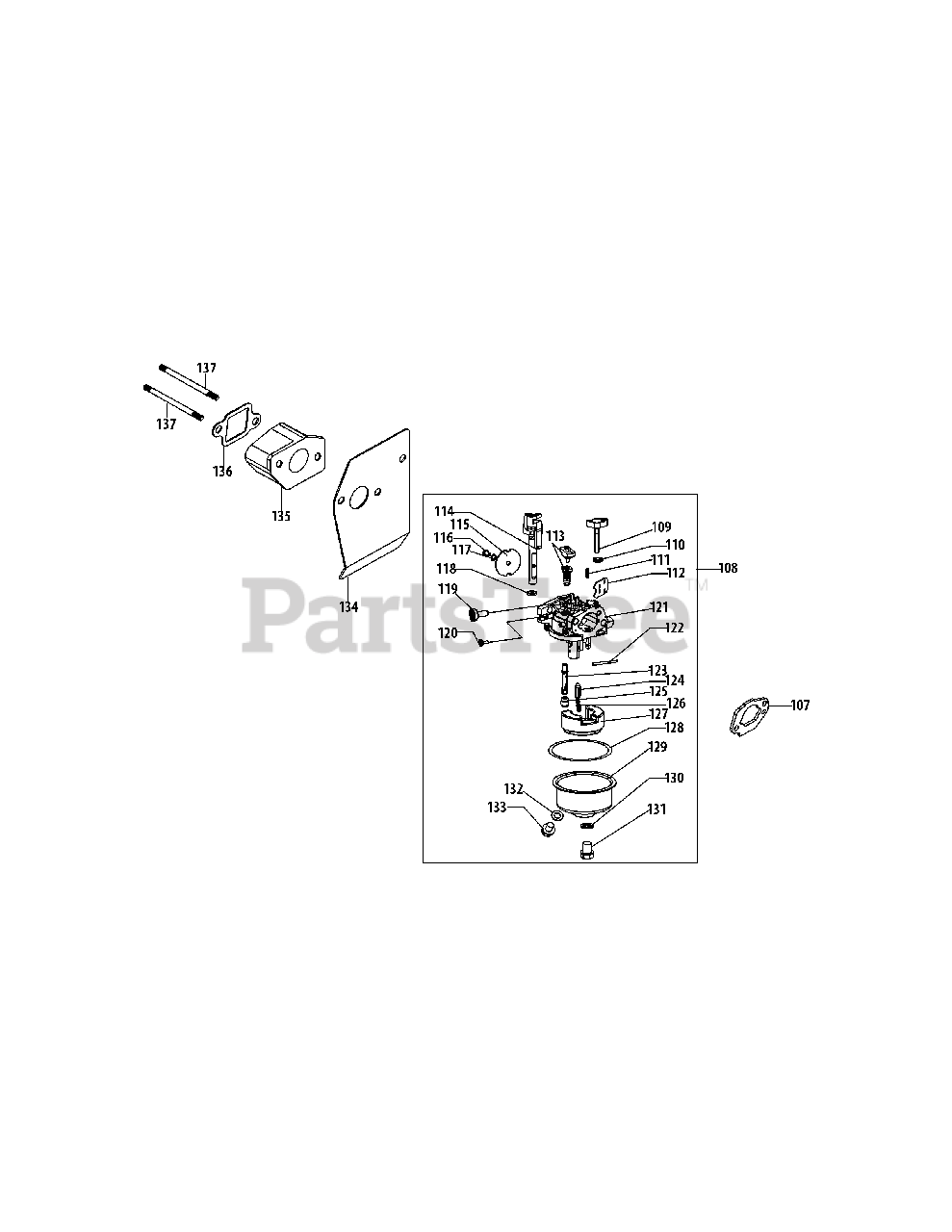

1P70L0A Carburetor Assembly Parts Diagram

  • Title
107

Cub Cadet 951-11525

Carburetor Gasket Plate

$5.49

$

Usually ships in 3-6 days

0

108

Cub Cadet 951-10929

Carburetor Assembly

$96.99

$

Usually ships in 3-6 days

0

109

Choke Shaft

$

$

Not available

110

Fiber O-Ring

$

$

Not available

111

Choke Detent Spring

$

$

Not available

112

Choke Plate

$

$

Not available

113

Idle Jet Assembly

$

$

Not available

114

Throttle Shaft

$

$

Not available

115

Throttle Plate

$

$

Not available

116

Screw M3X6 Throttle Plate

$

$

Not available

117

Lock Washer

$

$

Not available

118

Fiber O-Ring

$

$

Not available

119

Idle Speed Adjusting Screw

$

$

Not available

120

Idle Mixture Screw

$

$

Not available

121

Carburetor Body

$

$

Not available

122

Float Pin

$

$

Not available

123

Emulsion Tube

$

$

Not available

124

Needle Valve

$

$

Not available

125

Main Jet

$

$

Not available

126

Needle Valve Spring

$

$

Not available

127

Float

$

$

Not available

128

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

129

Fuel Bowl

$

$

Not available

130

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

132

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

133

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

134

Cub Cadet 951-12110

Carburetor Gasket

$4.49

$

In Stock, only 4 left!

0

135

Cub Cadet 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

136

Cub Cadet 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

137

Cub Cadet 710-04981

Carb Stud M6X113

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-12178A

Carburetor Repair Kit - Major

Note: Not shown (Incl.110,113,118,119,122-128,130,132)

$56.99

$

Usually ships in 3-6 days

0
