1P70C0A-11 - Cub Cadet Engine 1P70C0A-11 Flywheel & Shroud Parts Diagram

Engine

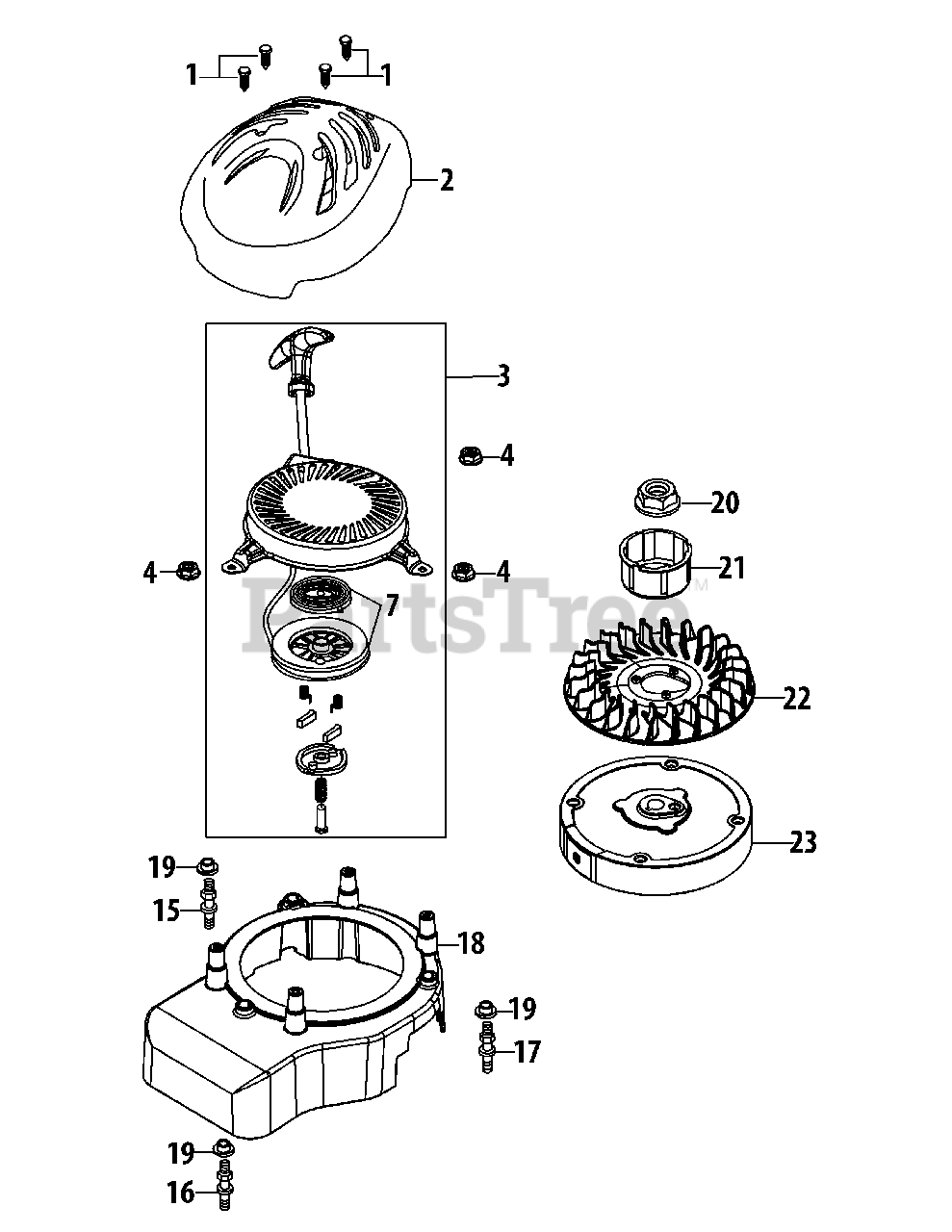

1P70C0A-11 Flywheel & Shroud Parts Diagram

  • Title

1

Cub Cadet 710-04744

Self-Tapping Bolt, #12-16 X 1.00"

$5.49

$

In Stock, Qty 11

0

2

Outer Shroud

Note: See Unit/Application Breakdown

$

$

Not available

3

Cub Cadet 951-11720

Recoil Starter Assembly
(Superseded to 951-12683)

$92.99

$

In Stock, only 4 left!

0

4

Cub Cadet 712-04212

Nut M6X10Mm Starter/Carb/Muff
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 951-11721

Recoil Spring And Pulley Assy

$46.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-04976

Shroud Stud Left/Black/Wh Zinc

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet 710-04977

Shroud Stud Front/Unmarked/Wh Zinc

$4.49

$

In Stock, Qty 5

0

17

Cub Cadet 710-04978

Shroud Stud Right/White/Wh Zinc

$3.99

$

In Stock, only 4 left!

0

18

Cub Cadet 951-10369

Inner Shroud

$53.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-05320

Spacer

$4.49

$

In Stock, only 3 left!

0

20

Cub Cadet 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 951-12176

Starter Cup

$

$

Not available

22

Cub Cadet 951-10909

Cooling Fan
(Superseded to 951-10934)

$23.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-10935

Flywheel

$

$

Not available
