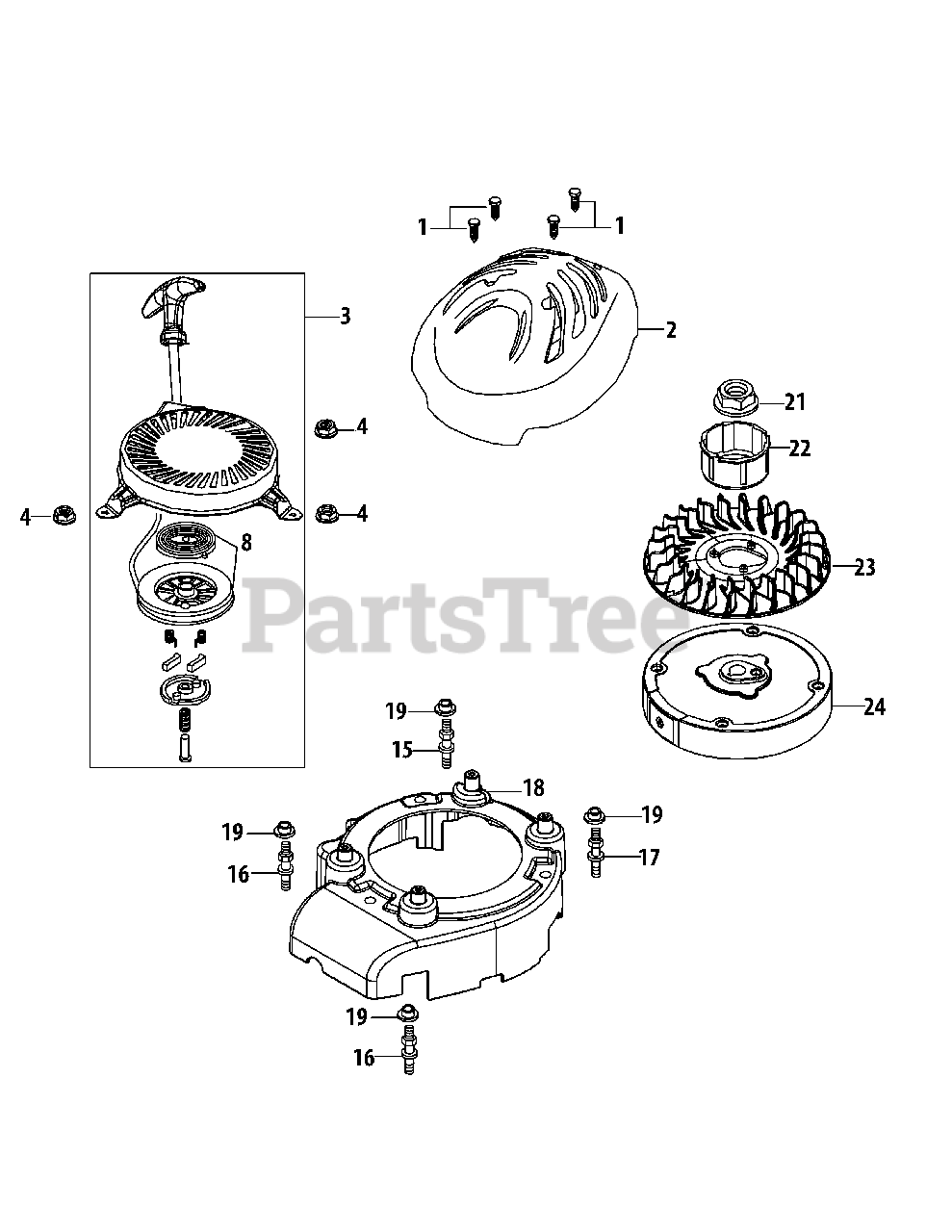

1P65TU - Cub Cadet Engine 1P65TU Flywheel & Shroud Parts Diagram

Engine

1P65TU Flywheel & Shroud Parts Diagram

  • Title

1

Cub Cadet 710-04744

Screw, #12-16 X 1.00"

$5.49

$

In Stock, Qty 11

0

2

Outer Shroud (Model Specific)

Note: Refer to unit breakdown

$

$

Not available

3

Cub Cadet 951-12683

Recoil Starter Assembly

$92.99

$

In Stock, only 4 left!

0

4

Cub Cadet 712-04212

Nut M6X10Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 951-11721

Starter Pulley

$46.99

$

In Stock, only 1 left!

0

15

Cub Cadet 751-11722

Stud Left/Black/Ye Zinc

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-11723

Stud Front/Unmarked/Ye Zinc

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 951-11724

Stud Right/White/Ye Zinc

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-10336

Inner Shroud

$49.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-12879

Inner Shroud Assy (Incl.17)

$28.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-05320

Engine Shroud Spacer

$4.49

$

In Stock, only 3 left!

0

21

Cub Cadet 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

22

Cub Cadet 951-12161

Starter Cup

$16.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 951-11042

Flywheel

$104.99

$

Usually ships in 3-6 days

0
