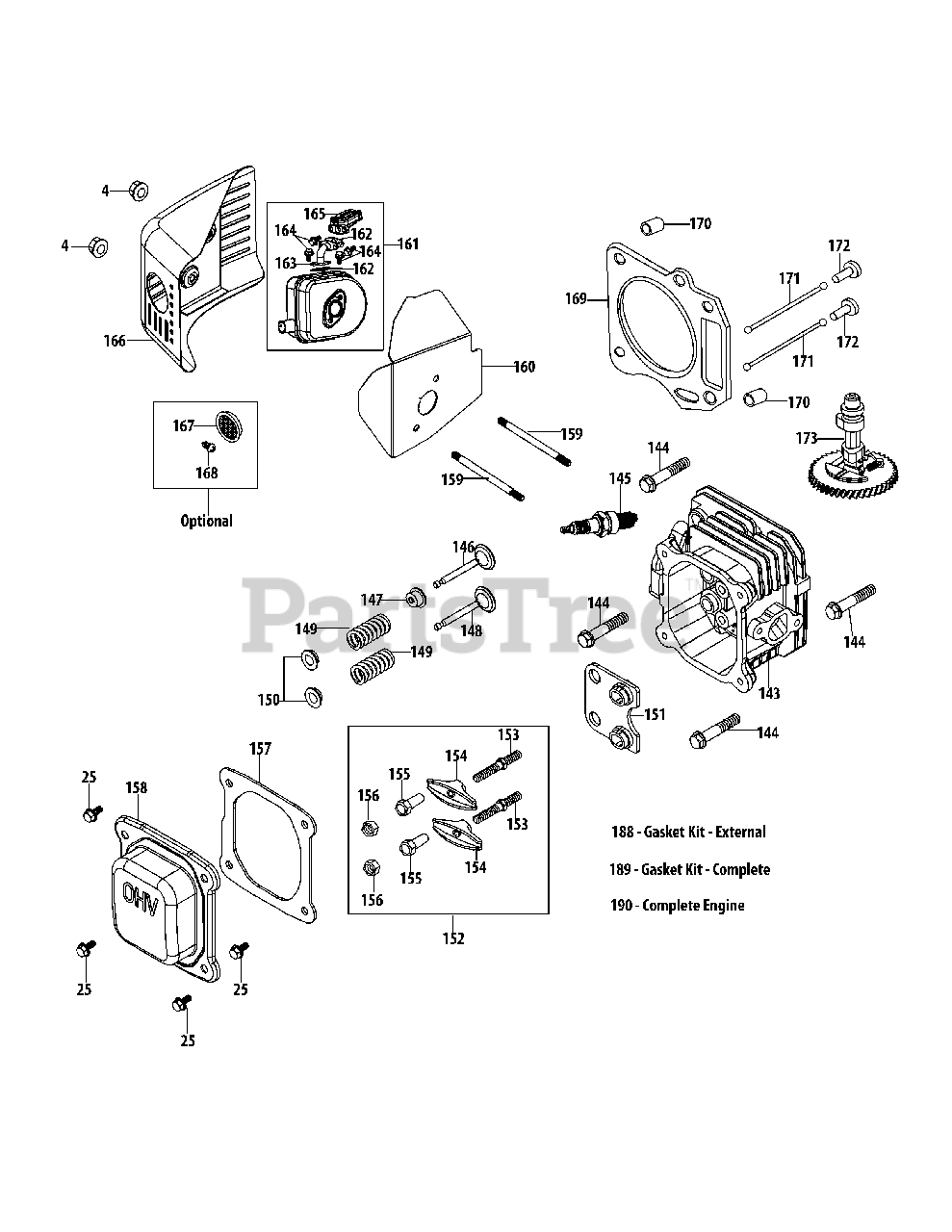

1P65TU - Cub Cadet Engine 1P65TU Cylinder Head Parts Diagram

Engine

1P65TU Cylinder Head Parts Diagram

  • Title

4

Cub Cadet 712-04212

Nut M6X10Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

25

Cub Cadet 710-04916

Bolt M6X14

$4.49

$

Usually ships in 3-6 days

0

143

Cub Cadet 951-10846A

Cylinder Head Service Kit

Note: (Incl.144,147,157,169)

$19.99

$

Usually ships in 3-6 days

0

143

Cub Cadet 951-11746

Cylinder Head Assembly

Note: (Incl.140,141,143,146-151,153-157,160,169)

$157.99

$

Usually ships in 3-6 days

0

144

Cub Cadet 710-04982

Bolt M8X54

$3.99

$

Usually ships in 3-6 days

0

145

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

146

Cub Cadet 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

147

Cub Cadet 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

148

Cub Cadet 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

149

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

150

Cub Cadet 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

151

Cub Cadet 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

152

Cub Cadet 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

153

Cub Cadet 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

154

Cub Cadet 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

155

Cub Cadet 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

156

Cub Cadet 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

157

Cub Cadet 951-11551

Valve Cover Gasket

$10.99

$

In Stock, only 4 left!

0

158

Cub Cadet 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

159

Cub Cadet 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, only 2 left!

0

159

Cub Cadet 951-10342

Muffler Stud Ass'Y

$9.99

$

In Stock, only 2 left!

0

160

Cub Cadet 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

161

Cub Cadet 951-12740

Muffler Assembly

$81.99

$

In Stock, only 1 left!

0

162

Cub Cadet 951-12743

Secondary Air Valve Gasket

$5.99

$

Usually ships in 3-6 days

0

163

Cub Cadet 951-12742

Secondary Air Tube

$6.99

$

Usually ships in 3-6 days

0

164

Cub Cadet 710-05434

Bolt M6×12 Secondary Air Tube/Valve

$3.49

$

Usually ships in 3-6 days

0

165

Cub Cadet 951-12865

Secondary Air Valve

$16.99

$

Usually ships in 3-6 days

0

166

Cub Cadet 951-12744

Muffler Shield

$28.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

168

Cub Cadet 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

169

Cub Cadet 951-11555

Cylinder Head Gasket

$11.99

$

Usually ships in 3-6 days

0

170

Cub Cadet 715-04108

Cylinder Head Dowel Pin 10×16

$4.49

$

In Stock, only 1 left!

0

171

Cub Cadet 951-10314

Push Rod Kit

$17.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

173

Cub Cadet 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

188

Cub Cadet 951-12449

Gasket Kit - External

Note: (Incl.27,83,99,139-141,157,160)

$

$

Not available

189

Cub Cadet 951-12448

Gasket Kit - Complete

Note: (Incl.27,28,68,74,83,99,103,139-141,157,160,169)

$58.99

$

Usually ships in 3-6 days

0

190

Cub Cadet 952Z1P65TU

Complete Engine

$554.99

$

Usually ships in 3-6 days

0
