1P65TGA - Troy-Bilt Engine 1P65TGA Cylinder Head Parts Diagram

Engine

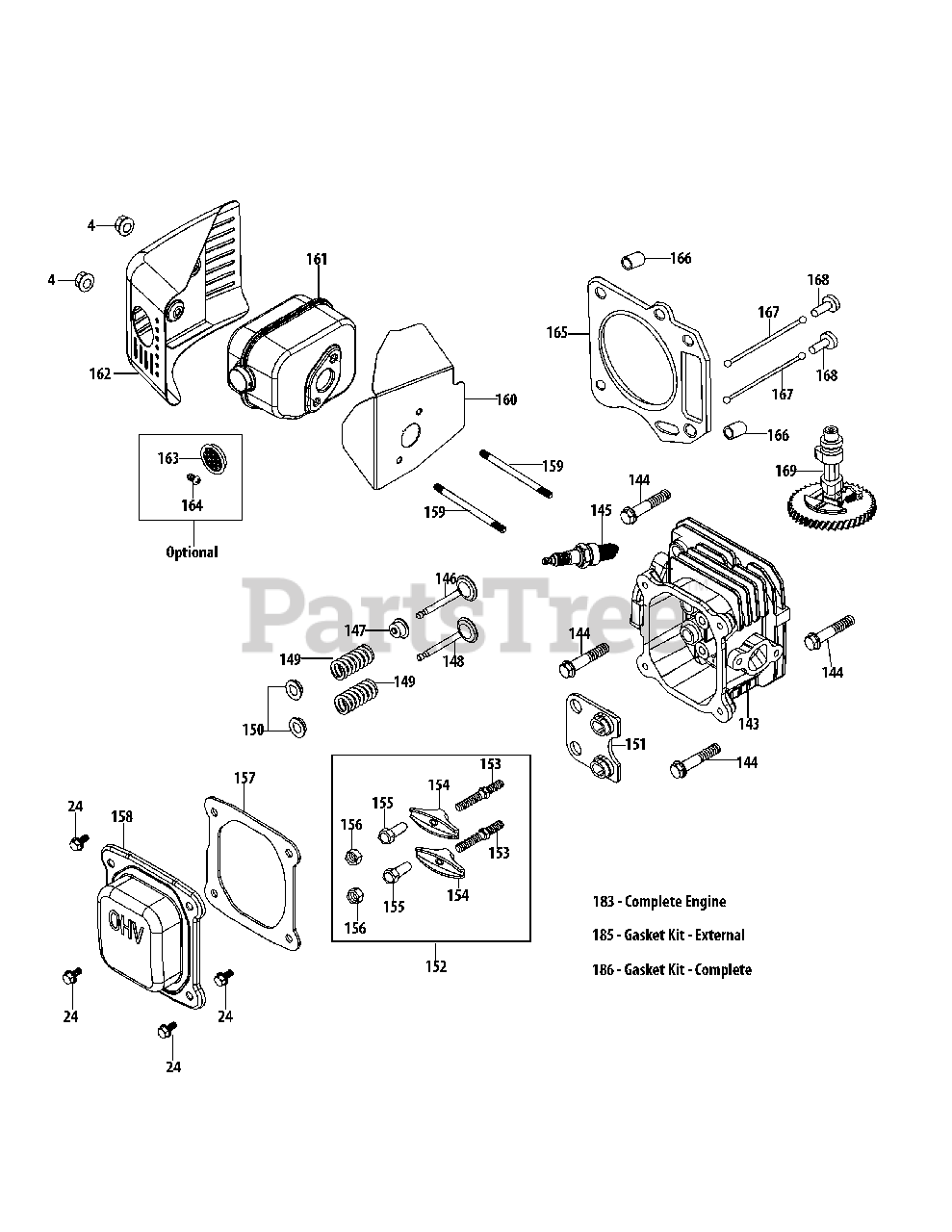

1P65TGA Cylinder Head Parts Diagram

  • Title

4

Troy-Bilt 712-04212

Nut M6X10Mm Starter/Carb/Muff
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

143

Troy-Bilt 951-10846A

Cylinder Head Svc Kit

Note: (Incl.114,147,156,165)

$19.99

$

Usually ships in 3-6 days

0

143

Troy-Bilt 951-11746

Cylinder Head

Note: (Incl.140,141,143,145-150,152-156,160,165)

$157.99

$

Usually ships in 3-6 days

0

144

Troy-Bilt 710-04982

Bolt M8X54 Cylinder Head

$3.99

$

Usually ships in 3-6 days

0

145

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

146

Troy-Bilt 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

147

Troy-Bilt 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

148

Troy-Bilt 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

149

Troy-Bilt 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

150

Troy-Bilt 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

151

Troy-Bilt 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

152

Troy-Bilt 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

153

Troy-Bilt 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

154

Troy-Bilt 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

155

Troy-Bilt 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

156

Troy-Bilt 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

157

Troy-Bilt 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

158

Troy-Bilt 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

159

Troy-Bilt 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, Qty 20+

0

159

Troy-Bilt 951-10342

Muffler Stud Ass'Y

$9.99

$

In Stock, Qty 10

0

160

Troy-Bilt 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

161

Troy-Bilt 951-10403

Muffler Assembly

$82.99

$

Usually ships in 3-6 days

0

162

Troy-Bilt 951-11791

Muffler Shield

$

$

Not available

163

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

164

Troy-Bilt 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

165

Troy-Bilt 951-11555

Cylinder Head Gasket

$11.99

$

Usually ships in 3-6 days

0

166

Troy-Bilt 715-04090

Cylinder Head Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

167

Troy-Bilt 951-10314

Push Rod Kit

$17.99

$

Usually ships in 3-6 days

0

168

Troy-Bilt 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

169

Troy-Bilt 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

183

Troy-Bilt 952Z1P65TGA

Complete Engine
(Superseded to 952Z1P65TU)

$554.99

$

Usually ships in 3-6 days

0

185

Troy-Bilt 951-12449

Gasket Kit - External

Note: (Incl.26,83,99,139-141,157,160)

$

$

Not available

186

Troy-Bilt 951-12448

Gasket Kit - Complete

Note: (Incl.26,27,68,74,83,99,103,139-141,157,160,165)

$58.99

$

Usually ships in 3-6 days

0
