1P65B0C - Troy-Bilt Engine 1P65B0C Carburetor Parts Diagram

Engine

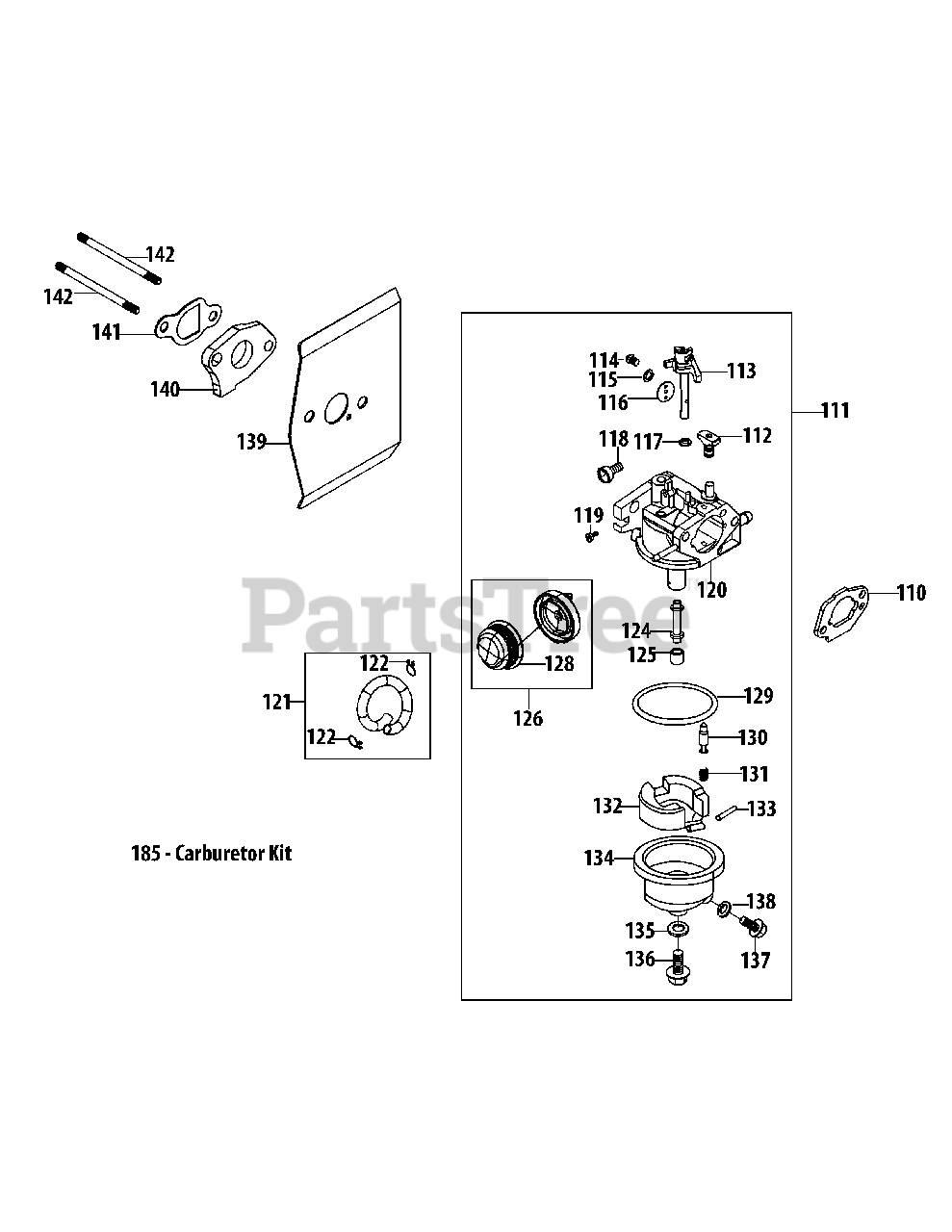

1P65B0C Carburetor Parts Diagram

  • Title
110

Troy-Bilt 951-11525

Carburetor Gasket Plate

$5.49

$

In Stock, only 1 left!

0

111

Troy-Bilt 951-11707

Carburetor Assembly

$97.99

$

In Stock, only 3 left!

0

112

Idle Jet Assembly

$

$

Not available

113

Throttle Shaft

$

$

Not available

114

Screw M3X6 Throttle Plate

$

$

Not available

115

Throttle Plate Lock Washer

$

$

Not available

116

Throttle Plate

$

$

Not available

117

Throttle Shaft Fiber O-Ring

$

$

Not available

118

Idle Speed Adjusting Screw

$

$

Not available

119

Idle Mixture Screw

$

$

Not available

120

Carburetor Body

$

$

Not available

121

Troy-Bilt 951-11736

Primer Hose Assembly

$5.49

$

In Stock, only 1 left!

0

122

Troy-Bilt 723-04093

Primer Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

124

Emulsion Tube

$

$

Not available

125

Main Jet

$

$

Not available

126

Troy-Bilt 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 20+

0

128

Troy-Bilt 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

129

Troy-Bilt 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

130

Needle Valve

$

$

Not available

131

Needle Valve Spring

$

$

Not available

132

Float

$

$

Not available

133

Float Pin

$

$

Not available

134

Fuel Bowl

$

$

Not available

135

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

136

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

137

Troy-Bilt 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

138

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

139

Troy-Bilt 951-11737

Carburetor Gasket

$5.99

$

In Stock, Qty 5

0

140

Troy-Bilt 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

$5.49

$

In Stock, only 1 left!

0

141

Troy-Bilt 951-11528

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 7

0

142

Troy-Bilt 710-05093

Carb Stud M6X92

$4.49

$

In Stock, Qty 12

0

185

Troy-Bilt 951-12681

Carburetor Repair Kit - Major
(Superseded to 951-14236)

Note: (Incl.112,117,118,124,125,129-133,135,138)

$58.99

$

Usually ships in 3-6 days

0
