1P61N0 - MTD Engine Engine Assembly 1P61N0 Parts Diagram

Engine

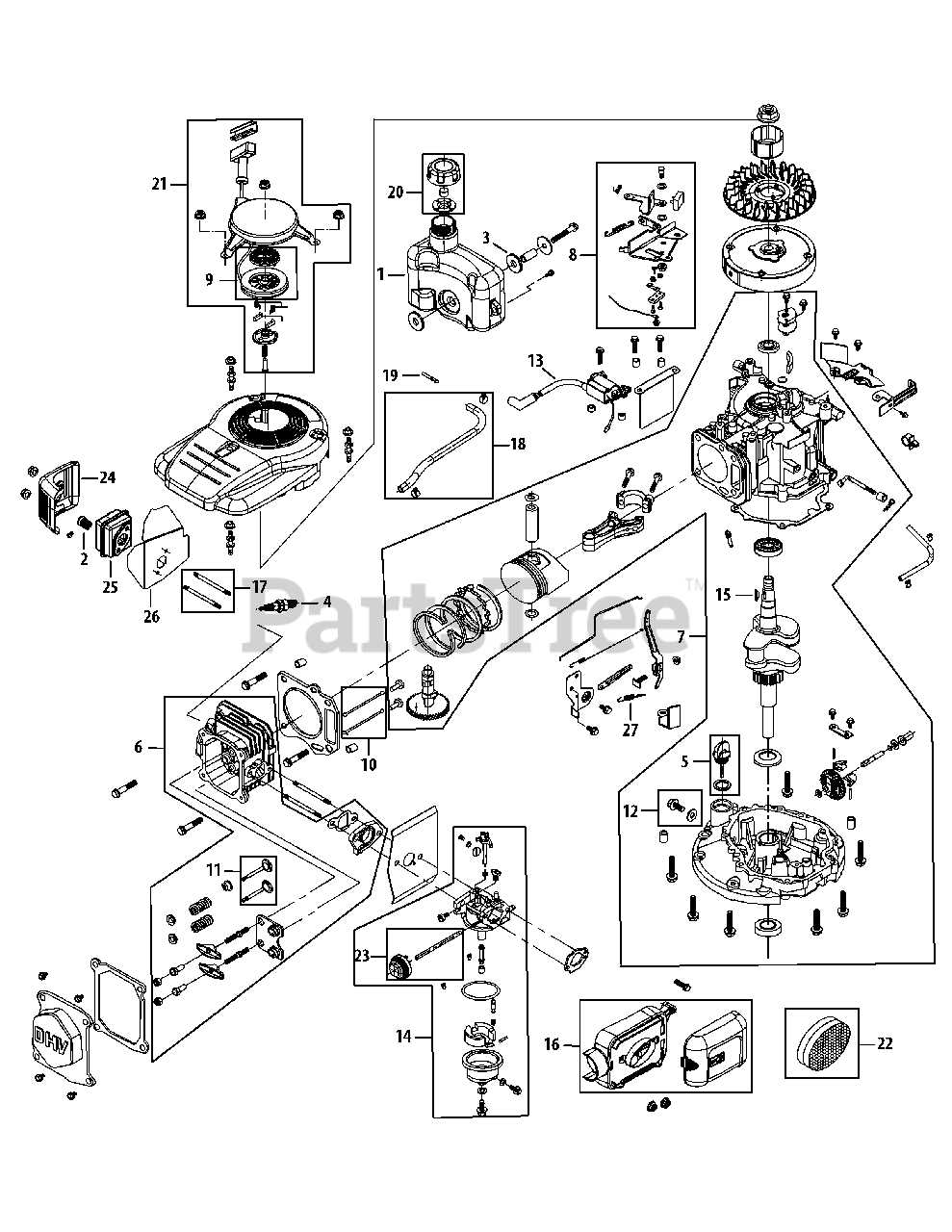

Engine Assembly 1P61N0 Parts Diagram

  • Title

1

MTD 951-10337

Fuel Tank

$60.99

$

Usually ships in 3-6 days

0

2

MTD 951-10737

Spark Arrestor

$

$

Not available

3

MTD 951-10335

Rubber Fuel Tank Mounting Washer

$5.99

$

Usually ships in 3-6 days

0

4

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

5

MTD 951-10617

Dipstick Assembly

$17.99

$

Usually ships in 3-6 days

0

6

MTD 951-10743

Cylinder Head Assembly

$133.99

$

Usually ships in 3-6 days

0

7

MTD 951-10742

Short Block Assembly
(Superseded to 951-11862)

$

$

Not available

8

MTD 951-10740

Stop Switch and Brake Assembly

$

$

Not available

9

MTD 951-10319

Recoil Spring and Pulley Assembly

$47.99

$

In Stock, only 3 left!

0

10

MTD 951-10314

Push Rod Kit

$17.99

$

Usually ships in 3-6 days

0

11

MTD 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

12

MTD 951-10370

Oil Drain Plug and Washer Assembly

$9.49

$

Usually ships in 3-6 days

0

13

MTD 951-10937

Ignition Coil

$

$

Not available

14

MTD 951-10736

Carburetor Assembly

$81.99

$

Usually ships in 3-6 days

0

15

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 9

0

16

MTD 951-10739

Air Cleaner Housing Assembly Complete

$39.99

$

In Stock, only 3 left!

0

17

MTD 951-10747

Muffler Stud Assembly

$

$

Not available

18

MTD 951-10363

Fuel Line Kit - Inc. hose & clamps

$28.99

$

In Stock, only 2 left!

0

19

MTD 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

MTD 951-10300

Fuel Cap Assembly

$11.99

$

In Stock, Qty 10

0

21

MTD 951-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$69.99

$

In Stock, Qty 8

0

22

MTD 951-10732

Air Filter

$12.99

$

In Stock, only 4 left!

0

23

MTD 951-10814

Primer Assembly
(Superseded to 951-10814A)

$17.99

$

Usually ships in 3-6 days

0

24

MTD 951-10735

Muffler Shield
(Superseded to 951-11743)

$

$

Not available

25

MTD 951-10734

Muffler Assembly
(Superseded to 951-11742)

$76.99

$

Usually ships in 3-6 days

0

26

MTD 951-10741

Muffler Gasket /Heat Shield

$

$

Not available

27

MTD 951-10733

Governor Return Spring

$5.99

$

Usually ships in 3-6 days

0

MTD 951-10744

Cylinder Head Service Kit

Note: Not shown

$

$

Not available

MTD 951-10738

Carburetor Kit - Major

Note: Not shown, (Inc. Bowl Gasket, Float, Dust Seals, Main Jet, Pilot Screw, Idle Speed Adjusting Screw, Needle Valve Spring, Float Pin, Fuel Cup Gasket, Fuel Drain Plug Gasket)

$24.99

$

Usually ships in 3-6 days

0

MTD 951-10746

Gasket Kit - Complete
(Superseded to 951-10629)

Note: Not shown, (Inc.Upper & Lower Crankcase Seal, Governor Shaft Seal, Sump Gasket, Cylinder Head Gasket, Breather Mesh Screen, Breather Gasket, Valve Cover Gasket, Carburetor to Insulator Gasket, Carburetor Insulator Plate, Muffler Gasket, Crankcase Drain Bolt Washer, Dipstick O-Ring)

$

$

Not available

MTD 951-10745

Gasket Kit - External
(Superseded to 951-10885)

Note: Not shown, (Inc. Breather Gasket, Valve Cover Gasket, Carburetor to Insulator Gasket, Carburetor Insulator Plate, Muffler Gasket, Crankcase Drain Bolt Washer, Dipstick O-Ring)

$34.99

$

Usually ships in 3-6 days

0

MTD 952Z1P61N0

Engine - Complete

Note: Not shown

$

$

Not available
