1P57RT - MTD 99cc Engine 1P57RT General Assembly Parts Diagram

99cc Engine

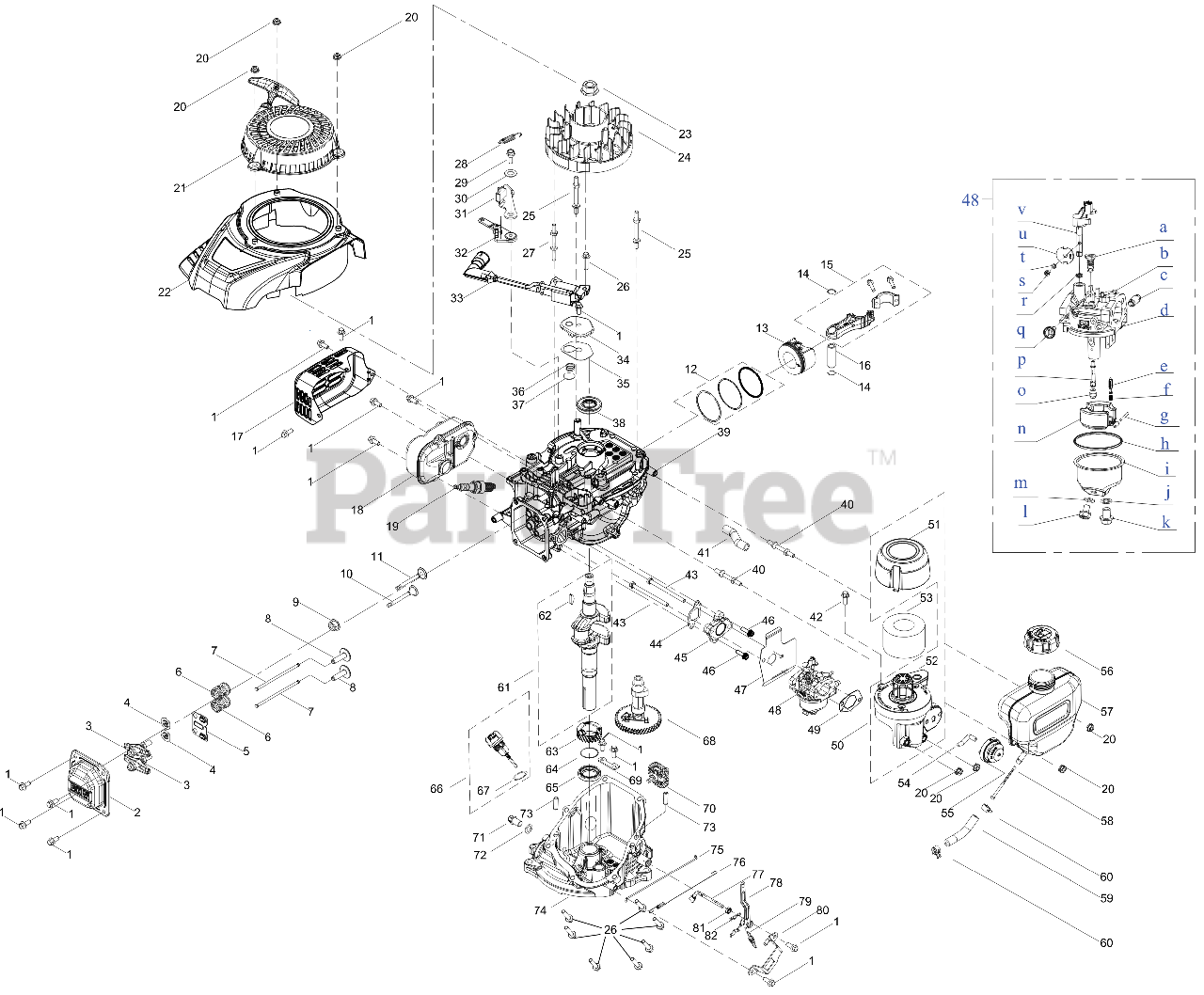

1P57RT General Assembly Parts Diagram

  • Title

1

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

MTD 751P15154A

VALVE COVER

$5.49

$

Usually ships in 3-6 days

0

3

MTD 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

4

MTD 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

5

MTD 751-15178

PUSH ROD GUIDE
(Superseded to 751P15178)

$1.49

$

Usually ships in 3-6 days

0

6

MTD 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

7

MTD 751-15177

PUSH ROD
(Superseded to 751P15177)

$0.99

$

Usually ships in 3-6 days

0

8

MTD 951-11607

TAPPET (LIFTER)

$8.49

$

Usually ships in 3-6 days

0

9

MTD 921-04237

INTAKE VALVE SEAL
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

10

MTD 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

11

MTD 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

12

MTD 751-15244

PISTON RING SET
(Superseded to 751P15244)

$5.49

$

Usually ships in 3-6 days

0

13

MTD 751-15181

PISTON
(Superseded to 751P15181)

$14.99

$

Usually ships in 3-6 days

0

14

MTD 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

15

MTD 651-05335

CONNECTING ROD
(Superseded to 651P05335)

$7.99

$

Usually ships in 3-6 days

0

16

MTD 751-15184

PISTON PIN
(Superseded to 751P15184)

$2.99

$

Usually ships in 3-6 days

0

17

MTD 751P15133A

MUFFLER GUARD

$11.99

$

Usually ships in 3-6 days

0

18

MTD 751P15131

MUFFLER

$15.99

$

Usually ships in 3-6 days

0

19

MTD 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

20

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

21

MTD 951-05320

STARTER RECOIL ASSEMBLY
(Superseded to 951-05320A)

$65.99

$

In Stock, only 1 left!

0

22

MTD 631-05345

ENGINE SHROUD
(Superseded to 631P05345)

$8.99

$

Usually ships in 3-6 days

0

23

MTD 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

24

MTD 925-06190

FLYWHEEL
(Superseded to 925-06190A)

$96.99

$

Usually ships in 3-6 days

0

25

MTD 710-06208

STUD M6 x 75

$6.49

$

Usually ships in 3-6 days

0

26

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

27

MTD 710-06209

STUD M6 x 73

$6.49

$

Usually ships in 3-6 days

0

28

MTD 932-05379

ENGINE BRAKE SPRING

$4.99

$

Usually ships in 3-6 days

0

29

MTD 911-06531

ENGINE BRAKE PIN M6-1.0 MM

$35.99

$

Usually ships in 3-6 days

0

30

MTD 936-05145

FLAT WASHER 10x20x1.0 MM

$4.99

$

Usually ships in 3-6 days

0

31

MTD 951-15098

ENGINE BRAKE ARM

$8.49

$

Usually ships in 3-6 days

0

32

MTD 651-05306

ENGINE BRAKE LOWER BRACKET
(Superseded to 951-05306)

$59.99

$

Usually ships in 3-6 days

0

33

MTD 925-06488

IGNITION COIL

$35.99

$

In Stock, only 1 left!

0

34

MTD 708-05172

BREATHER COVER PLATE

$1.49

$

Usually ships in 3-6 days

0

35

MTD 721-04830

BREATHER GASKET

$1.49

$

Usually ships in 3-6 days

0

36

MTD 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

37

MTD 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

38

MTD 921-04700

UPPER CRANKSHAFT SEAL

$10.99

$

Usually ships in 3-6 days

0

39

MTD 751-15127A

CRANKCASE
(Superseded to 751P15127A)

$87.99

$

Usually ships in 3-6 days

0

40

MTD 751P15136

FUEL TANK MOUNTING STUD M6X59.5

$1.49

$

Usually ships in 3-6 days

0

41

MTD 735P05144

BREATHER HOSE

$0.99

$

In Stock, only 1 left!

0

42

MTD 710-05191

SCREW M6-1 x 16 CL8.8
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

43

MTD 710-06220

BOLT M6X80

$0.99

$

Usually ships in 3-6 days

0

44

MTD 721-04833

CARBURETOR INSULATION GASKET
(Superseded to 721-04833A)

$2.49

$

Usually ships in 3-6 days

0

45

MTD 751-15138

CARBURETOR INSULATOR
(Superseded to 751P15138A)

$4.49

$

In Stock, only 1 left!

0

46

MTD 710-06195

BOLT M6X20

$0.99

$

Usually ships in 3-6 days

0

47

MTD 721-04832

CARBURETOR GASKET
(Superseded to 721-04832A)

$2.49

$

In Stock, only 1 left!

0

48

MTD 651-05430

CARBURETOR
(Superseded to 651P05430)

$37.99

$

Usually ships in 3-6 days

0

49

MTD 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

50

MTD 951-05333

AIR FILTER ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

51

MTD 931-11695

AIR FILTER COVER
(Superseded to 931-11695A)

$3.49

$

In Stock, only 1 left!

0

52

MTD 931-05507

AIR FILTER BASE
(Superseded to 931-05507A)

$9.49

$

In Stock, only 2 left!

0

53

MTD 951-15137

AIR FILTER - FOAM
(Superseded to 951-15137A)

$9.99

$

In Stock, only 1 left!

0

53

MTD 490-200-M074

Genuine Factory Parts AIR FILTER FOAM

Note: Retail Packaged Part

$11.99

$

Usually ships in 3-6 days

0

54

MTD 735P05143

PRIMER HOSE

$0.99

$

Usually ships in 3-6 days

0

55

MTD 951-05177

VENTED PRIMER ASSEMBLY
(Superseded to 951-05177A)

$14.99

$

In Stock, only 2 left!

0

56

MTD 651P05182

FUEL CAP ASSEMBLY

$2.99

$

In Stock, Qty 12

0

57

MTD 731-11663

FUEL TANK
(Superseded to 731P11663)

$9.49

$

Usually ships in 3-6 days

0

58

MTD 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

58

MTD 490-202-M006

Genuine Factory Parts FUEL FILTER

Note: Retail Packaged Part

$6.99

$

In Stock, Qty 11

0

59

MTD 735P05142

FUEL HOSE
(Superseded to 735P05142A)

$7.49

$

Usually ships in 3-6 days

0

60

MTD 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

61

MTD 751-15754

CRANKSHAFT
(Superseded to 751P15754)

$44.99

$

Usually ships in 3-6 days

0

62

MTD 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

63

MTD 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

64

MTD 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

65

MTD 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, only 2 left!

0

66

MTD 651P05334

DIPSTICK ASSEMBLY
(Superseded to 651P05334A)

$4.49

$

Usually ships in 3-6 days

0

67

MTD 721-04839

DIPSTICK SEAL

$0.99

$

Usually ships in 3-6 days

0

68

MTD 751-15140

CAMSHAFT
(Superseded to 751P15140)

$9.99

$

Usually ships in 3-6 days

0

69

MTD 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

70

MTD 951-05336

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 951-05336A)

$8.99

$

Usually ships in 3-6 days

0

71

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, only 3 left!

0

72

MTD 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

73

MTD 715-05058

DOWEL PIN 7X20

$0.99

$

Usually ships in 3-6 days

0

74

MTD 751P15152

CRANKCASE COVER

$87.99

$

Usually ships in 3-6 days

0

75

MTD 751P15144

THROTTLE LINKAGE

$3.99

$

Usually ships in 3-6 days

0

76

MTD 732P05411

THROTTLE LINKAGE SPRING

$4.49

$

Usually ships in 3-6 days

0

77

MTD 751P15143

GOVERNOR ARM SHAFT

$1.49

$

Usually ships in 3-6 days

0

78

MTD 651P05327

GOVERNOR ARM ASSEMBLY

$2.99

$

Usually ships in 3-6 days

0

79

MTD 951-14411

GOVERNOR SPRING

$9.99

$

Usually ships in 3-6 days

0

80

MTD 708-05179

COMPONENT BRACKET

$1.99

$

Usually ships in 3-6 days

0

81

MTD 751P15150

GOVERNOR SEAL

$1.49

$

Usually ships in 3-6 days

0

82

MTD 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

a

Idle Jet Assembly

$

$

Not available

b

Primer Port

$

$

Not available

c

Fuel Inlet

$

$

Not available

d

Carburetor Body

$

$

Not available

e

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

f

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

g

Float Pin

$

$

Not available

h

MTD 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

i

MTD 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

j

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

k

MTD 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, only 4 left!

0

l

MTD 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, only 1 left!

0

m

MTD 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

n

Float

$

$

Not available

o

Main Jet

$

$

Not available

p

Emulsion Tube

$

$

Not available

q

Idle Speed Adjusting Screw

$

$

Not available

r

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

s

Screw M3×6 Throttle Plate

$

$

Not available

t

MTD 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

u

Throttle Plate

$

$

Not available

v

Throttle Shaft

$

$

Not available

MTD 752Z1P57RT

COMPLETE ENGINE

$

$

Currently unavailable
